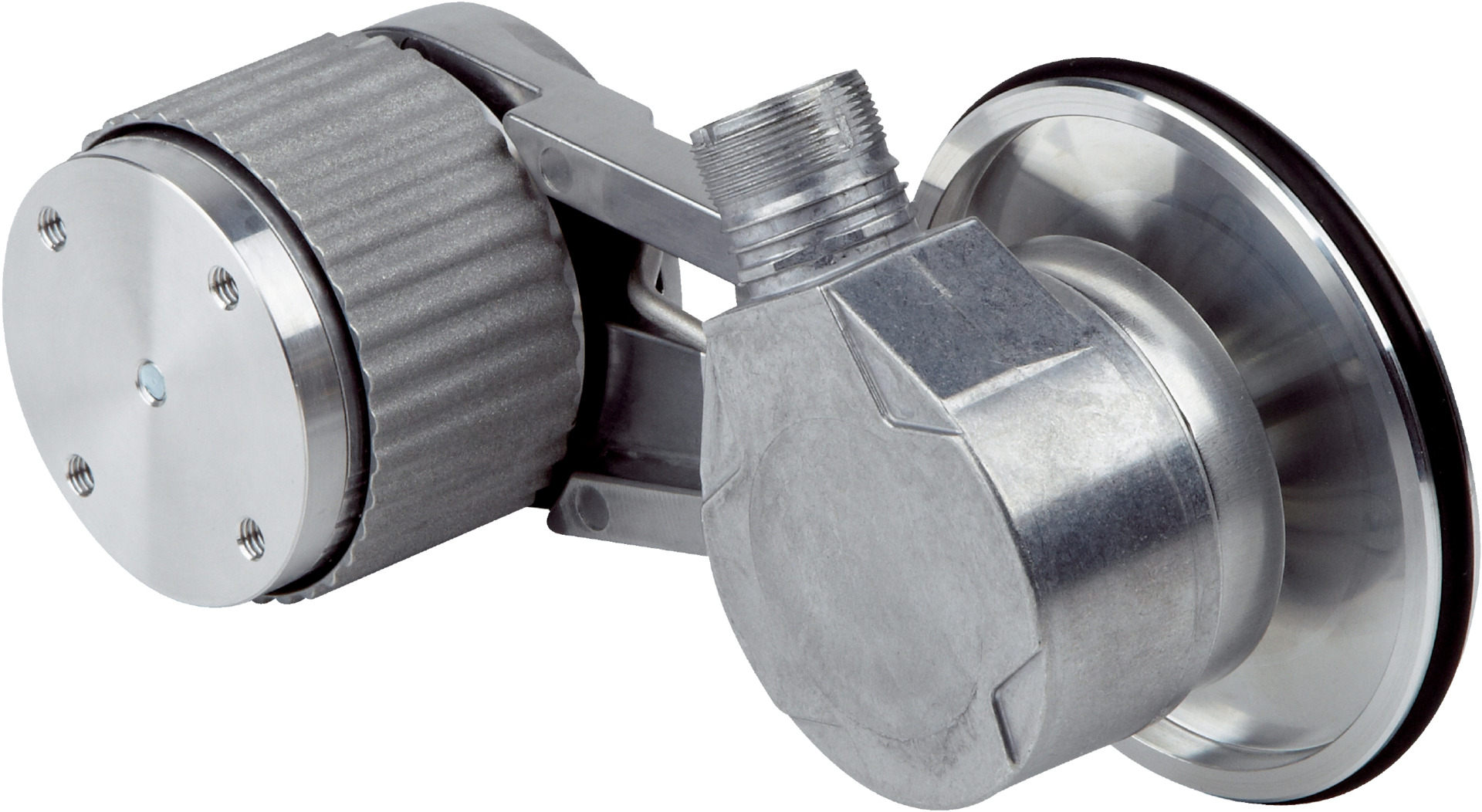

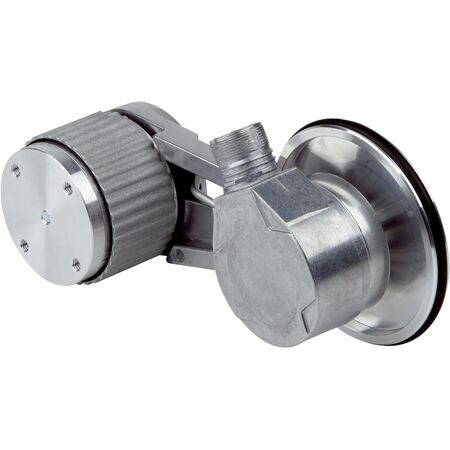

Incremental Measuring Wheel Encoder | 18,898 Pulses/Rev | 0.02 mm Resolution | Durable Polyurethane Surface | by SICK
The Incremental Measuring Wheel Encoder offers high precision with 18,898 pulses per revolution and a measuring increment of just 0.02 mm per pulse. Designed for industrial automation, this encoder is perfect for applications in material handling, packaging, and robotics. Its robust construction features a smooth polyurethane surface and stainless steel spring element, ensuring durability and reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 18,898
- Measuring increment (resolution): 0.02 mm per pulse
- Repeatability: < 0.1 mm
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 10 V to 32 V
- Short-circuit protection: Yes
- Measuring wheel circumference: 200 mm
- Measuring wheel surface: Smooth polyurethane
- Spring element material: Stainless steel
- Measuring wheel and spring arm material: Aluminum
- Start up torque: 0.5 Ncm at 20 °C
- Operating torque: 0.3 Ncm at 20 °C
- Bearing lifetime: 3.6 x 10^10 revolutions
- Minimum spring tension force: 4 N
- Max permissible working area for spring: ± 10 mm
- Service life of spring element: > 1.5 million cycles
- Mounting position: Preferably from above, from below possible
- Operating temperature range: -30 °C to +80 °C
- Storage temperature range: -40 °C to +100 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 80mm x 150mm x 120mm
- Weight: 0.5 kg
