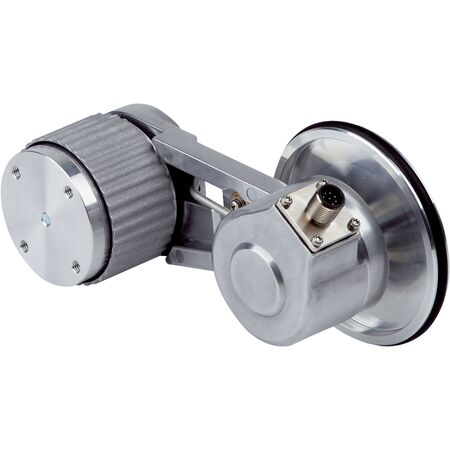

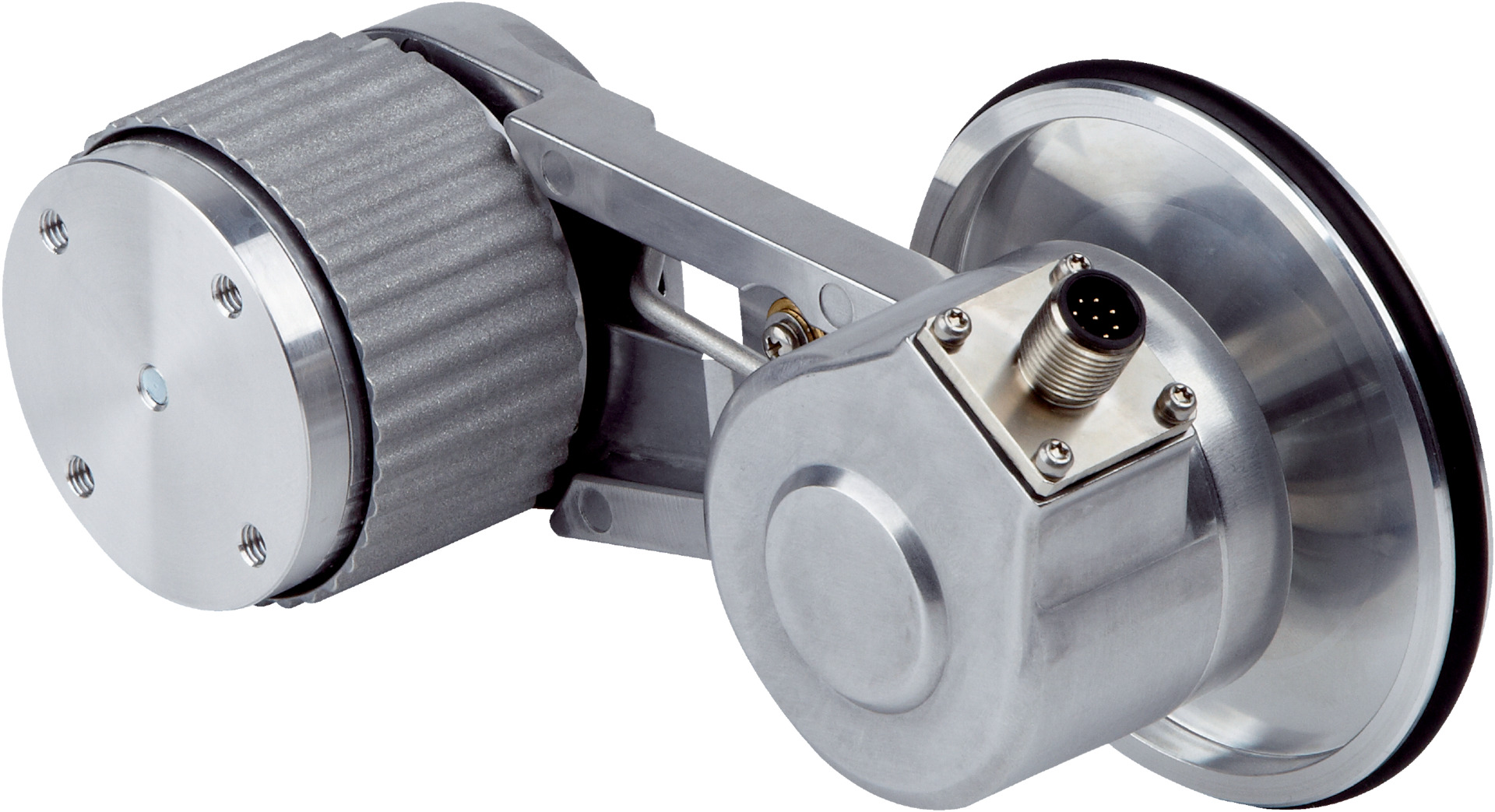

Incremental Measuring Wheel Encoder | 2000 Pulses/Rev | 0.1 mm Resolution | Stainless Steel Spring | by SICK
The Incremental Measuring Wheel Encoder delivers high precision with 2000 pulses per revolution and a repeatability of less than 0.1 mm. Designed for industrial automation, it features a robust stainless steel spring element and operates efficiently within -20 °C to +80 °C. Ideal for applications like conveyor belt measurement and robotics, this encoder ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 2,000
- Measuring increment (resolution): 0.1 mm per pulse
- Repeatability: < 0.1 mm
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6-channel
- Connection type: Male connector, M12, 8-pin, radial
- Power consumption: ≤ 1 W (without load)
- Supply voltage: 10 V to 27 V
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Measuring wheel circumference: 200 mm
- Measuring wheel surface: O-ring NBR70
- Spring element material: Stainless steel
- Measuring wheel and spring arm material: Aluminum
- Start up torque: +1.2 Ncm at 20 °C
- Operating torque: 1.1 Ncm at 20 °C
- Bearing lifetime: 3.6 x 10^9 revolutions
- Minimum spring tension force: 4 N
- Max permissible working area for spring: ± 10 mm
- Service life of spring element: > 1.5 million cycles
- Mounting position: Preferably from above, from below possible
- Operating temperature range: -20 °C to +80 °C
- Storage temperature range: -40 °C to +100 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 80mm x 150mm x 120mm
- Weight: 0.5 kg
Key Features
- High resolution with 2,000 pulses per revolution
- Repeatability of less than 0.1 mm
- Robust spring arm mechanism with stainless steel spring element
- Low power consumption of ≤ 1 W
- Reverse polarity and short-circuit protection
- Operating temperature range from -20 °C to +80 °C
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
Professional Installation Requirements
- Installation should be performed by a qualified technician or engineer familiar with incremental encoders and industrial automation systems to ensure proper mounting and electrical connections.
Applications
- Industrial automation for precise measurement of linear movement
- Conveyor belt length measurement
- Material handling systems
- Packaging machinery
- Robotics and factory automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long service life minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MWS120-12A15C02000 Incremental Measuring Wheel Encoder is available for immediate purchase, ideal for industrial automation and precise linear measurement applications.
