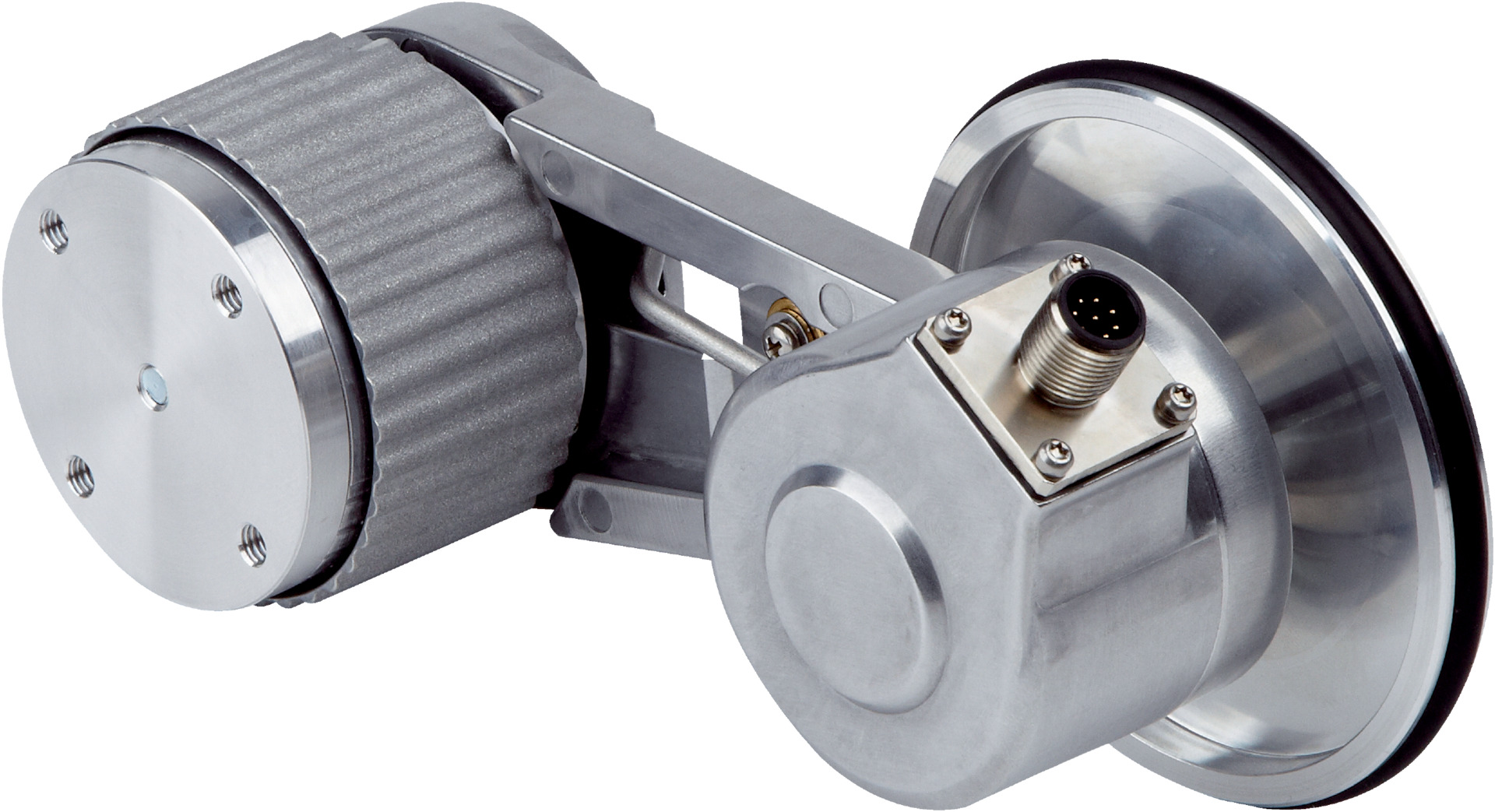

Incremental Measuring Wheel Encoder | 2000 Pulses/Rev | 0.25 mm Resolution | Studded Polyurethane Wheel | by SICK
The Incremental Measuring Wheel Encoder delivers high precision with 2000 pulses per revolution and a resolution of 0.25 mm per pulse, making it ideal for industrial automation and conveyor belt monitoring. Designed for durability, it features a studded polyurethane wheel for reliable surface contact and operates within a temperature range of -20 °C to +80 °C, ensuring consistent performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 2,000
- Measuring increment (resolution): 0.25 mm per pulse
- Repeatability: < 0.1 mm
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6-channel
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 10 V to 30 V
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Measuring wheel circumference: 500 mm
- Measuring wheel surface: Studded polyurethane
- Mounting: Measuring wheel mounted at the front
- Spring element material: Stainless steel
- Measuring wheel and spring arm material: Aluminum
- Start up torque: +1.2 Ncm at 20 °C
- Operating torque: 1.1 Ncm at 20 °C
- Bearing lifetime: 3.6 x 10^9 revolutions
- Minimum spring tension force: 4 N
- Max permissible working area for spring: ±10 mm
- Service life of spring element: >1.5 million cycles
- Mounting position: Preferably from above, from below possible
- Operating temperature range: -20 °C to +80 °C
- Storage temperature range: -40 °C to +100 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 120mm x 120mm x 120mm
- Weight: 0.5 kg
Key Features
- High resolution with 2,000 pulses per revolution
- Repeatability of less than 0.1 mm
- Studded polyurethane measuring wheel for reliable surface contact
- Robust spring arm mechanism with stainless steel spring element
- Operating temperature range from -20 °C to +80 °C
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
- Reverse polarity and short-circuit protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical wiring standards to ensure proper connection and calibration.
Applications
- Industrial automation for precise length measurement
- Conveyor belt speed and length monitoring
- Material handling and packaging machinery
- Robotics and automated guided vehicles (AGVs)
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient electronics minimize power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

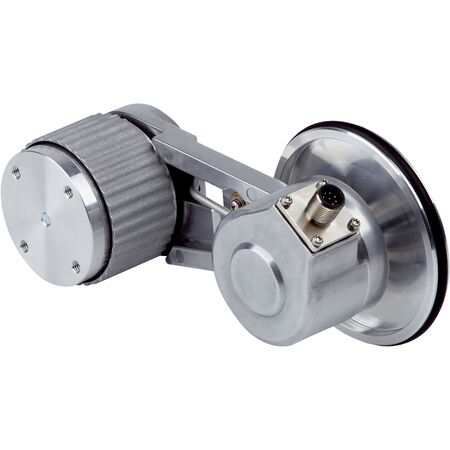

The SICK MWS120-33A12C02000 Incremental Measuring Wheel Encoder is available for immediate purchase, ideal for industrial automation and material handling applications.
