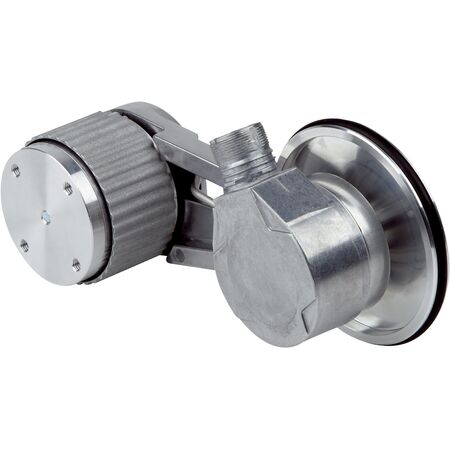

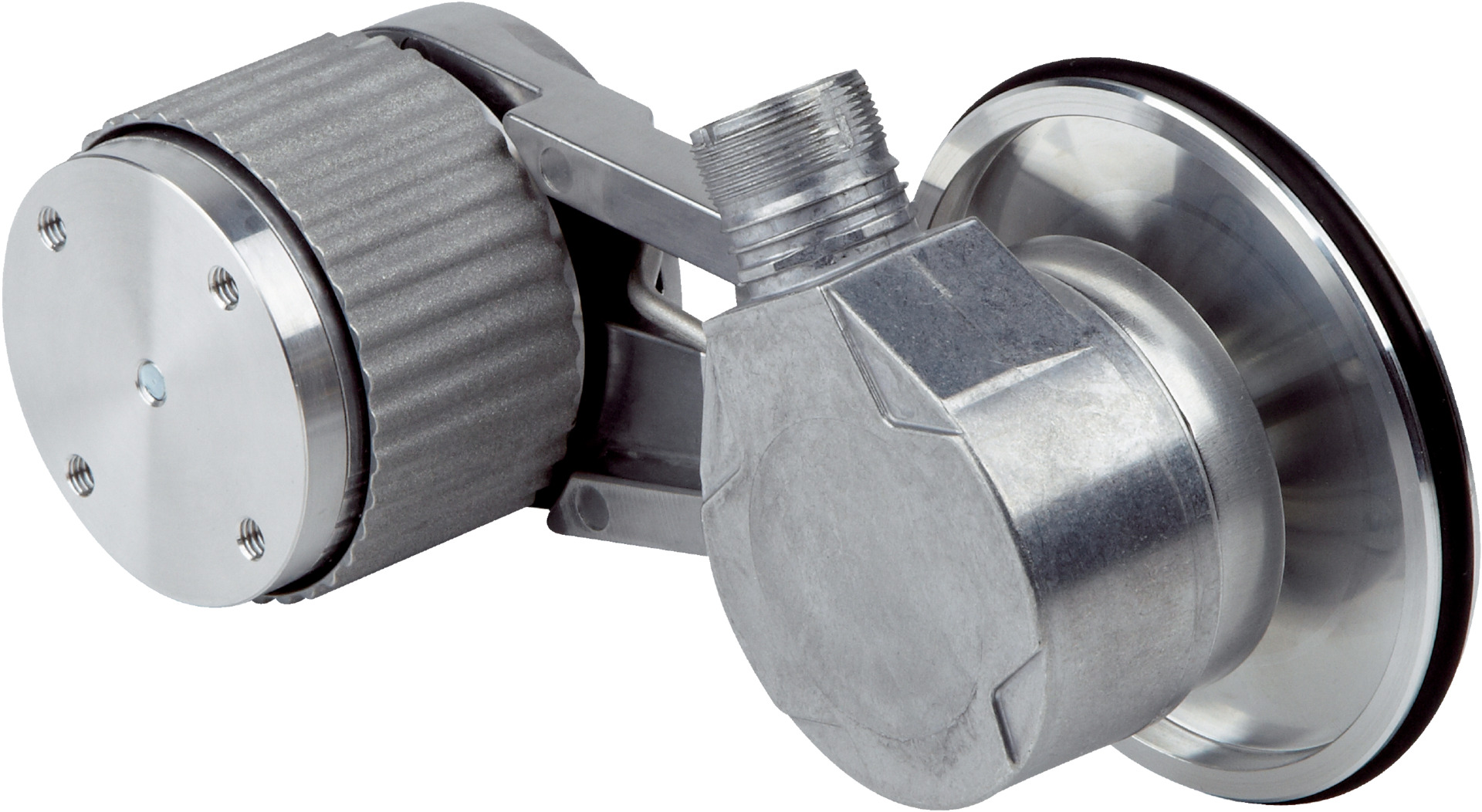

Incremental Measuring Wheel Encoder | 2048 Pulses/Rev | 0.05 mm Resolution | Robust Aluminum Design | by SICK
The Incremental Measuring Wheel Encoder offers high precision with 2048 pulses per revolution and a measuring increment of just 0.05 mm per pulse. Designed for industrial automation, this encoder is perfect for applications in material handling, packaging, and robotics. Its robust aluminum construction and low power consumption ensure reliability and efficiency in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 2,048
- Measuring increment (resolution): 0.05 mm per pulse
- Repeatability: < 0.1 mm
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6-channel
- Connection type: Male connector, M23, 12-pin, radial
- Power consumption: ≤ 0.5 W (without load)
- Supply voltage: 4.5 V to 30 V
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Measuring wheel circumference: 500 mm
- Measuring wheel surface: Smooth polyurethane
- Mounting: Measuring wheel mounted at the front
- Spring element material: Stainless steel
- Measuring wheel and spring arm material: Aluminum
- Start up torque: +1.2 Ncm at 20 °C
- Operating torque: 1.1 Ncm at 20 °C
- Bearing lifetime: 3.6 x 10^9 revolutions
- Minimum spring tension force: 4 N
- Max permissible working area for spring: ± 10 mm
- Service life of spring element: > 1.5 million cycles
- Mounting position: Preferably from above, from below possible
- Operating temperature range: -30 °C to +80 °C
- Storage temperature range: -40 °C to +100 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 120mm x 150mm x 120mm
- Weight: 0.5 kg
Key Features
- High resolution with 2,048 pulses per revolution
- Measuring increment resolution of 0.05 mm per pulse
- Repeatability less than 0.1 mm
- Robust mechanical design with aluminum measuring wheel and stainless steel spring element
- Low power consumption ≤ 0.5 W
- Wide operating temperature range from -30 °C to +80 °C
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
- Reverse polarity and short-circuit protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical wiring standards to ensure proper connection and calibration.
Applications
- Industrial automation for precise length measurement
- Material handling and conveyor systems
- Packaging and printing machinery
- Robotics and motion control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
