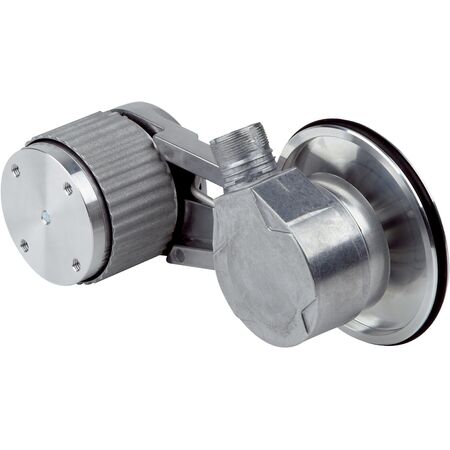

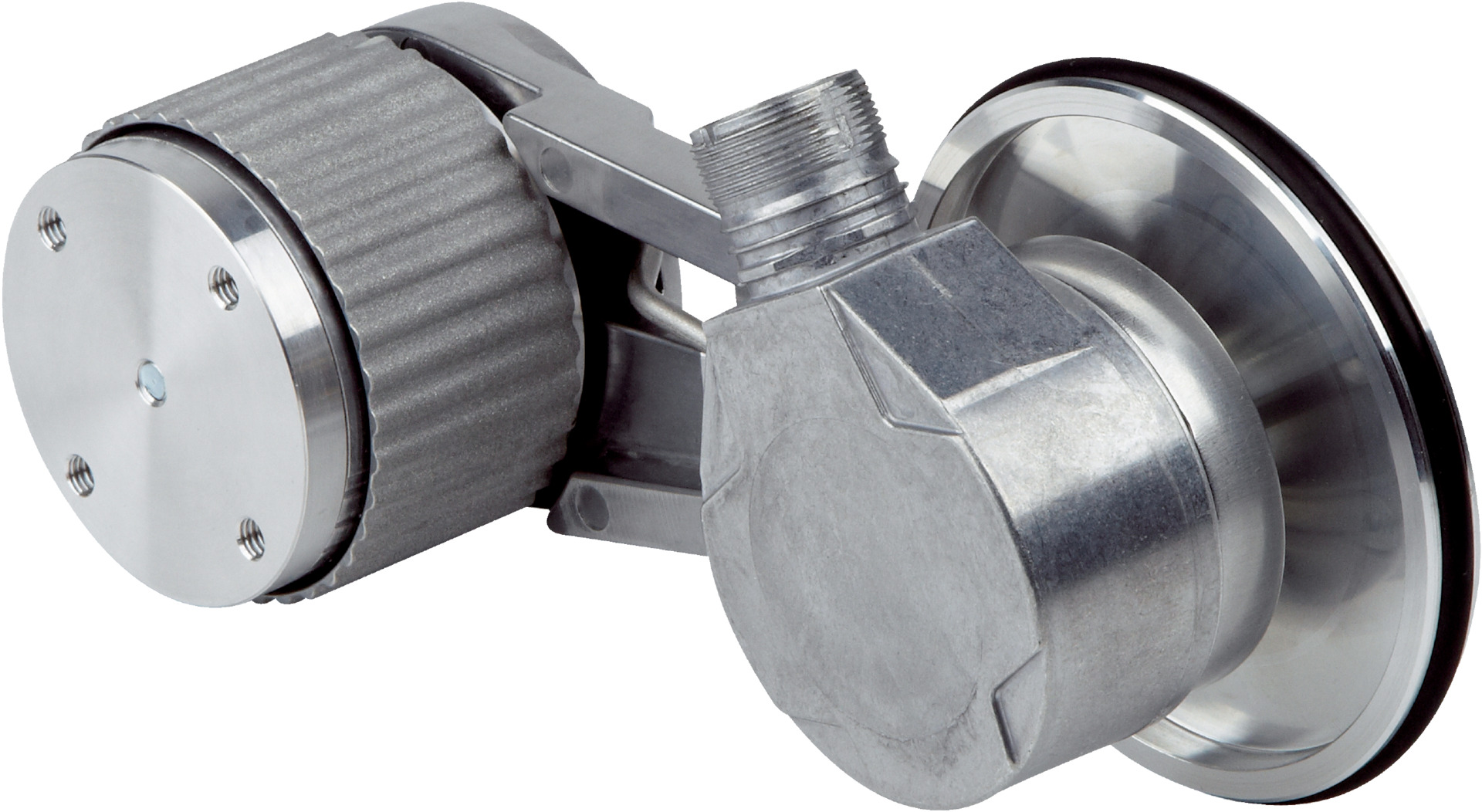

Incremental Measuring Wheel Encoder | 4096 Pulses/Rev | Smooth Plastic Surface | Durable Stainless Steel Spring | by SICK
The Incremental Measuring Wheel Encoder offers high precision with 4096 pulses per revolution and a smooth plastic measuring wheel surface. Designed for industrial automation, it ensures accurate length measurement and reliable performance in material handling systems. With a robust stainless steel spring element and low power consumption, this encoder is perfect for applications requiring precise feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 4,096
- Measuring increment (resolution): 0.07 mm per pulse
- Repeatability: < 0.1 mm
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Connection type: Male connector, M23, 12-pin, radial
- Power consumption: ≤ 0.5 W (without load)
- Supply voltage: 10 V to 32 V
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Measuring wheel circumference: 300 mm
- Measuring wheel surface: Smooth plastic
- Spring element material: Stainless steel
- Measuring wheel and spring arm material: Aluminum
- Start up torque: 0.5 Ncm at 20 °C
- Operating torque: 0.3 Ncm at 20 °C
- Bearing lifetime: 3.6 x 10^10 revolutions
- Minimum spring tension force: 4 N
- Max permissible working area for spring: ± 10 mm
- Service life of spring element: > 1.5 million cycles
- Mounting position: Preferably from above, from below possible
- Operating temperature range: –30 °C to +80 °C
- Storage temperature range: –40 °C to +100 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Dimensions (H x L x W): 120mm x 150mm x 120mm
- Weight: 0.5 kg
Key Features
- High resolution with 4,096 pulses per revolution
- Robust measuring wheel with smooth plastic surface
- Durable spring arm mechanism with stainless steel spring element
- Low power consumption ≤ 0.5 W
- Wide operating temperature range from –30 °C to +80 °C
- Reverse polarity and short-circuit protection
- 6-channel incremental HTL / Push pull communication interface
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection.
Applications
- Industrial automation for precise length measurement
- Conveyor belt speed and length monitoring
- Material handling and processing systems
- Packaging machinery requiring accurate position feedback
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's warranty policy for details.
Available Now
The SICK MWS120-24B26A04096 Incremental Measuring Wheel Encoder is available for immediate purchase, ideal for industrial automation and material handling applications.
