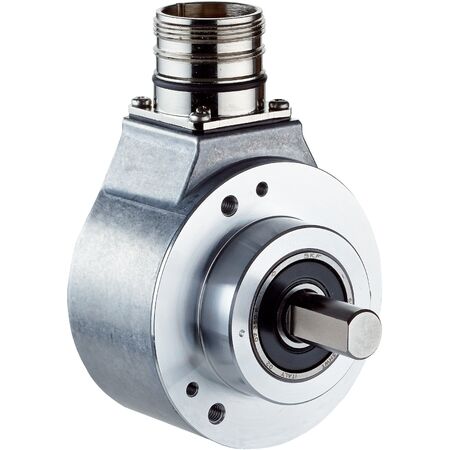

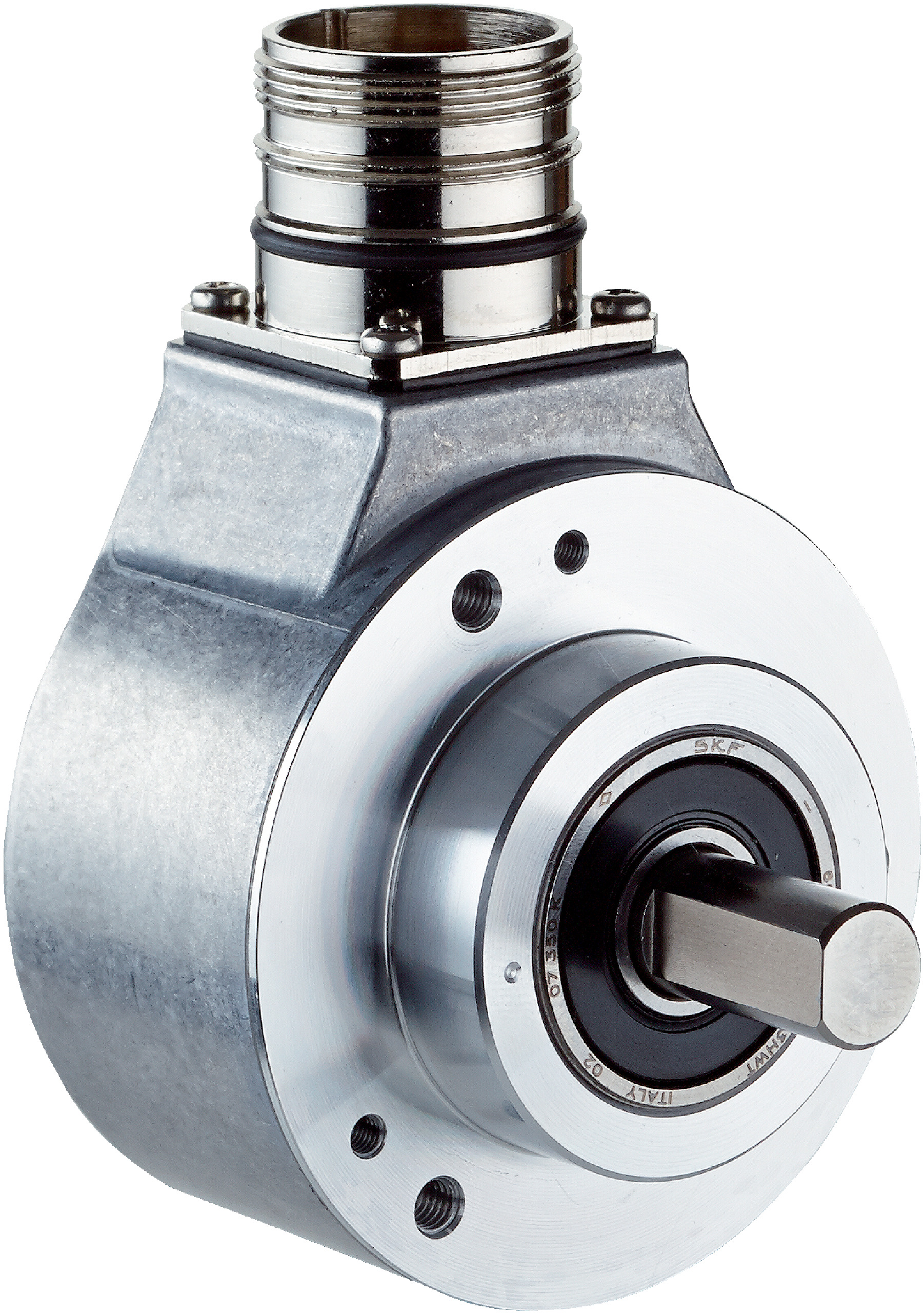

Incremental Rotary Encoder SICK DBS60E-S4EA00100 | 100 Pulses/Rev | IP67 Rated | Solid Shaft Design | by SICK
The SICK DBS60E-S4EA00100 incremental rotary encoder delivers precise position and speed measurement with 100 pulses per revolution. Designed for industrial automation, robotics, and machine tools, it features a robust aluminum housing with an IP67 rating, ensuring durability in harsh environments. With a high operating speed of up to 9,000 min⁻¹ and low power consumption, this encoder is perfect for safety-related applications in manufacturing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 100
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulse
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 1 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 10 to 27 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Flange type: Flange with 3 x M3 and 3 x M4
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Start up torque: > 1.2 Ncm at 20°C
- Operating torque: 1.1 Ncm at 20°C
- Permissible shaft loading: 100 N radial, 50 N axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 33 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.3 kg
Key Features
- Incremental communication interface with HTL / Push pull signals
- 6-channel output with 100 pulses per revolution
- Solid shaft design with 10 mm diameter and flat
- High operating speed up to 9,000 min⁻¹
- Robust aluminum housing with IP67 rating on housing side
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 1 W without load
- High mechanical durability with bearing lifetime of 3.6 x 10⁹ revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate feedback
- Machine tools and packaging machinery
- Safety-related applications in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK DBS60E-S4EA00100 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
