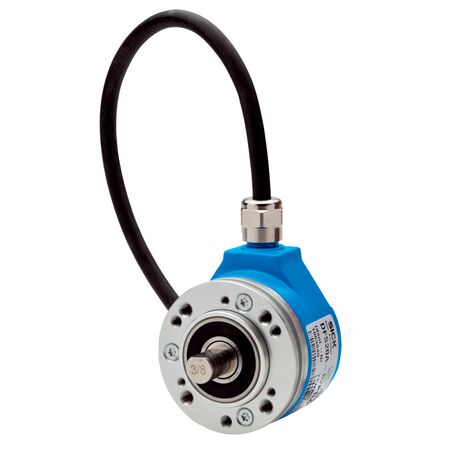

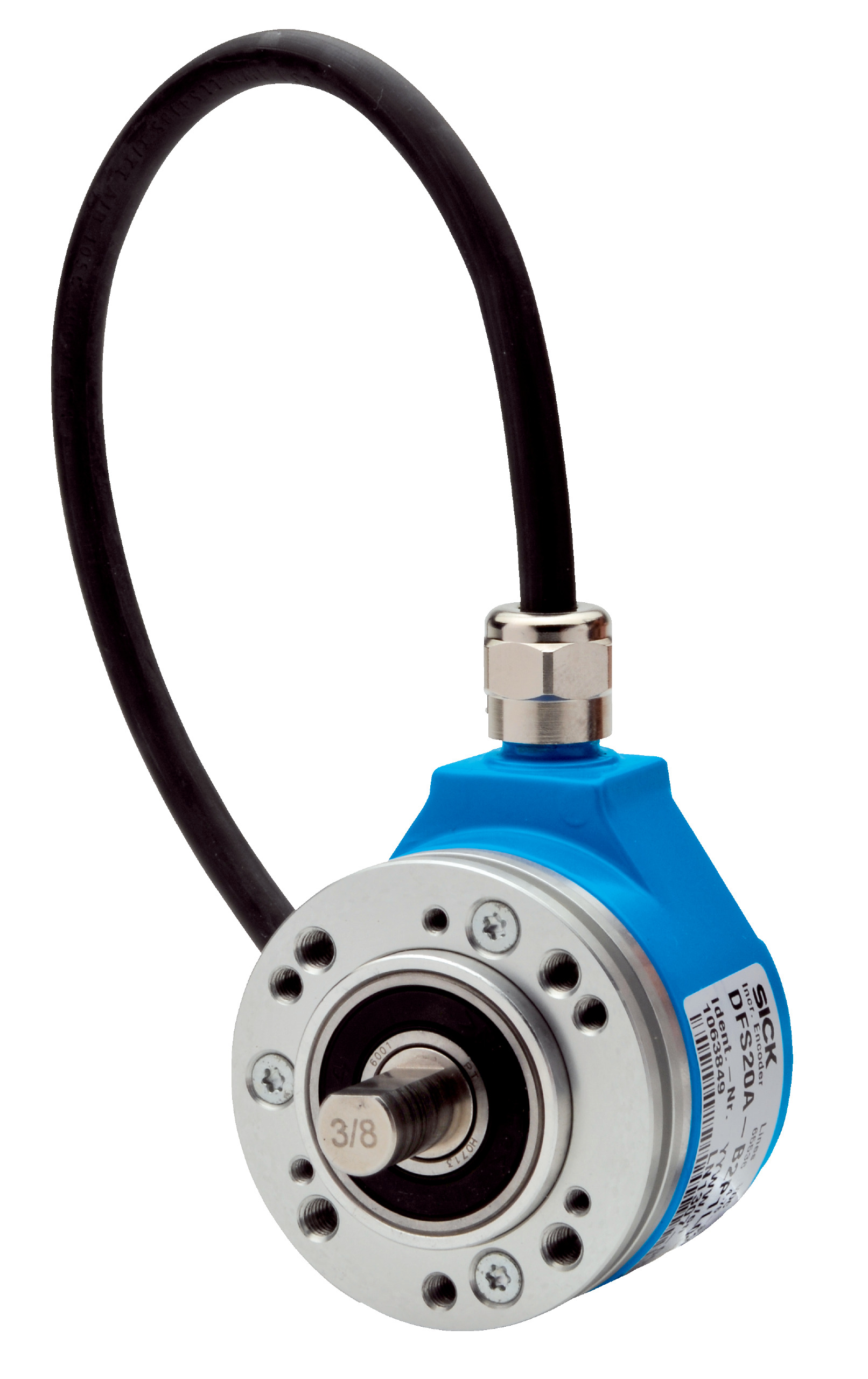

Incremental Rotary Encoder | 1000 Pulses/Rev | IP65/IP67 Rated | Solid Shaft Design | by SICK
The Incremental Rotary Encoder DFS20A-B1BAN001000 offers high precision with 1000 pulses per revolution, making it ideal for industrial automation and control systems. Its robust solid shaft and servo flange design ensure reliability in harsh environments, while the IP65/IP67 rating provides protection against dust and water. With a wide operating temperature range from -30°C to +85°C, this encoder is perfect for robotics and machine tool applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1,000
- Measuring step: ±90° electric/pulses per revolution
- Measuring step deviation: ±0.008° pulses 100 to 10,000
- Error limits: ±0.03°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- 0-set function via hardware pin: Yes, H-active
- Initialization time: 40 ms
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Connection type: Cable, 9-wire, radial, 5 m
- Supply voltage: 8 to 30 V
- Reference signal: 1 at 180° electrical, logically gated
- Code sequence: Counterclockwise
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 1/4 inch with flat
- Shaft length: 16 mm
- Shaft material: Stainless steel 1.4305
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: 0.5 Ncm at 20°C
- Operating torque: 0.3 Ncm at 20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: up to 9,000 min⁻¹
- Moment of inertia of rotor: 15 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: up to 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -30°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 11 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 40mm x 70mm x 40mm
- Weight: 0.4 kg
Key Features
- High resolution with 1,000 pulses per revolution
- Robust mechanical design with solid shaft and servo flange
- IP65 rated on shaft side and IP67 on housing side for harsh environments
- Reverse polarity and short-circuit protection
- Wide operating temperature range from -30°C to +85°C
- Low start-up torque of 0.5 Ncm and operating torque of 0.3 Ncm
- High reliability with MTTFD of 330 years according to EN ISO 13849-1
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Position and speed measurement in manufacturing
- Machine tool and conveyor systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 0.7 W improves energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS20A-B1BAN001000 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
