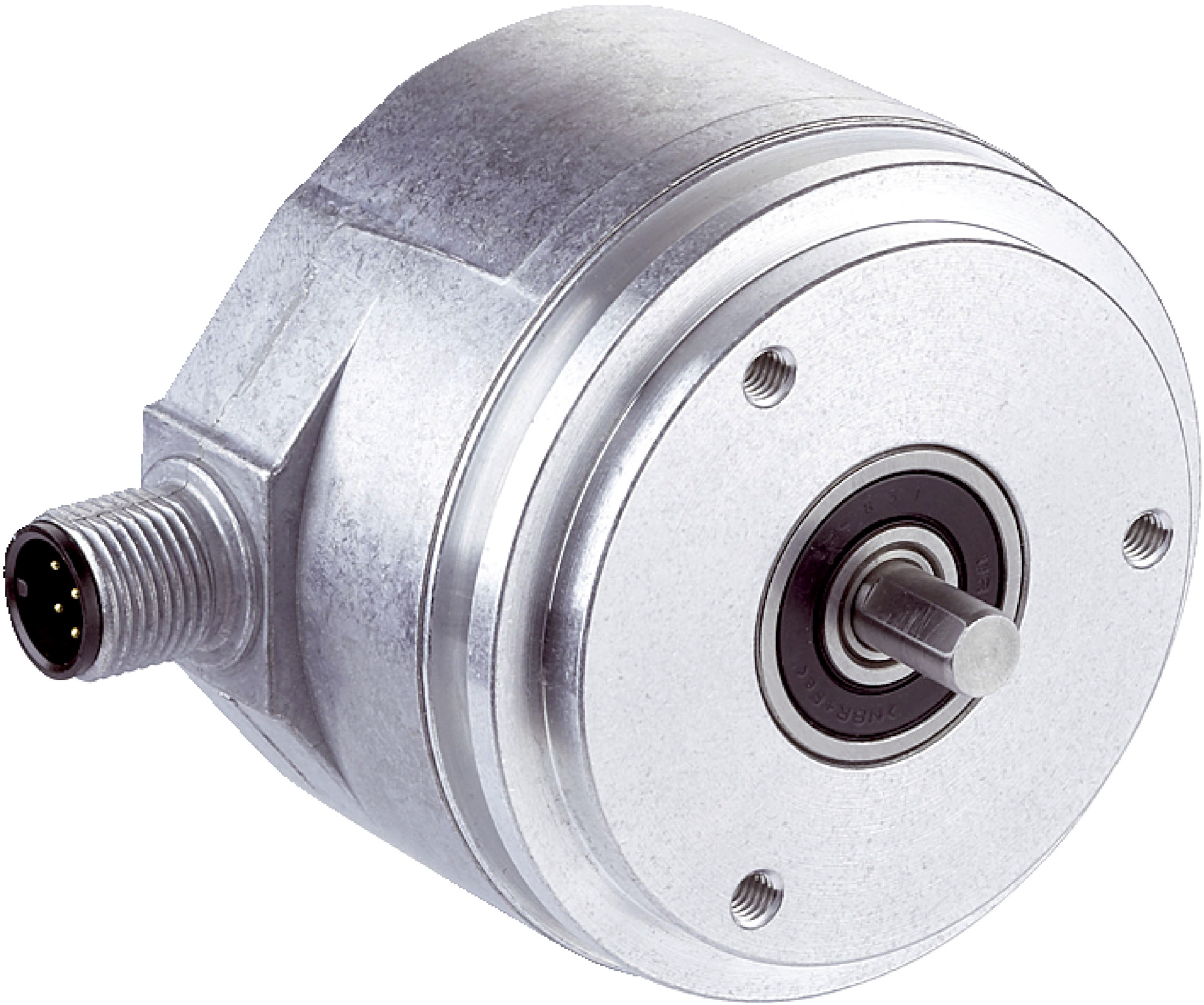

Incremental Rotary Encoder DFS60B-S1CC01000 | 1000 Pulses/Rev | IP67 Rated | by SICK
The Incremental Rotary Encoder DFS60B-S1CC01000 offers high precision with 1,000 pulses per revolution, making it ideal for industrial automation and control systems. Built with a solid stainless steel shaft and robust aluminum housing, it ensures durability and reliability in demanding environments, with a wide operating temperature range from -40°C to +100°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1,000
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±0.01°
- Error limits: ±0.05°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 600 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 10 to 32 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: 0.5 Ncm at +20°C
- Operating torque: 0.3 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40°C to +100°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 70 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 1,000 pulses per revolution
- Solid shaft with stainless steel material and servo flange
- Robust aluminum die cast housing with IP67 rating on housing side
- TTL / RS-422 incremental communication interface
- Reverse polarity and short-circuit protection
- Wide operating temperature range from -40°C to +100°C
- Low power consumption of ≤ 0.5 W
- High mechanical durability with bearing lifetime of 3.6 x 10^10 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Position and speed measurement in manufacturing
- Machine tool and conveyor systems
