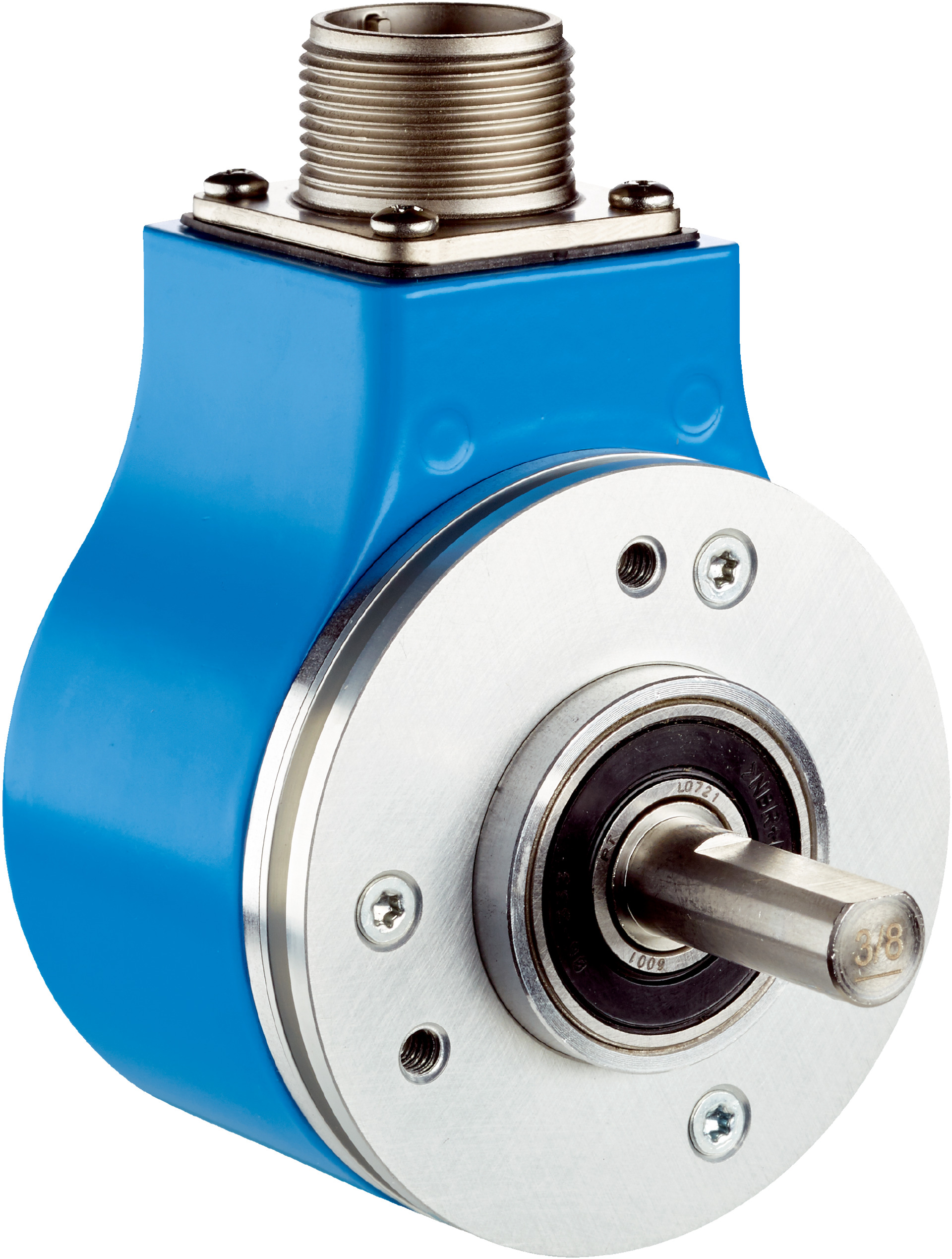

Incremental Rotary Encoder DFS25A-B2BAD010000 | 10,000 Pulses/Rev | ±0.008° Accuracy | IP65/IP67 Rated | by SICK
The Incremental Rotary Encoder DFS25A-B2BAD010000 delivers high precision with 10,000 pulses per revolution and a measuring step accuracy of ±0.008°. Designed for industrial automation and robotics, it features a robust mechanical design with IP65/IP67 ratings for protection against dust and water. Ideal for machine tool positioning and conveyor systems, this encoder ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 10,000
- Measuring step: ±90°, electric/pulses per revolution
- Measuring step deviation: ±0.008° pulses 100 ... 10,000
- Error limits: ±0.03°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6-channel
- 0-set function via hardware pin: Yes, H-active
- Initialization time: 40 ms
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, MS, 10-pin, radial
- Supply voltage: 8 ... 30 V
- Reference signal position: 180°, electrical, logically gated
- Code sequence: Counterclockwise
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 3/8″ with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel 1,4305
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: 0.5 Ncm (+20 °C)
- Operating torque: 0.3 Ncm (+20 °C)
- Permissible shaft loading: 80 N (radial), 40 N (axial)
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 15 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –30 °C to +85 °C
- Storage temperature range: –40 °C to +100 °C
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.4 kg
Key Features
- High resolution with 10,000 pulses per revolution
- Measuring step accuracy of ±0.008°
- Robust mechanical design with solid shaft and servo flange
- IP65 rated shaft side and IP67 rated housing side for protection
- Reverse polarity and short-circuit protection
- Operating temperature range from –30 °C to +85 °C
- High resistance to shock (100 g) and vibration (30 g)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting for optimal performance and safety.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Machine tool positioning
- Conveyor and material handling systems
Standards & Compliance
- Complies with AS/NZS 61000 series for EMC standards
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 0.7 W enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DFS25A-B2BAD010000 incremental encoder is available for immediate purchase, ideal for industrial automation and precision control applications.
