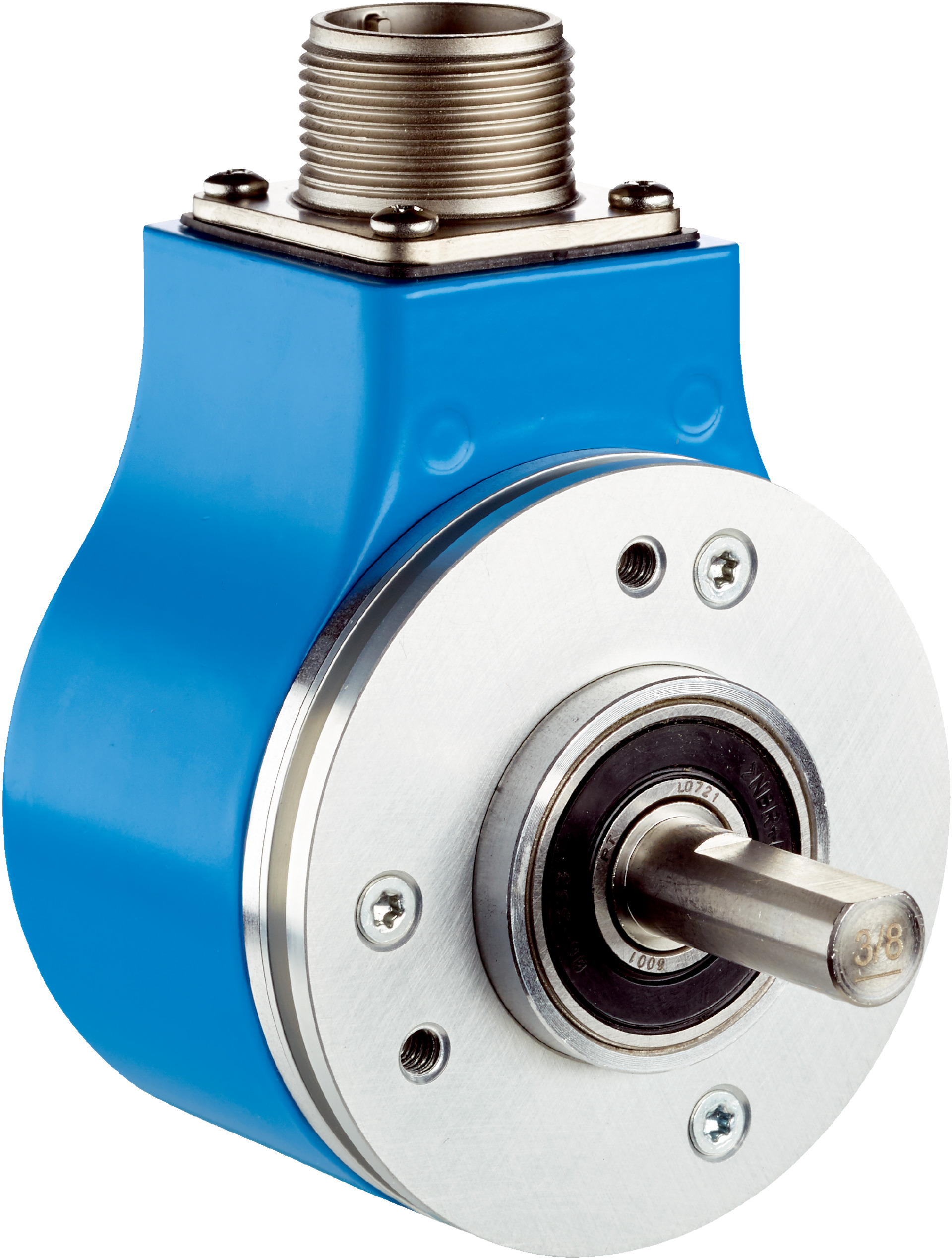

Incremental Rotary Encoder | 10,000 Pulses/Rev | IP65/IP67 Rated | High Mechanical Durability | by SICK
The Incremental Rotary Encoder DFS25A-B2B1D010000 offers high resolution with 10,000 pulses per revolution, making it ideal for industrial automation and precision measurement applications. With robust stainless steel construction and IP65/IP67 ratings, it ensures reliable performance in harsh environments. Designed for robotics and machine tools, this encoder supports a wide operating temperature range from -30°C to +85°C, providing durability and efficiency in demanding settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 10,000
- Measuring step deviation: ±0.008°
- Error limits: ±0.03°
- Communication interface: Incremental HTL / Push pull, 6-channel
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Supply voltage: 8 to 30 V
- Connection type: Male connector, MS, 10-pin, radial
- Shaft diameter: 3/8 inch with flat
- Shaft length: 19 mm
- Operating speed: up to 9,000 min⁻¹
- Start up torque: 0.5 Ncm at +20°C
- Operating torque: 0.3 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -30°C to +85°C
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.4 kg
Key Features
- High resolution with 10,000 pulses per revolution
- Robust solid shaft design with stainless steel shaft
- IP65 rated shaft side and IP67 rated housing side for protection
- Short-circuit and reverse polarity protection
- Fast initialization time of 40 ms
- Supports 6-channel incremental HTL / Push pull communication interface
- Operating temperature range from -30°C to +85°C
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Position and speed measurement in manufacturing
- Machine tool and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of 0.7 W enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK DFS25A-B2B1D010000 incremental encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
