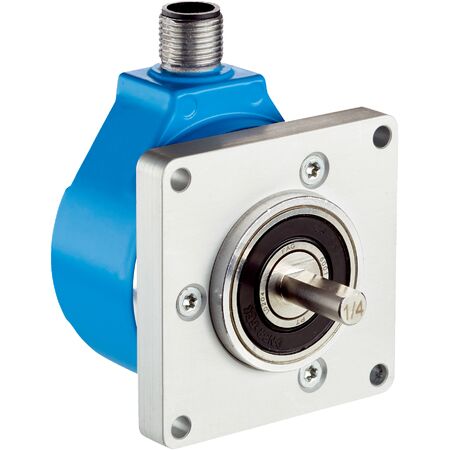

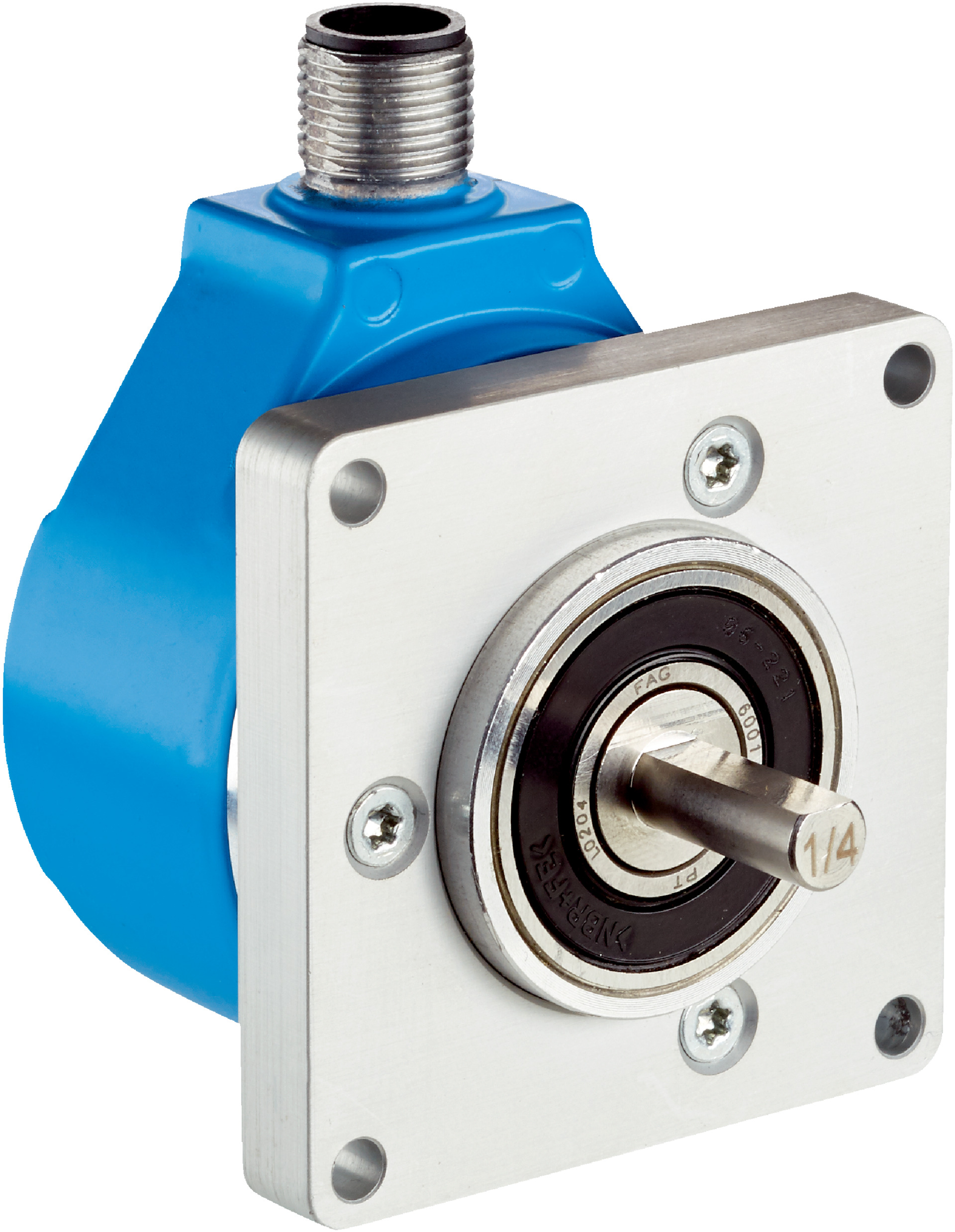

Incremental Rotary Encoder | 10,000 Pulses/Rev | IP65/IP67 Rated | Low Operating Torque | by SICK
The Incremental Rotary Encoder offers high resolution with 10,000 pulses per revolution, making it ideal for industrial automation and robotics. With a robust design featuring IP65/IP67 ratings for dust and water protection, it ensures reliable performance in challenging environments. This encoder operates efficiently with a low torque of 0.3 Ncm, perfect for precise position and speed measurement in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 10,000
- Measuring step deviation: ±0.008°
- Error limits: ±0.03°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 8 to 30 V
- Shaft diameter: 10 mm with flat
- Shaft length: 16 mm
- Materials: Stainless steel shaft, aluminum flange and housing
- Start up torque: 0.5 Ncm at +20°C
- Operating torque: 0.3 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: up to 9,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: up to 500,000 rad/s²
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -30°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 11 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.4 kg
Key Features
- High resolution with 10,000 pulses per revolution
- Robust mechanical design with solid shaft and square flange
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Low operating torque of 0.3 Ncm for efficient operation
- Reverse polarity and short-circuit protection for output safety
- Wide operating temperature range from -30°C to +85°C
- High resistance to shocks (100 g) and vibration (30 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation for precise position and speed measurement
- Robotics requiring accurate angular position feedback
- Conveyor systems and material handling equipment
- Machine tools and manufacturing equipment
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption of 0.7 W contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS20A-A4C1C010000 incremental encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
