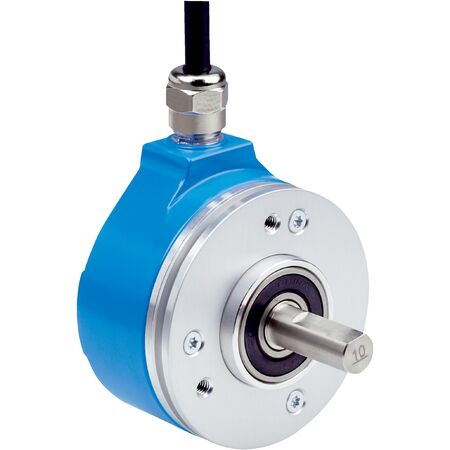

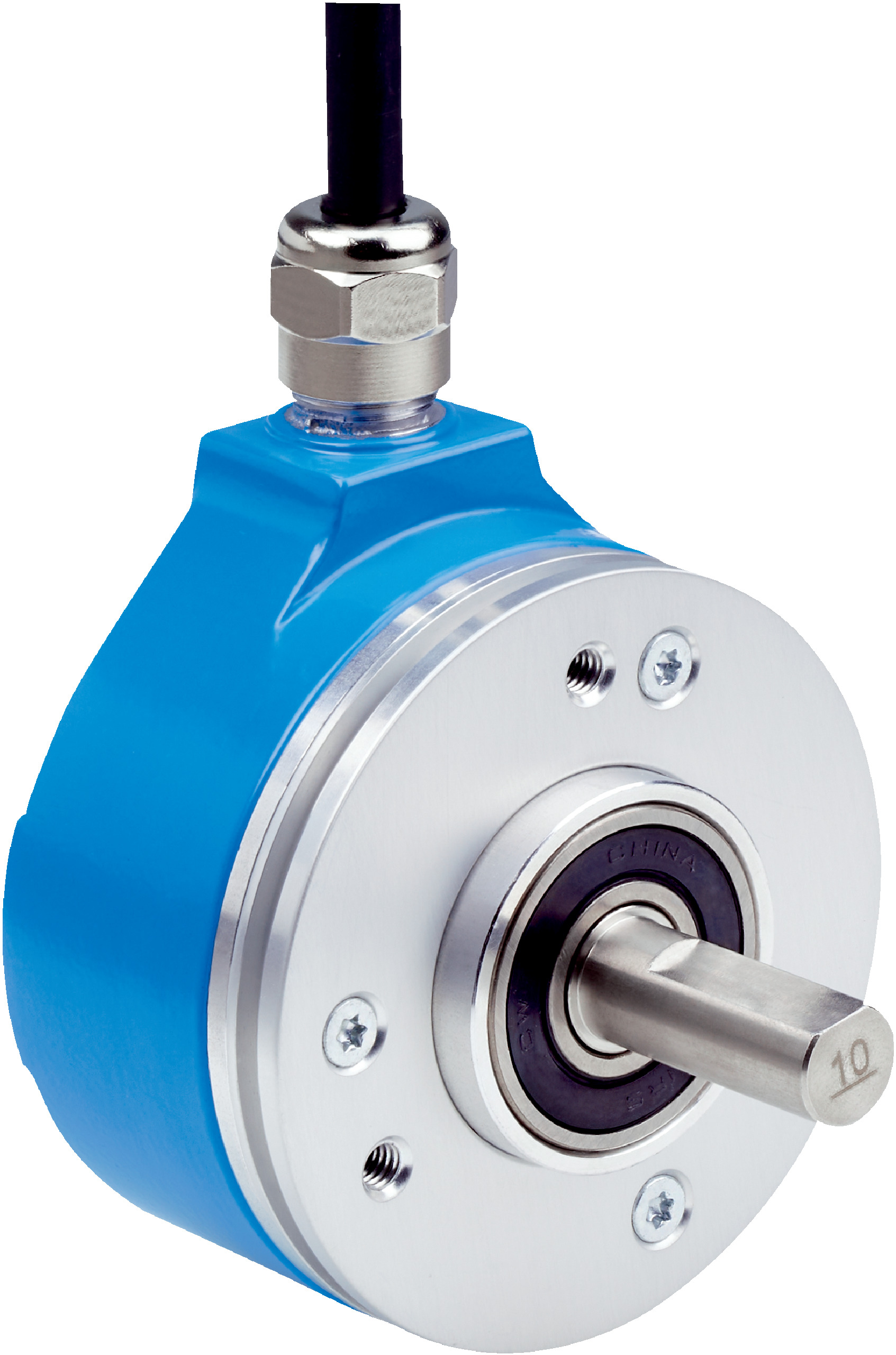

Incremental Rotary Encoder | 10,000 Pulses/Rev | IP65/IP67 Rated | Robust Mechanical Design | by SICK
The Incremental Rotary Encoder offers high resolution with 10,000 pulses per revolution, making it ideal for industrial automation and precision measurement applications. Built for reliability, it features a robust mechanical design with a solid shaft and servo flange, along with IP65 and IP67 ratings for protection against dust and water. Perfect for robotics and machine tool systems, this encoder ensures accurate position and speed measurement in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 10,000
- Measuring step deviation: ±0.008° pulses 100 to 10,000
- Error limits: ±0.03°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6-channel
- Initialization time: 40 ms
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Connection type: Cable, 9-wire, radial, 10 m
- Supply voltage: 8 to 30 V
- Reference signal position: 180°, electric, gated with A
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel 1,4305
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: 0.5 Ncm (+20 °C)
- Operating torque: 0.3 Ncm (+20 °C)
- Permissible shaft loading: 80 N (radial), 40 N (axial)
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of the rotor: 15 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –30 °C to +85 °C
- Storage temperature range: –40 °C to +100 °C
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.4 kg
Key Features
- High resolution with 10,000 pulses per revolution
- Robust mechanical design with solid shaft and servo flange
- IP65 rated shaft side and IP67 rated housing side for protection
- Reverse polarity and short-circuit protection
- Operating temperature range from -30°C to +85°C
- High resistance to shocks (100 g) and vibration (30 g)
- 0-set function via hardware pin for easy initialization
- Low power consumption of 0.7 W without load
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with incremental encoders and industrial electrical standards to ensure proper connection and safety compliance.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Position and speed measurement in manufacturing
- Machine tool and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS25A-B4B1O010000 incremental encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
