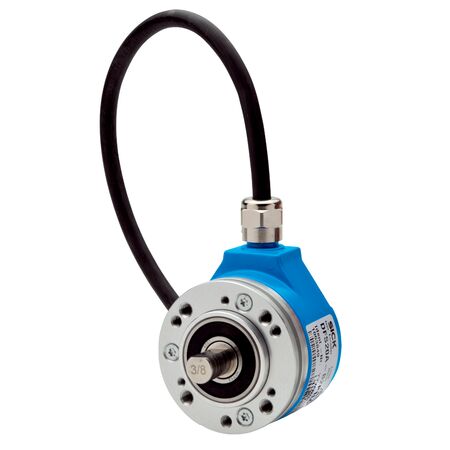

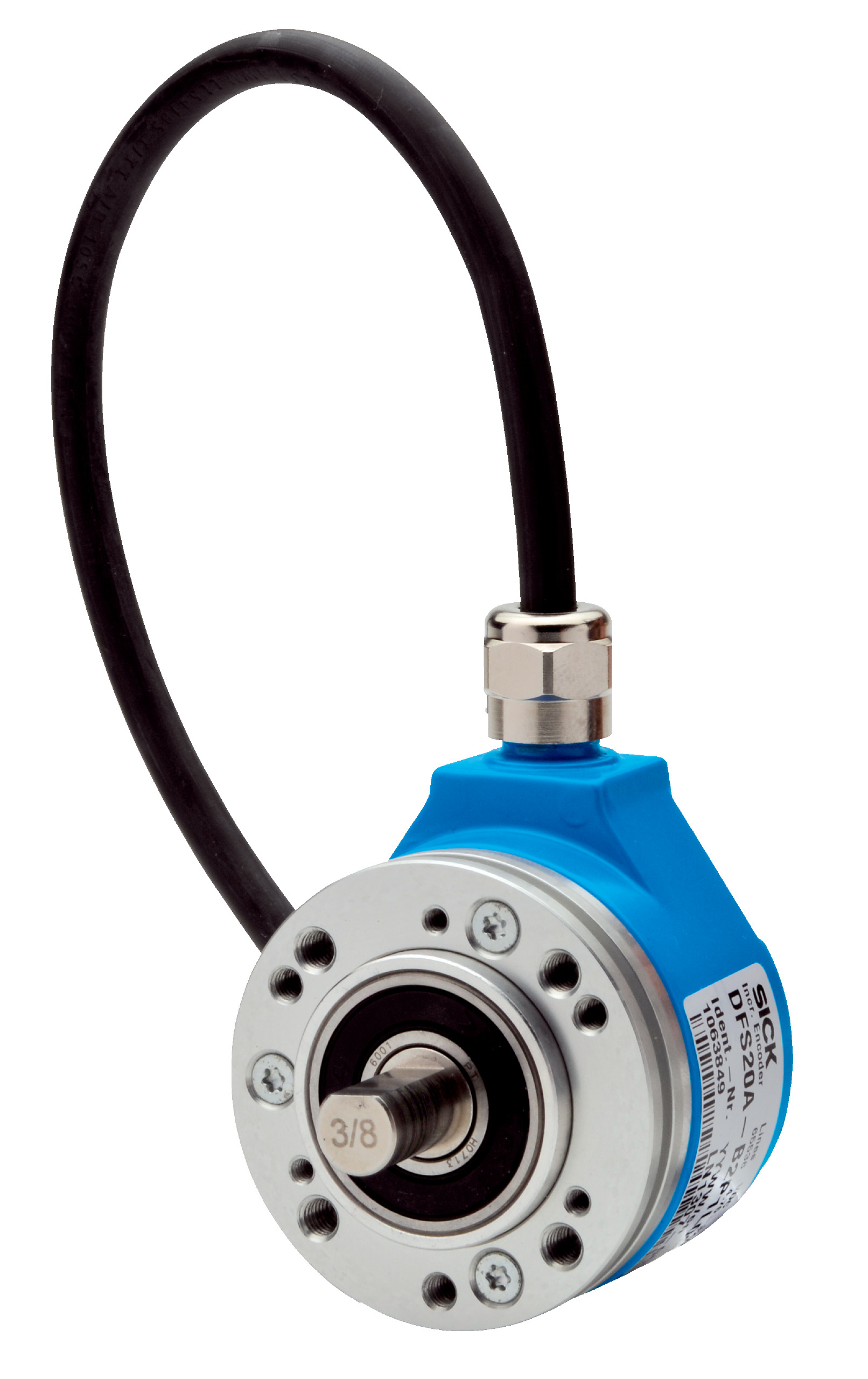

Incremental Rotary Encoder | 10,000 Pulses/Rev | IP65/IP67 Rated | Robust Mechanical Design | by SICK
The Incremental Rotary Encoder offers high resolution with 10,000 pulses per revolution, making it ideal for industrial automation and precision measurement applications. Designed for reliability, it features a robust mechanical design with a solid shaft and servo flange, along with IP65 and IP67 ratings for protection against dust and water. Perfect for robotics and machine tool feedback, this encoder ensures accurate position and speed measurement in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Rotary Encoder | 10,000 Pulses/Rev | IP65/IP67 Rated | Robust Mechanical Design | by SICK
Brand: SICK
SKU: 1119199
Alternatively Known As: Incremental rotary encoder, high resolution encoder, industrial position sensor, servo encoder
Technical Specifications
- Pulses per revolution: 10,000
- Measuring step deviation: ±0.008°
- Error limits: ±0.03°
- Communication interface: Incremental, Open Collector
- Number of signal channels: 6
- Output frequency: 150 kHz
- Load current: 30 mA
- Supply voltage: 8 to 30 V
- Connection type: 9-wire cable, 5 m length
- Shaft diameter: 10 mm with flat
- Shaft length: 16 mm
- Mechanical design: Solid shaft, servo flange
- Housing material: Aluminum
- Operating speed: up to 9,000 min⁻¹
- Start up torque: 0.5 Ncm at 20°C
- Operating torque: 0.3 Ncm at 20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Bearing lifetime: 3.6 x 10^9 revolutions
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -30°C to +85°C
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.4 kg
Key Features
- High resolution with 10,000 pulses per revolution
- Robust mechanical design with solid shaft and servo flange
- IP65 rated shaft side and IP67 rated housing side for protection
- Reverse polarity and short-circuit protection
- Low power consumption of 0.7 W without load
- Operating temperature range from -30°C to +85°C
- High resistance to shocks (100 g) and vibration (30 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Position and speed measurement in manufacturing
- Machine tool and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS20A-B4D1N010000 incremental encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
