Incremental Rotary Encoder | 10,000 Pulses/Rev | IP65/IP67 Rated | High Speed & Low Power | by SICK
The Incremental Rotary Encoder offers high resolution with 10,000 pulses per revolution, making it ideal for industrial automation and precision motion control applications. With a robust design featuring a stainless steel shaft and aluminum housing, it ensures durability and reliability in demanding environments. Its IP65/IP67 rating provides excellent protection against dust and water, while the low power consumption of 0.7 W enhances energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

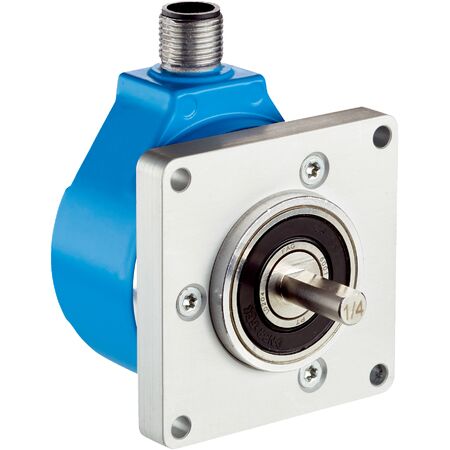

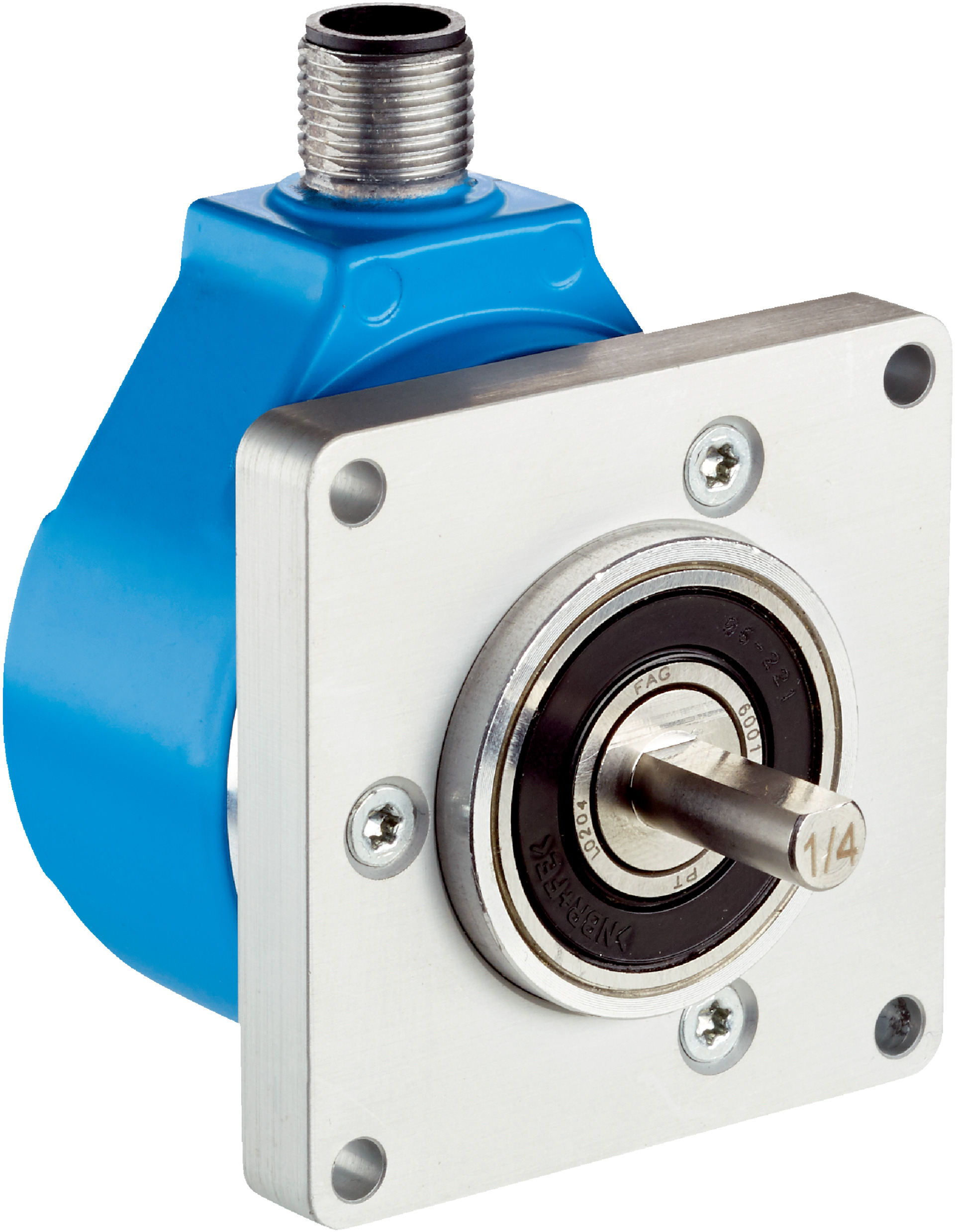

Product Name/Title: Incremental Rotary Encoder | 10,000 Pulses/Rev | IP65/IP67 Rated | High Speed & Low Power | by SICK
Brand: SICK
SKU: 1066615
Alternatively Known As: Incremental rotary encoder, high resolution encoder, industrial position sensor, shaft encoder
Technical Specifications
- Pulses per revolution: 10,000
- Measuring step deviation: ±0.008°
- Error limits: ±0.03°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 8 to 30 V
- Shaft diameter: 10 mm with flat
- Shaft length: 16 mm
- Start up torque: 0.5 Ncm at +20°C
- Operating torque: 0.3 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: up to 9,000 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Operating temperature range: -30°C to +85°C
- Enclosure rating: IP65 shaft side, IP67 housing side
- EMC: EN 61000-6-2 and EN 61000-6-3 compliant
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.4 kg
Key Features
- High resolution with 10,000 pulses per revolution
- Robust mechanical design with solid shaft and square flange
- Stainless steel shaft and aluminum housing for durability
- IP65 rated on shaft side and IP67 on housing side for protection against dust and water
- Operating temperature range from -30°C to +85°C
- Reverse polarity and short-circuit protection
- Low power consumption of 0.7 W without load
- High operating speed up to 9,000 min⁻¹
- Long bearing lifetime of 3.6 x 10⁹ revolutions
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool feedback
- Conveyor systems
- Position and speed measurement in manufacturing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials extend product lifespan, reducing waste
- Compliance with RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS20A-A4B1C010000 incremental encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
