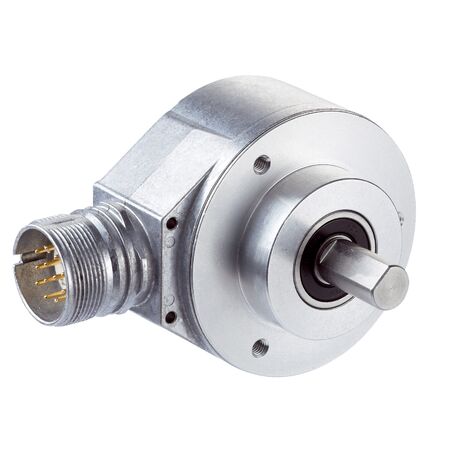

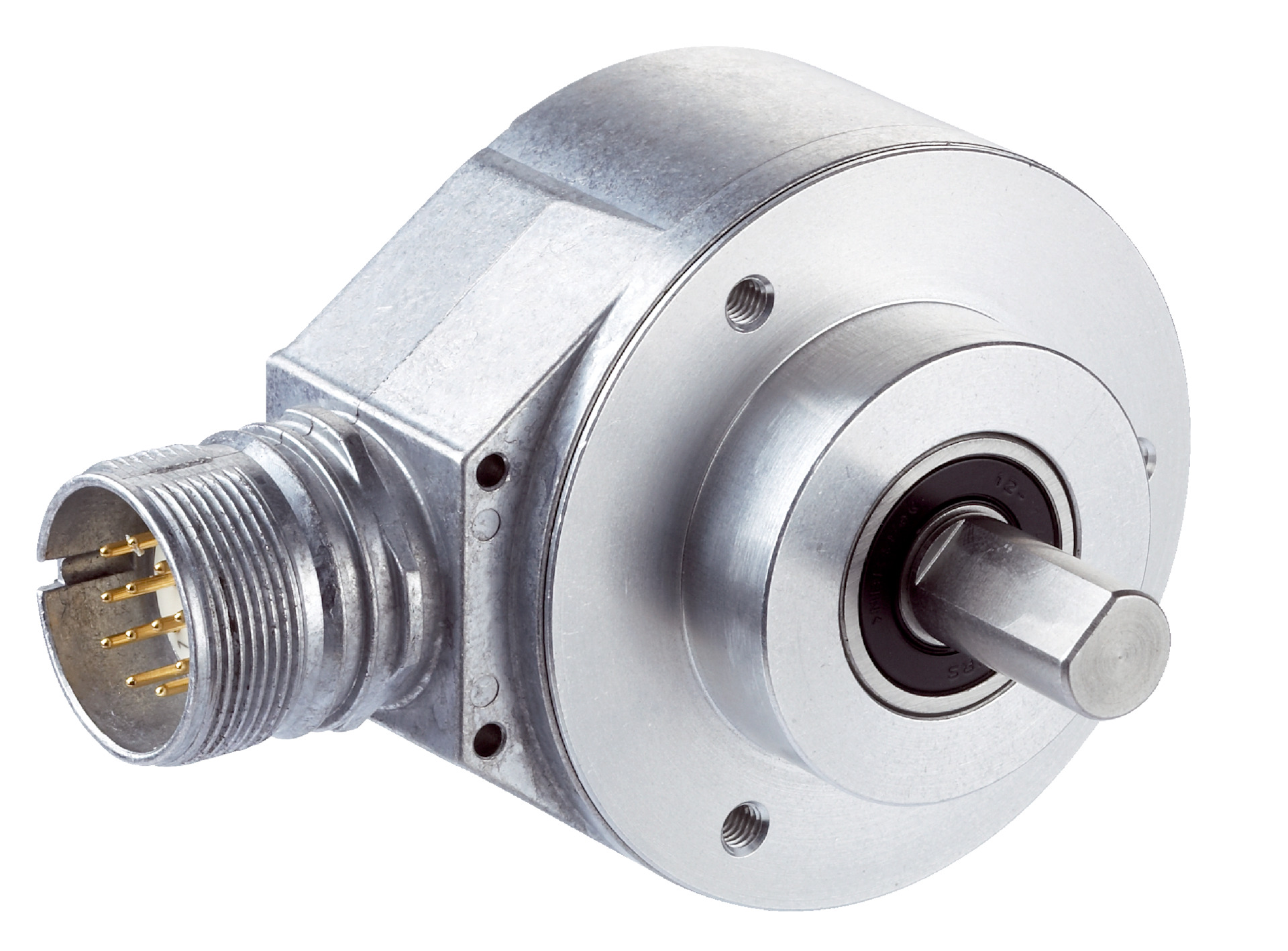

Incremental Rotary Encoder DFS60B-S4PA10000 | 10,000 Pulses/Rev | IP67 & IP65 Rated | by SICK
The Incremental Rotary Encoder DFS60B-S4PA10000 offers high precision with 10,000 pulses per revolution and a robust design for industrial automation. With an IP67 rated housing and IP65 shaft side, it ensures reliable performance in harsh environments. Ideal for robotics, machine tool positioning, and conveyor systems, this encoder features a solid shaft with a face mount flange design for easy installation and long-lasting durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Rotary Encoder DFS60B-S4PA10000 | 10,000 Pulses/Rev | IP67 & IP65 Rated | by SICK
Brand: SICK
SKU: 1036720
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 10,000
- Measuring step deviation: ±0.01°
- Error limits: ±0.05°
- Communication interface: Incremental TTL/HTL
- Number of signal channels: 6
- Initialization time: 30-32 ms
- Output frequency: ≤ 600 kHz
- Load current: ≤ 30 mA
- Supply voltage: 4.5 to 32 V
- Connection type: Male connector, M23, 12-pin, radial
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Operating speed: ≤ 9,000 min⁻¹
- Bearing lifetime: 3.6 x 10^10 revolutions
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: -40°C to +100°C
- Resistance to shocks: 70 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 10,000 pulses per revolution
- Solid shaft with face mount flange design
- Robust aluminum die cast housing and flange
- IP67 rated housing side and IP65 shaft side for protection
- Reverse polarity and short-circuit protection
- Operating temperature range from -40°C to +100°C
- Low operating torque of 0.3 Ncm
- Programmable and configurable 6-channel incremental output
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Conveyor and material handling systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of ≤ 0.7 W enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60B-S4PA10000 Incremental Rotary Encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
