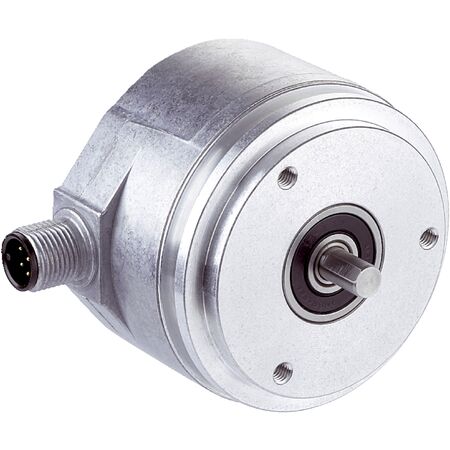

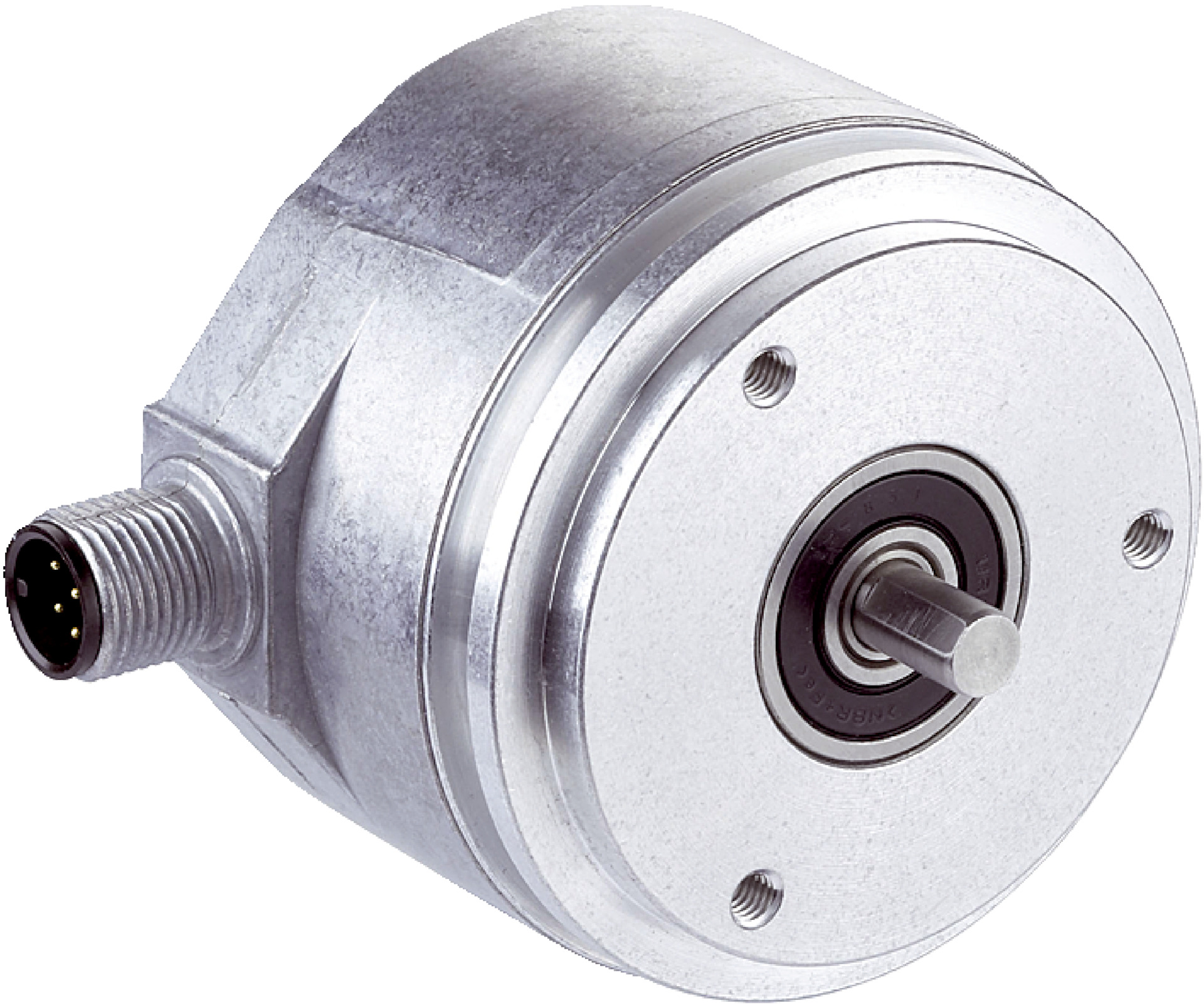

Incremental Rotary Encoder DFS60B-S1PC10000 | 10,000 Pulses/Rev | IP67 & IP65 Rated | by SICK
The Incremental Rotary Encoder DFS60B-S1PC10000 delivers high precision with 10,000 pulses per revolution, making it ideal for industrial automation and robotics. With an IP67 rated housing and IP65 shaft side, it ensures robust protection against dust and water. Designed for durability, it features a wide operating temperature range from -40 °C to +100 °C, making it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Rotary Encoder DFS60B-S1PC10000 | 10,000 Pulses/Rev | IP67 & IP65 Rated | by SICK
Brand: SICK
SKU: 1036756
Alternatively Known As: Incremental rotary encoder, high resolution encoder, industrial encoder, servo encoder
Technical Specifications
- Pulses per revolution: 10,000
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±0.01°
- Error limits: ±0.05°
- Communication interface: Incremental TTL/HTL, 6-channel
- Output frequency: ≤ 600 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 0.7 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 to 32 V
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Start up torque: 0.5 Ncm at +20 °C
- Operating torque: 0.3 Ncm at +20 °C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliant to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: -40 °C to +100 °C
- Resistance to shocks: 70 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 10,000 pulses per revolution
- Solid shaft with stainless steel material and servo flange
- IP67 rated housing side and IP65 shaft side for robust protection
- Programmable 6-channel incremental TTL/HTL output
- Low power consumption of ≤ 0.7 W
- Reverse polarity and short-circuit protection
- Wide operating temperature range from -40 °C to +100 °C
- High mechanical durability with bearing lifetime of 3.6 x 10^10 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and configuration to ensure proper operation and safety.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Precision measurement and positioning
- Machine tool and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DFS60B-S1PC10000 incremental encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
