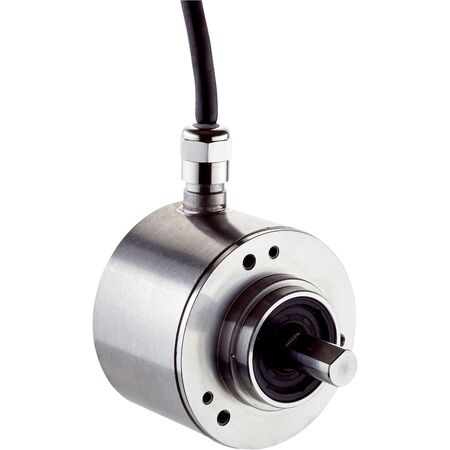

Incremental Rotary Encoder DBS60I-S4EM01024 | 1024 PPR | IP67 Rated | Fast Initialization | by SICK
The Incremental Rotary Encoder DBS60I-S4EM01024 offers 1024 pulses per revolution and a robust IP67 rated enclosure, making it ideal for industrial automation and control systems. With a fast initialization time of under 5 ms and high reliability, this encoder is perfect for robotics, machine tool positioning, and safety-related monitoring in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1024
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18° per pulse
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 1 W (without load)
- Connection type: 8-wire cable, radial, 5 m length
- Supply voltage: 10 to 27 V
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Flange type: Face mount flange with 3 x M3 and 3 x M4
- Operating speed: ≤ 6000 min⁻¹
- Moment of inertia of rotor: 34 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Operating temperature range: -20°C to +85°C
- Enclosure rating: IP67
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.5 kg
Key Features
- High reliability with MTTFD of 500 years according to EN ISO 13849-1
- 1024 pulses per revolution for precise measurement
- Incremental HTL / Push pull communication interface with 6 signal channels
- Fast initialization time under 5 ms
- Robust stainless steel V2A housing, shaft, and flange
- IP67 rated enclosure for protection against dust and water
- Wide operating temperature range from -20°C to +85°C
- Reverse polarity and short-circuit protection
- High resistance to shocks (100 g) and vibration (30 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool positioning and feedback
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption of ≤1 W reduces energy usage
- High reliability minimizes downtime and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60I-S4EM01024 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
