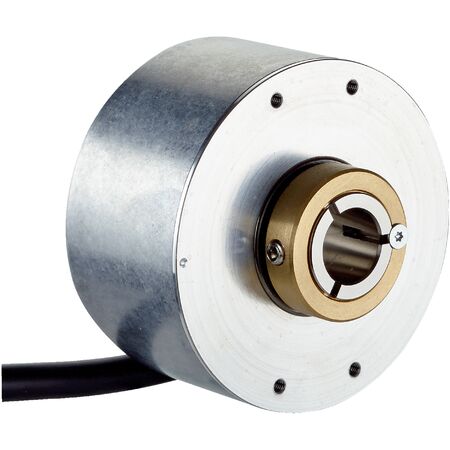

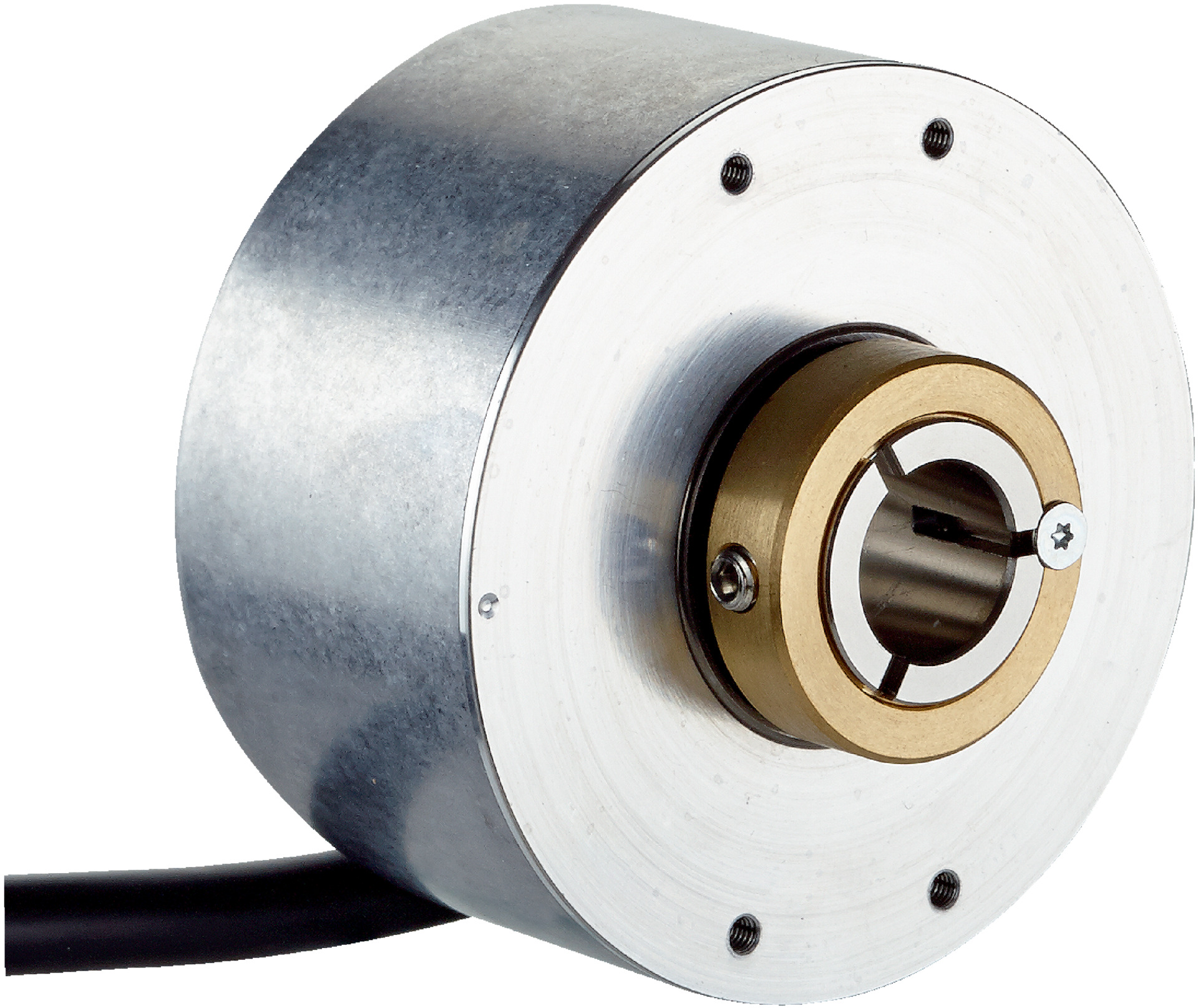

Incremental Rotary Encoder DBS60E-TDFLA1024 | 1024 Pulses/Rev | IP65 Rated | 6000 min⁻¹ Speed | by SICK
The Incremental Rotary Encoder DBS60E-TDFLA1024 offers high precision with 1,024 pulses per revolution, making it ideal for industrial automation and motion control applications. With a robust through hollow shaft design and an operating speed of up to 6,000 min⁻¹, this encoder ensures reliable performance in demanding environments. Its IP65 rating provides excellent protection against dust and water, while reverse polarity and short-circuit protection enhance safety and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step: ≤ 90°, electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Cable, 8-wire, universal, 3 m
- Supply voltage: 4.5 to 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 10 mm (front clamp)
- Flange type: Without stator coupling, flange with 4 x M2.5
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Cable material: PVC
- Start up torque: > 0.5 Ncm at 20 °C
- Operating torque: 0.4 Ncm at 20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –30 °C to +100 °C
- Storage temperature range: –40 °C to +100 °C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- High resolution with 1,024 pulses per revolution
- Robust through hollow shaft mechanical design
- Operating speed up to 6,000 min⁻¹, max 9,000 min⁻¹
- IP65 rated housing and shaft side for dust and water protection
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 0.5 W without load
- TTL / HTL incremental communication interface with 6 signal channels
- Long bearing lifetime of 3.6 x 10⁹ revolutions
- Wide operating temperature range from –30 °C to +100 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper mounting, wiring, and configuration.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor systems and material handling
- Machine tool feedback and positioning
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-TDFLA1024 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
