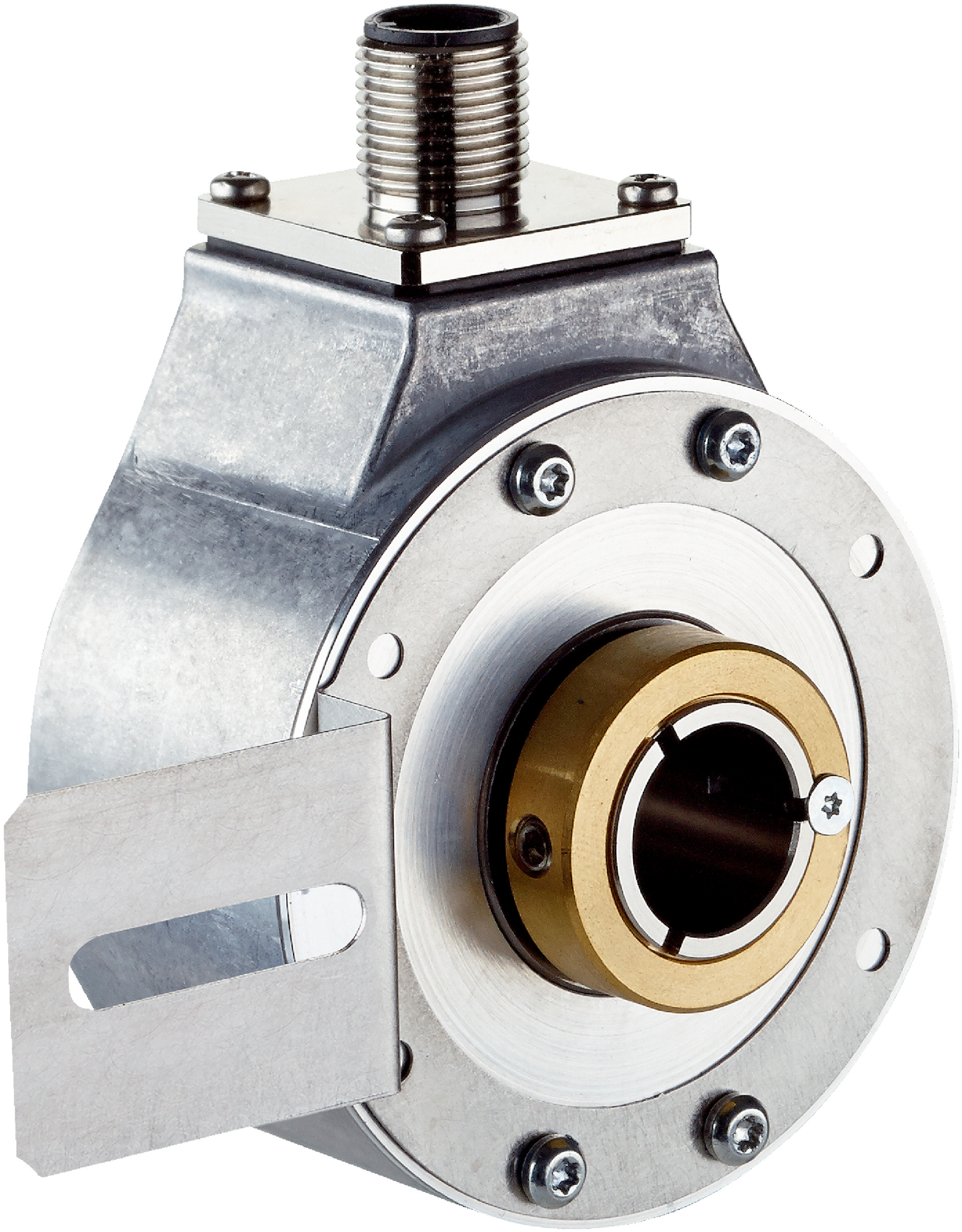

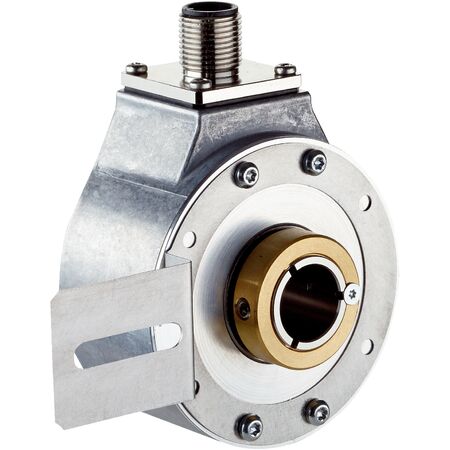

Incremental Rotary Encoder DBS60E-TFECD1024 | 1024 Pulses/Rev | IP65 Rated | High Speed up to 9000 min⁻¹ | by SICK
The Incremental Rotary Encoder DBS60E-TFECD1024 offers high precision with 1,024 pulses per revolution, making it ideal for industrial automation and motion control applications. Designed for robust performance, it features an IP65 rated housing for dust and water protection, reverse polarity, and short-circuit protection, ensuring reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 1 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 10 to 27 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 1/2 inch front clamp
- Flange type: 1-sided stator coupling with slot, screw hole circle radius 31.5–48.5 mm
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Start up torque: > 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- High resolution with 1,024 pulses per revolution
- Robust through hollow shaft mechanical design
- IP65 rated housing and shaft side for dust and water protection
- Reverse polarity and short-circuit protection
- Operating temperature range from -20°C to +85°C
- High operating speed up to 9,000 min⁻¹
- Low power consumption ≤ 1 W without load
- 6-channel incremental HTL / Push pull communication interface
