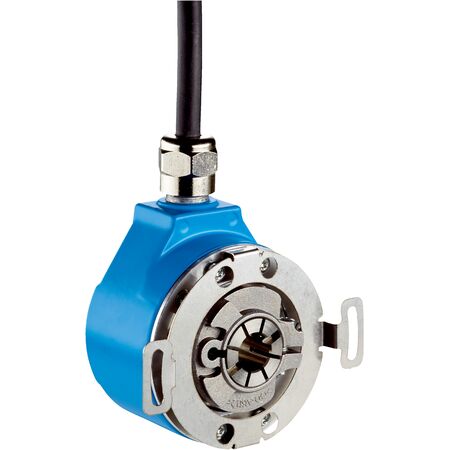

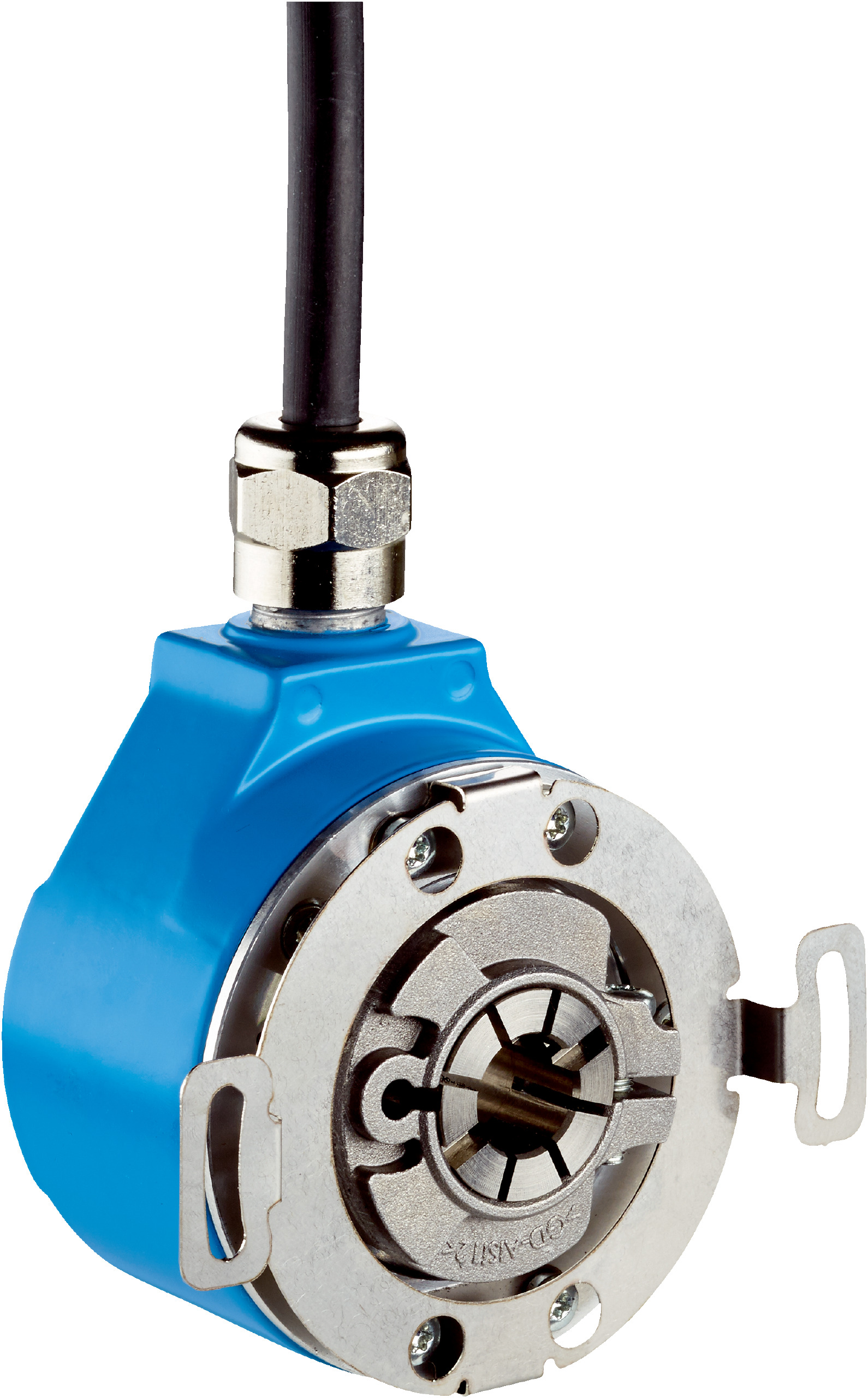

Incremental Rotary Encoder SICK DFS22A | 1024 Pulses/Rev | IP65/IP67 Rated | by SICK
The SICK DFS22A incremental rotary encoder delivers high precision with 1,024 pulses per revolution, making it ideal for industrial automation and robotics. Its robust design features a blind hollow shaft and stainless steel construction, ensuring durability in harsh environments. With an operating temperature range of -30°C to +85°C, this encoder is perfect for applications requiring accurate motion control and position feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step deviation: ±0.008°
- Error limits: ±0.03°
- Communication interface: Incremental TTL / RS-422, 6-channel
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Supply voltage: 8 to 30 V
- Connection type: 9-wire cable, radial, 10 m length
- Mechanical design: Blind hollow shaft with 3/8″ front clamp
- Materials: Stainless steel shaft, aluminum flange and housing
- Start-up torque: 0.8 Ncm at +20°C
- Operating torque: 0.6 Ncm at +20°C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.1 mm axial
- Operating speed: up to 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: up to 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -30°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 11 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 1,024 pulses per revolution
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP65 rated on shaft side and IP67 on housing side for harsh environments
- Reverse polarity and short-circuit protection
- Low start-up torque of 0.8 Ncm and operating torque of 0.6 Ncm
- Operating temperature range from -30°C to +85°C
- High bearing lifetime of 3.6 x 10^9 revolutions
- 6-channel incremental TTL/RS-422 communication interface
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting for optimal performance and safety.
Applications
- Industrial automation for precise rotational position measurement
- Robotics for accurate motion control
- Conveyor systems for speed and position feedback
- Machine tools requiring high-resolution angle measurement
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of 0.7 W minimizes energy usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS22A-KCCAO001024 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
