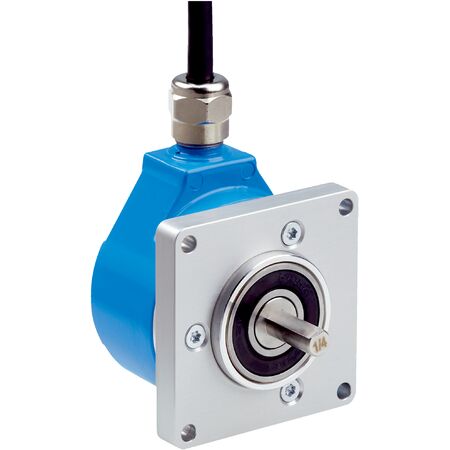

Incremental Rotary Encoder | 1024 Pulses/Rev | IP65/IP67 Rated | Robust Design | by SICK
The Incremental Rotary Encoder offers high resolution with 1,024 pulses per revolution, making it ideal for industrial automation and precise motion control applications. Built with a robust solid shaft design featuring a stainless steel shaft and aluminum housing, it ensures durability and reliability. With an operating temperature range of -30°C to +85°C and IP65/IP67 ratings for dust and water protection, this encoder is perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Mean time to dangerous failure (MTTFD): 330 years (EN ISO 13849-1)
- Pulses per revolution: 1,024
- Measuring step: ±90°, electric/pulses per revolution
- Measuring step deviation: ±0.008° pulses 100 to 10,000
- Error limits: ±0.03°
- Communication interface: Incremental, HTL / Push pull
- Number of signal channels: 6
- 0-set function: H-active, L = 0-3 V, H = 4.0 - U s V
- Initialization time: 40 ms
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Connection type: Cable, 9-wire, radial, 10 m
- Supply voltage: 8 to 30 V
- Reference signal: 1, positioned at 180°, gated with A
- Code sequence: Clockwise
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Solid shaft, square flange
- Shaft diameter: 10 mm with flat
- Shaft length: 16 mm
- Shaft material: Stainless steel 1.4305
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: 0.5 Ncm at +20°C
- Operating torque: 0.3 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: up to 9,000 min⁻¹
- Moment of inertia of rotor: 15 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: up to 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -30°C to +85°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.4 kg
Key Features
- High resolution with 1,024 pulses per revolution
- Robust solid shaft design with stainless steel shaft and aluminum housing
- IP65 rated on shaft side and IP67 on housing side for dust and water protection
- Reverse polarity and short-circuit protection
- Operating temperature range from -30°C to +85°C
- Low start-up torque of 0.5 Ncm and operating torque of 0.3 Ncm
- 6-channel incremental communication interface with HTL / Push pull output
- 0-set function via hardware pin for easy initialization
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring, alignment, and compliance with safety standards.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor systems and material handling
- Machine tool positioning and feedback
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 0.7 W contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS20A-A4B1O001024 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
