Trade Discount 20%

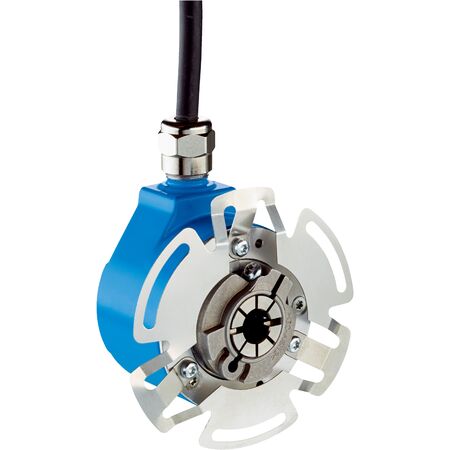

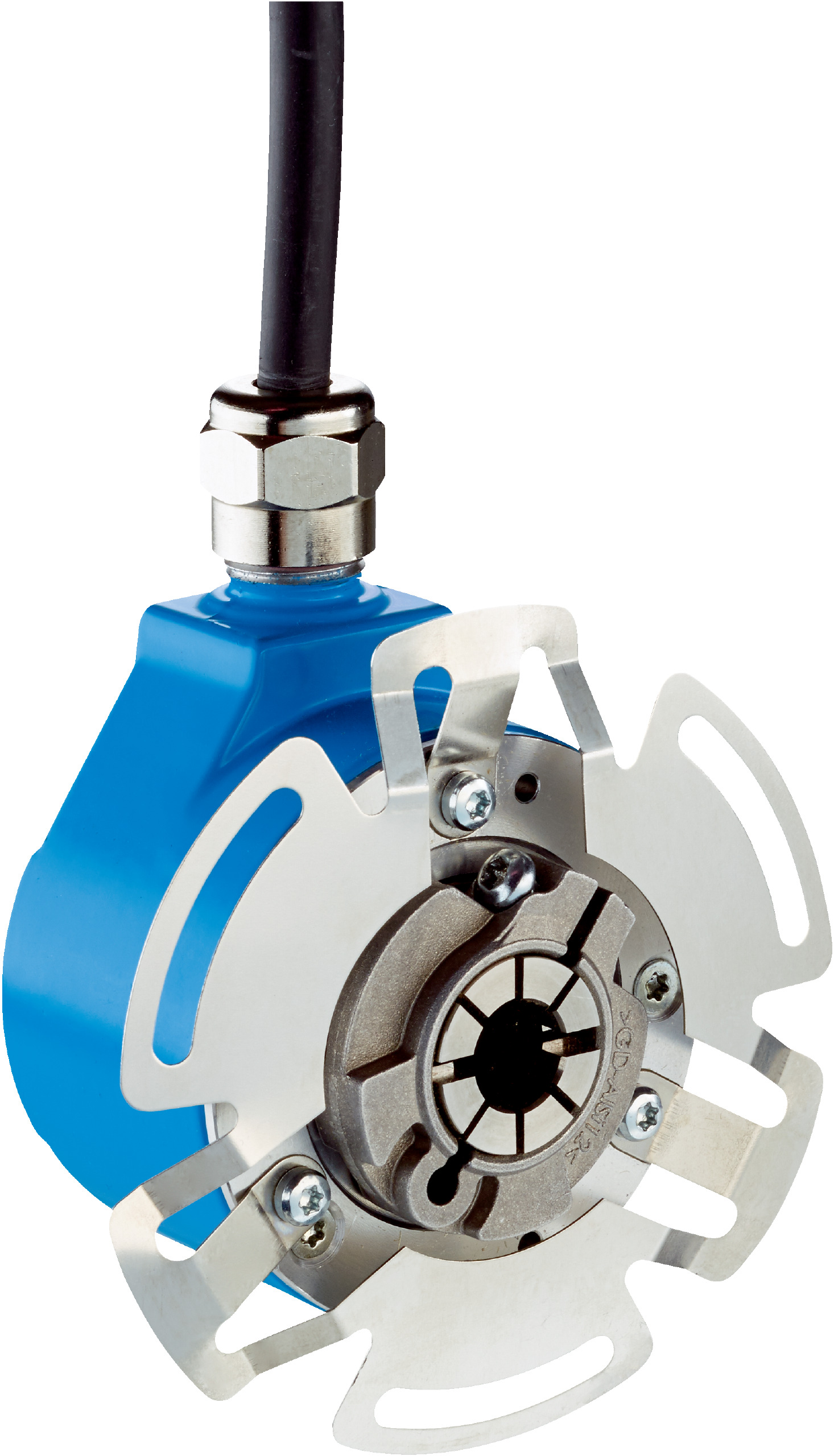

Incremental Rotary Encoder | 1,024 Pulses/Rev | IP65/IP67 Protection | by SICK
The Incremental Rotary Encoder is designed for precision in industrial automation, featuring 1,024 pulses per revolution and robust IP65/IP67 protection. Ideal for robotics and motion control, it operates in extreme temperatures from -30°C to +85°C, ensuring reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step deviation: ±0.008°
- Error limits: ±0.03°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Output frequency: 820 kHz
- Load current: 30 mA
- Operating current: 50 mA (without load)
- Supply voltage: 4.5 to 5.5 V
- Mechanical design: Blind hollow shaft with 3/8" front clamp
- Shaft material: Stainless steel 1.4305
- Housing material: Aluminum
- Flange type: 3-point stator coupling
- Start-up torque: 0.8 Ncm at +20°C
- Operating torque: 0.6 Ncm at +20°C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.1 mm axial
- Operating speed: up to 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature: -30°C to +85°C
- Storage temperature: -40°C to +100°C
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.3 kg
Key Features
- High resolution with 1,024 pulses per revolution
- Robust blind hollow shaft mechanical design
- IP65 shaft side and IP67 housing side protection
- Operating temperature range from -30°C to +85°C
- Short-circuit and reverse polarity protection
- Low start-up torque of 0.8 Ncm
- 6-channel incremental TTL/RS-422 communication interface
- Fast initialization time of 40 ms
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor systems and material handling
- Machine tool feedback and positioning
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS22A-LCA1L001024 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
