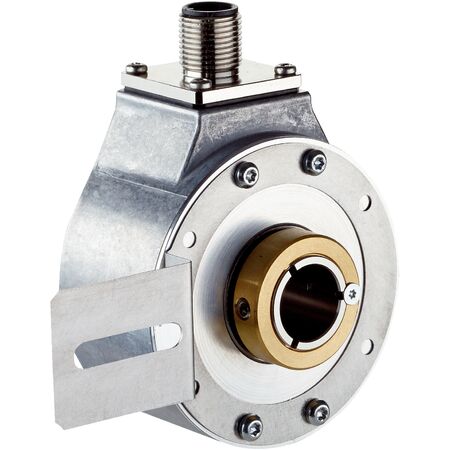

Incremental Rotary Encoder DBS60E-BGCCD1024 | 1024 Pulses/Rev | IP67 Rated | Blind Hollow Shaft Design | by SICK
The Incremental Rotary Encoder DBS60E-BGCCD1024 offers high precision with 1,024 pulses per revolution, making it ideal for industrial automation and motion control applications. Its robust blind hollow shaft design and IP67 rated housing ensure durability and protection against dust and water, while the fast initialization time of under 5 ms enhances operational efficiency. Perfect for robotics, conveyor systems, and machine tool feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male M12, 8-pin radial connector
- Supply voltage: 10 to 30 V
- Reference signal: 1, positioned at 90° electric, logically gated with A and B
- Reverse polarity and short-circuit protection included
- Mechanical design: Blind hollow shaft with 14 mm shaft diameter
- Flange type: 1-sided stator coupling with slot and screw hole circle radius 31.5–48.5 mm
- Materials: Stainless steel shaft, aluminum flange and housing
- Start up torque: 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: -30°C to +100°C (max 3,000 pulses per revolution)
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 40mm x 60mm
- Weight: 0.25 kg
Key Features
- High resolution with 1,024 pulses per revolution
- Robust blind hollow shaft mechanical design
- IP67 rated housing for protection against dust and water
- Operating temperature range from -30°C to +100°C
- Short-circuit and reverse polarity protection
- Fast initialization time under 5 ms
- Supports incremental TTL / RS-422 communication interface
- Low power consumption of ≤ 0.5 W without load
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool feedback and positioning
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-BGCCD1024 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
