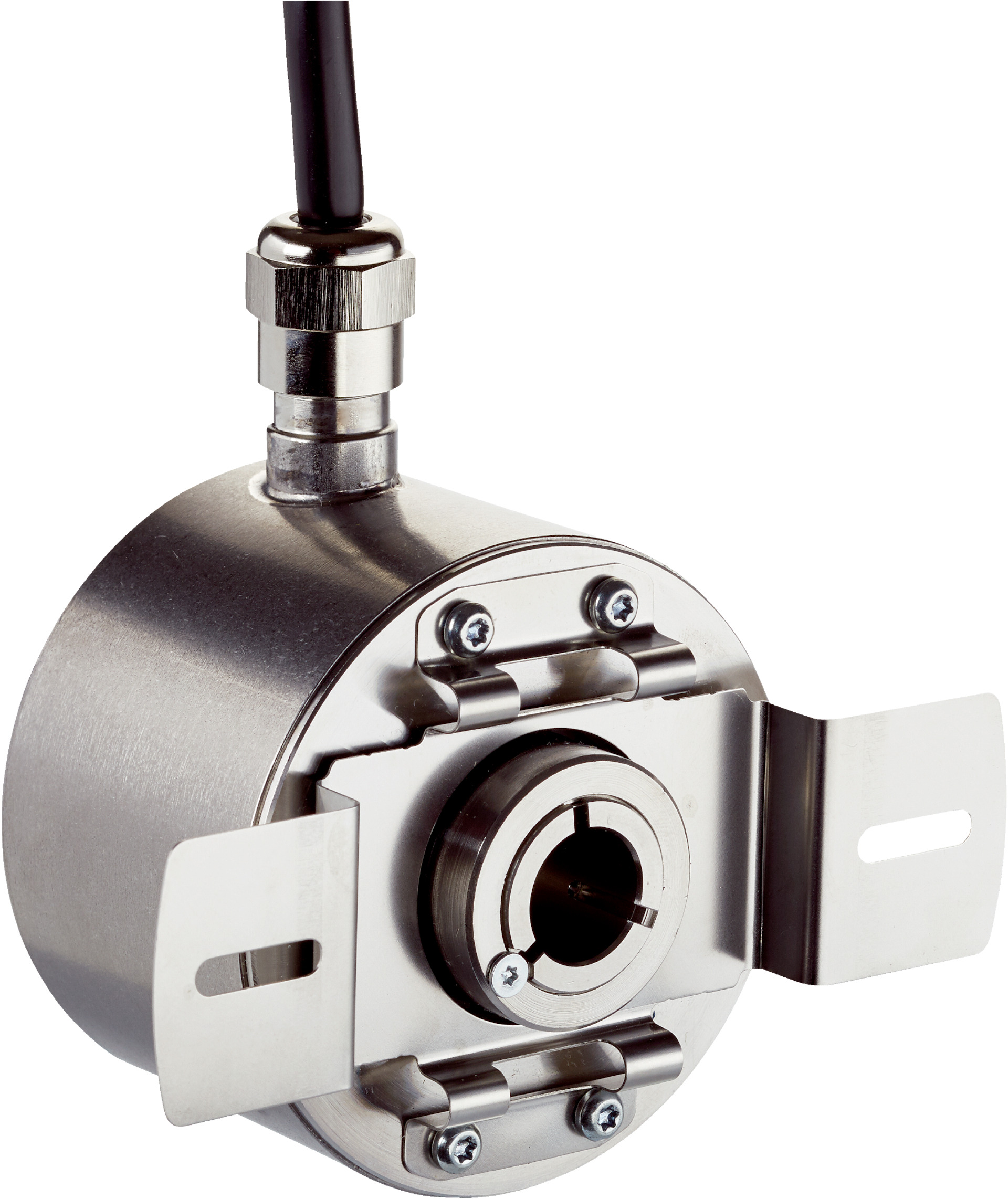

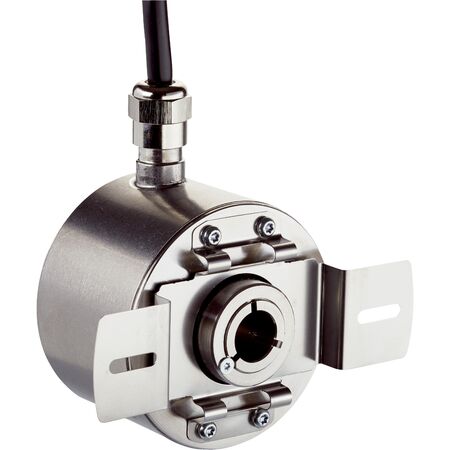

Incremental Rotary Encoder | 1024 Pulses/Rev | IP67 Rated | Stainless Steel Housing | by SICK
The Incremental Rotary Encoder DBS60I-BHFM01024 features a high resolution of 1,024 pulses per revolution and an IP67 rated enclosure, making it perfect for industrial automation and motion control applications. Built with robust stainless steel housing, it ensures durability and reliability in demanding environments, while its low power consumption enhances energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18° per pulse
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL/HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: 8-wire radial cable, 5 m length
- Supply voltage: 4.5 to 30 V
- Reference signal: 1, logically gated with A and B at 90°
- Mechanical design: Blind hollow shaft with 15 mm diameter
- Flange type: 2-sided stator coupling, slot, screw hole circle 63–83 mm
- Shaft, flange, and housing material: Stainless steel V2A
- Shaft sealing ring material: FKM80
- Cable material: PVC
- Cable gland material: Stainless steel V2A / Nickel-plated brass
- Start-up torque: 2.1 Ncm at +20 °C
- Operating torque: 2 Ncm at +20 °C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of rotor: 52 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 (IEC 60529)
- Operating temperature range: –30 °C to +100 °C
- Storage temperature range: –40 °C to +100 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 63mm x 83mm x 63mm
- Weight: 0.44 kg
Key Features
- Incremental communication interface with TTL/HTL signals
- High resolution with 1,024 pulses per revolution
- Robust stainless steel V2A housing and shaft
- IP67 rated enclosure for protection against dust and water
- Low power consumption of ≤ 0.5 W without load
- Short-circuit and reverse polarity protection
- High operating speed up to 6,000 min⁻¹
- Long bearing lifetime of 3.6 x 10⁹ revolutions
- Operating temperature range from –30 °C to +100 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor systems and material handling
- Machine tool feedback and positioning
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption contributes to energy efficiency in industrial systems
- Robust design minimizes maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60I-BHFM01024 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
