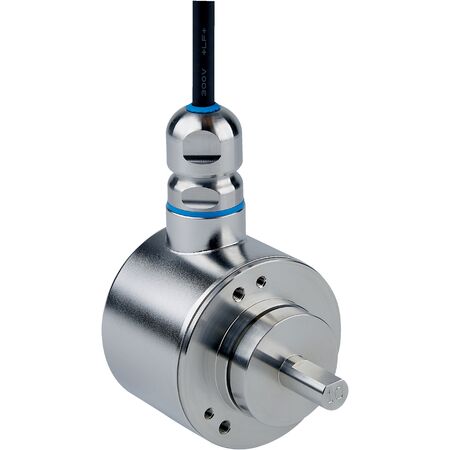

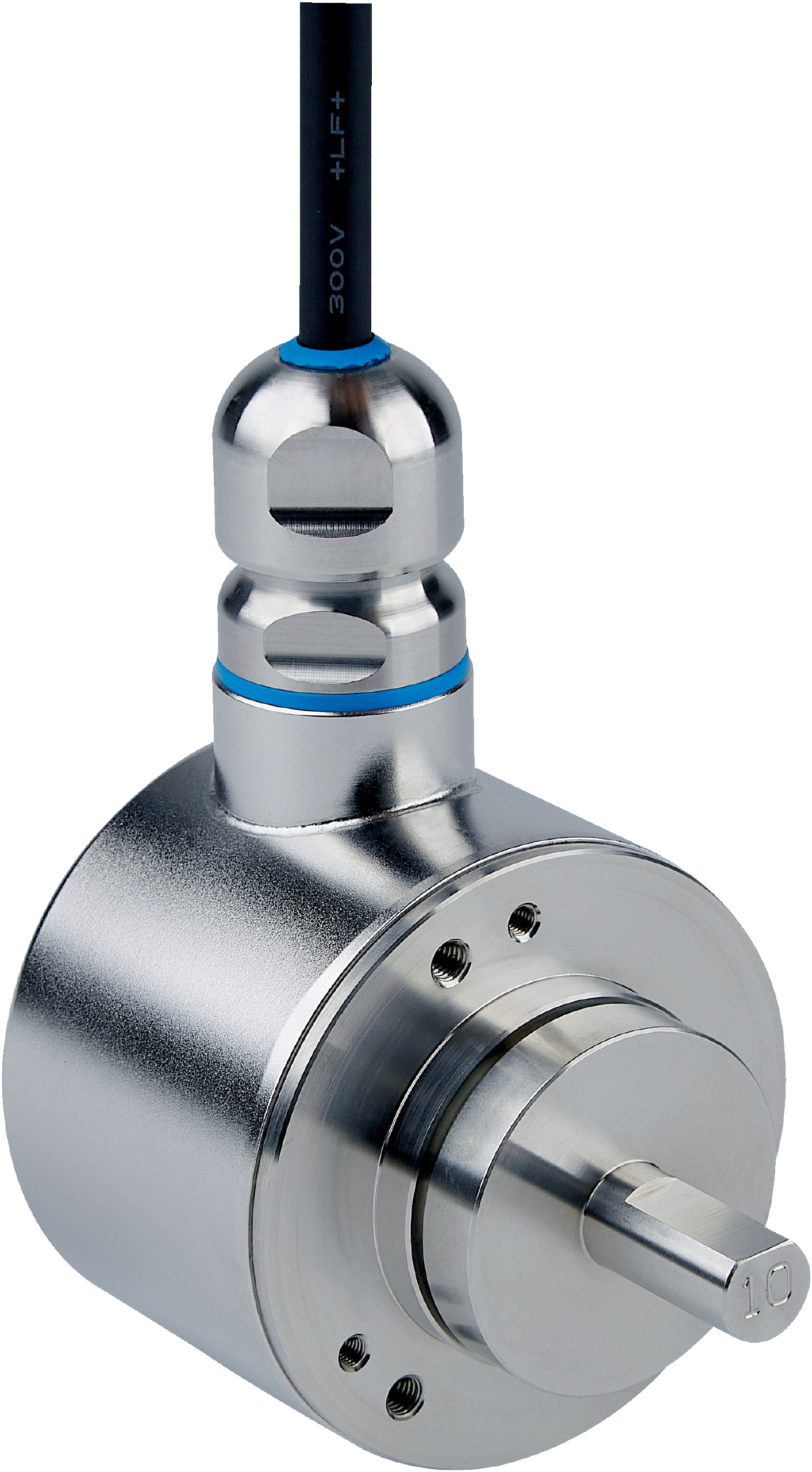

Incremental Rotary Encoder | 1024 Pulses/Rev | IP69K Rated | Stainless Steel Housing | by SICK
The Incremental Rotary Encoder DBS60I-W4FM01024 offers 1024 pulses per revolution and a robust IP69K rated stainless steel housing, making it ideal for industrial automation and safety-critical applications. With a wide operating temperature range of -30°C to +100°C and a high mechanical durability, this encoder ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1024
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18° per pulse
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL/HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: 8-wire cable, 5 m length
- Supply voltage: 4.5 to 30 V
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Flange type: Flange with 3 x M3 and 3 x M4 screws
- Materials: Stainless steel V4A (316L) for shaft, flange, housing; TPU cable; FKM80 shaft sealing ring
- Start up torque: 1 Ncm at +20°C
- Operating torque: 0.9 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 6000 min⁻¹
- Moment of inertia of rotor: 45 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP69K (IEC 60529)
- Operating temperature range: -30°C to +100°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.7 kg
Key Features
- High reliability with MTTFD of 500 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL signals
- 6-channel output with up to 300 kHz frequency
- Robust stainless steel V4A (316L) housing, shaft, and flange
- IP69K rated enclosure for high protection against dust and water
- Wide operating temperature range from -30°C to +100°C
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 0.5 W without load
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool feedback
- Conveyor and material handling systems
- Safety-related monitoring in machinery
