Incremental Rotary Encoder | 1024 Pulses/Rev | IP69K Rated | Stainless Steel Housing | by SICK

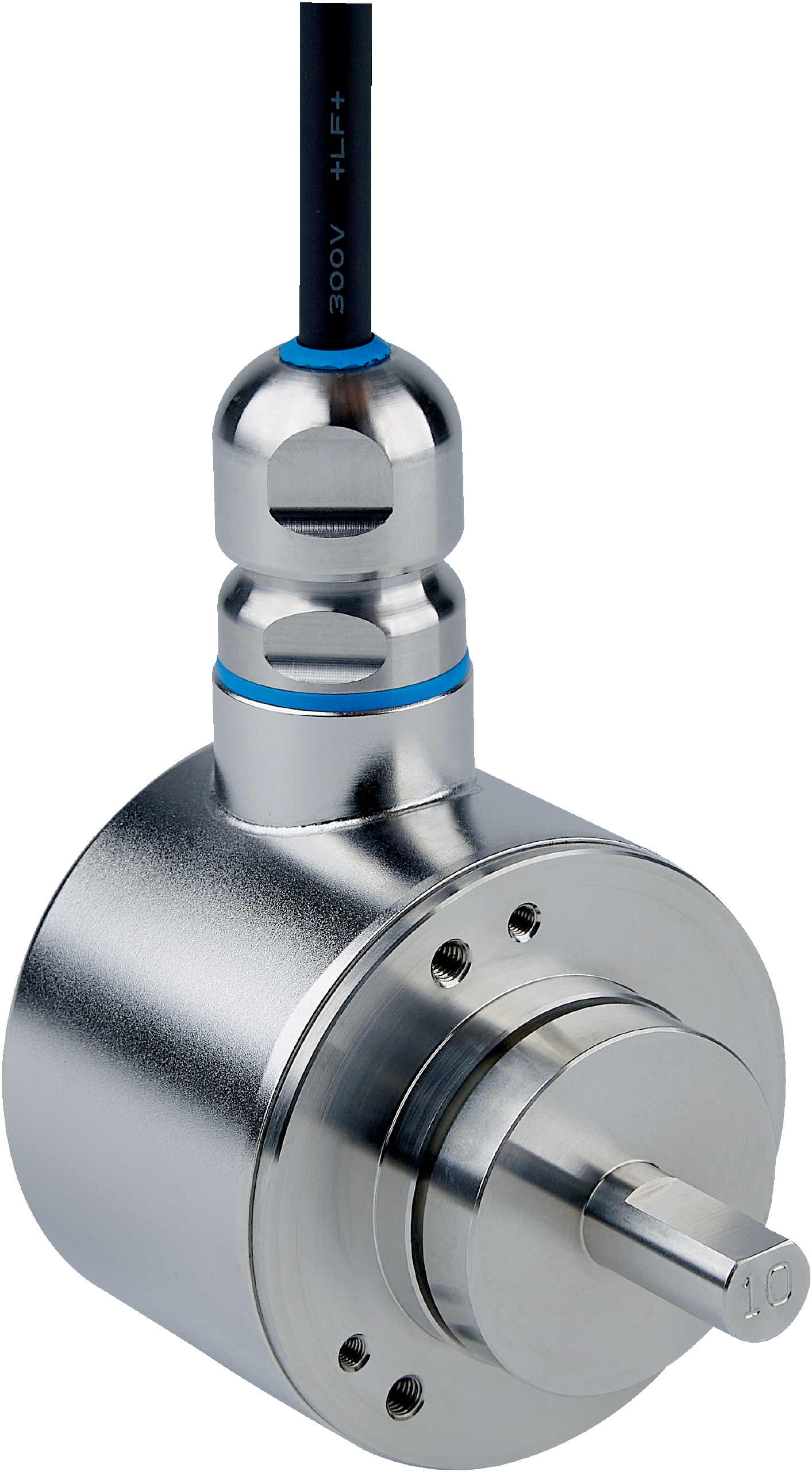

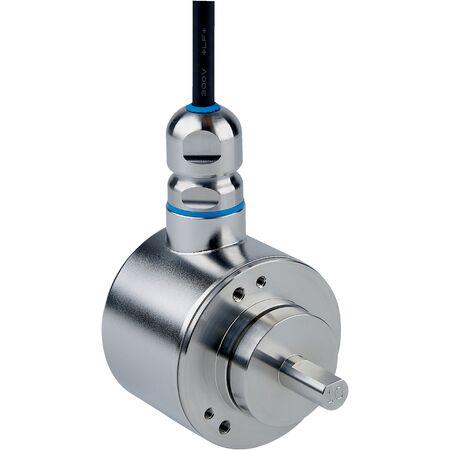

The Incremental Rotary Encoder DBS60I-W4FN01024 features a high resolution of 1,024 pulses per revolution and an IP69K rating for superior protection against dust and high-pressure water. Ideal for industrial automation and motion control applications, this encoder is built with a robust stainless steel housing, ensuring durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18° per pulse
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL/HTL, 6-channel
- Initialization time: < 5 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: 8-wire radial cable, 10 m length
- Supply voltage: 4.5 to 30 V
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Flange with 3 x M3 and 3 x M4 mounting holes
- Operating speed: ≤ 6,000 min⁻¹
- Start-up torque: 1 Ncm at +20°C
- Operating torque: 0.9 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Moment of inertia of rotor: 45 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP69K (IEC 60529)
- Operating temperature range: -30°C to +100°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.7 kg
Key Features
- Incremental communication interface with TTL/HTL signals
- High resolution with 1,024 pulses per revolution
- Robust stainless steel V4A (316L) housing, shaft, and flange
- IP69K rated for protection against dust and high-pressure water jets
- Wide operating temperature range from -30°C to +100°C
- Short-circuit and reverse polarity protection
- Low power consumption of ≤ 0.5 W without load
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
- High resistance to shocks (100 g) and vibration (30 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of industrial encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor systems
- Machine tool feedback
- Packaging machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction extends product lifespan, reducing waste
- Low power consumption contributes to energy efficiency in industrial systems
- High resistance to environmental factors reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60I-W4FN01024 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
