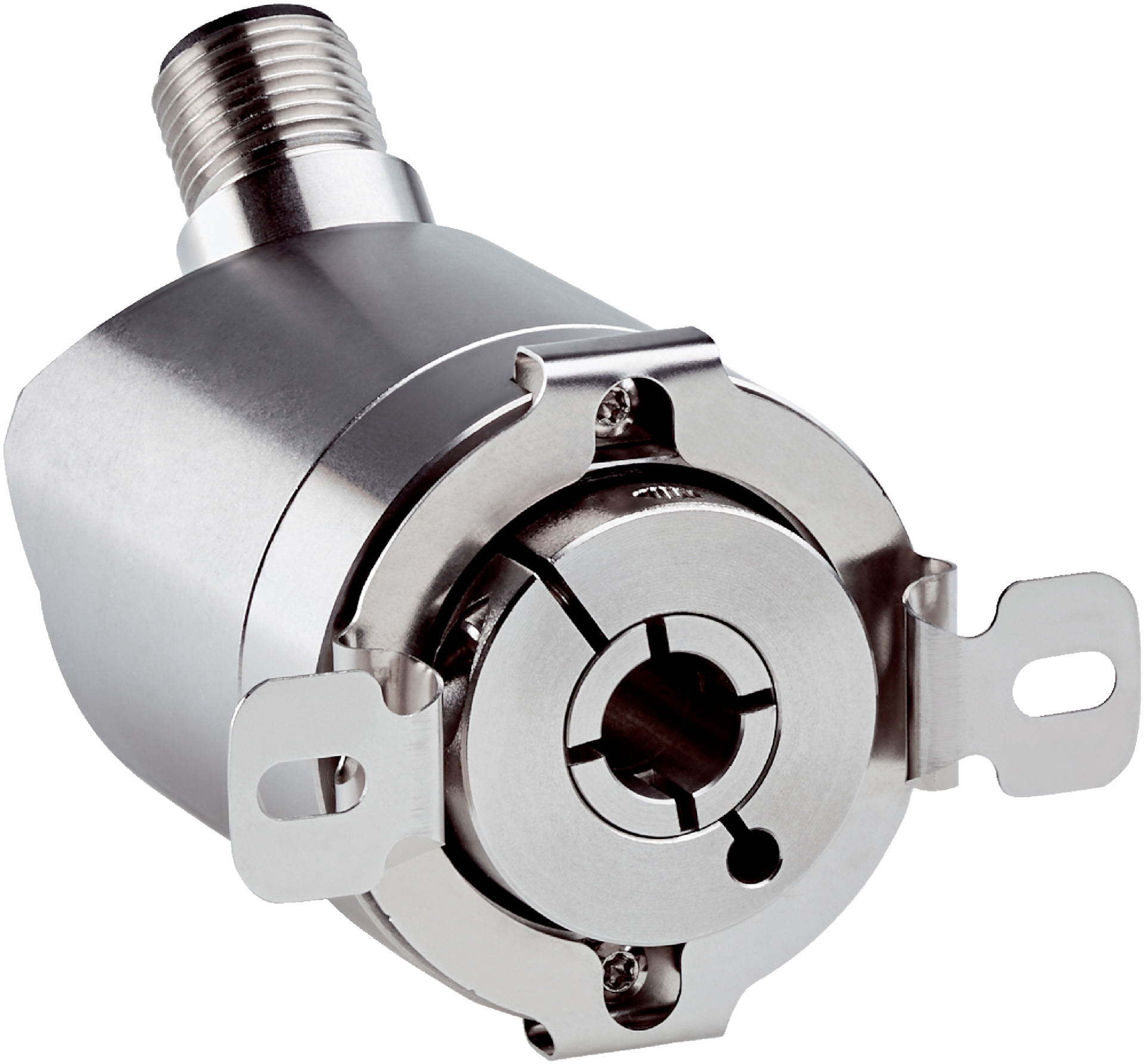

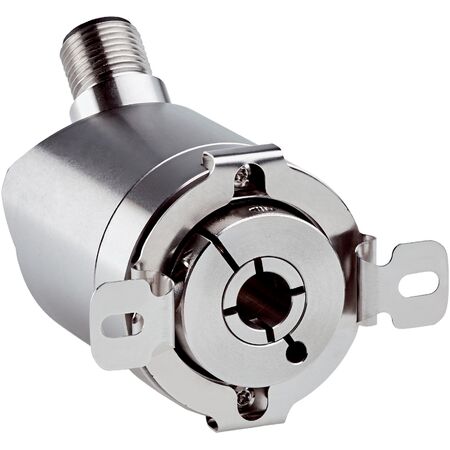

Incremental Rotary Encoder AHS36I-BDAC001024 | 1,024 Steps/Rev | IP67 & IP69K Rated | by SICK
The AHS36I-BDAC001024 incremental rotary encoder delivers high precision with 1,024 steps per revolution, making it ideal for industrial automation and motion control applications. With robust stainless steel housing and an IP67/IP69K rating, it withstands harsh environments while ensuring reliable performance. Designed for easy integration, this encoder is perfect for robotics, machine tool positioning, and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Mean time to dangerous failure (MTTFD): 230 years (EN ISO 13849-1)
- Maximum resolution: 1,024 steps per revolution (10 bit)
- Error limits: 0.35° at 20°C
- Repeatability standard deviation: 0.2° at 20°C
- Communication interface: SSI with Gray code
- Initialization time: 100 ms
- Position forming time: 125 µs
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male M12, 8-pin universal connector
- Mechanical design: Blind hollow shaft, 10 mm diameter
- Operating speed: up to 6,000 min⁻¹
- Operating temperature range: -40°C to +100°C
- Enclosure rating: IP67 and IP69K
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.2 kg
Key Features
- High resolution with 1,024 steps per revolution (10 bit)
- Robust stainless steel housing and shaft material (1.4305)
- IP67 and IP69K rated for protection against dust and water
- Wide operating temperature range from -40°C to +100°C
- Low operating torque less than 1 Ncm
- Reverse polarity protection included
- Communication via SSI interface with Gray code
- High mechanical durability with bearing lifetime of 2.0 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Conveyor systems and material handling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption (≤ 1.5 W) supports energy-efficient operation
- High resistance to shocks and vibrations reduces failure rates and maintenance needs
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AHS36I-BDAC001024 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
