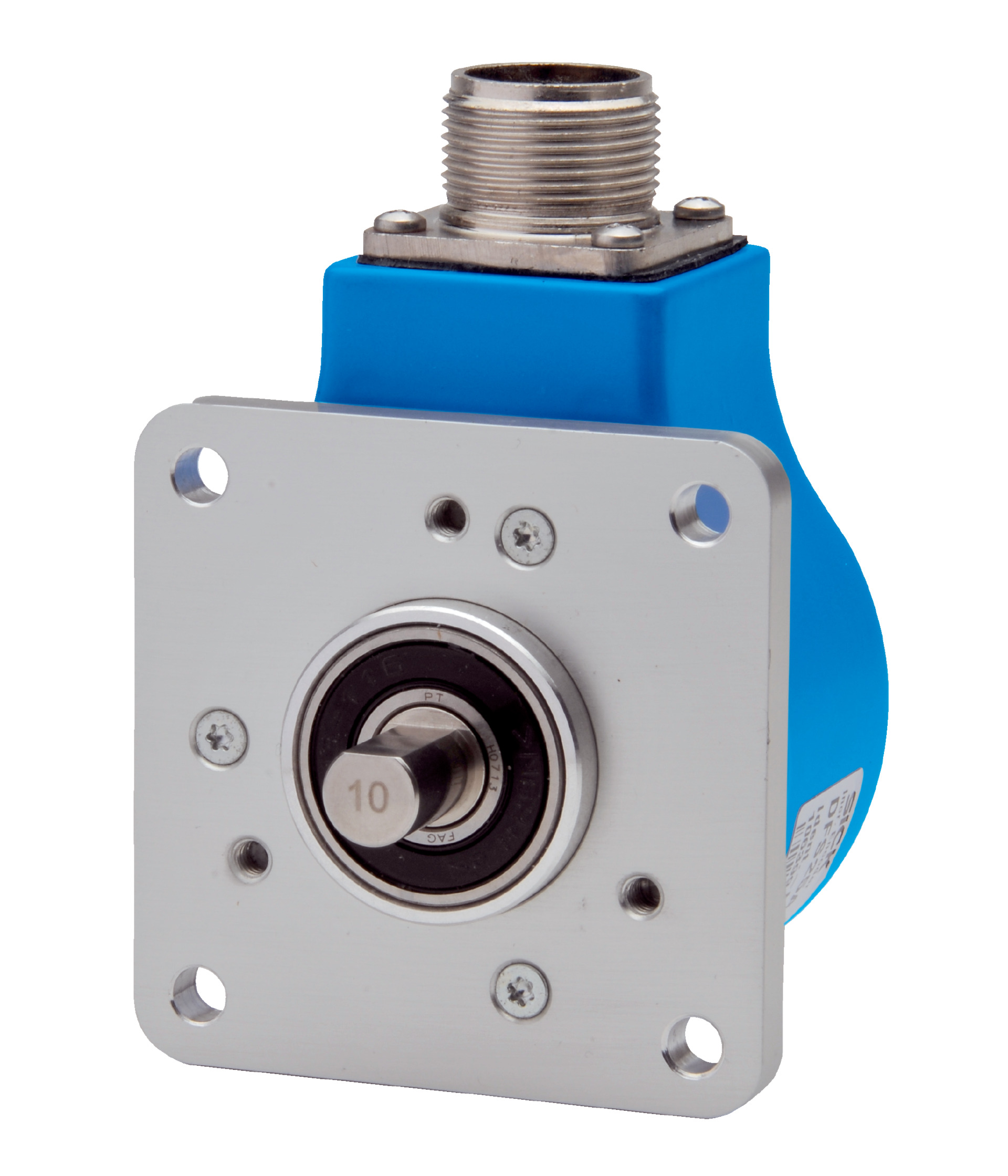

Incremental Rotary Encoder | 1024 PPR | IP65/IP67 Rated | Robust Design | by SICK
The Incremental Rotary Encoder offers high resolution with 1,024 pulses per revolution, making it ideal for industrial automation and control systems. With a robust mechanical design and IP65/IP67 ratings for dust and water protection, this encoder ensures reliable performance in demanding environments. Perfect for robotics, machine tool positioning, and safety monitoring, it features low start-up torque and a long bearing lifetime for enhanced efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step deviation: ±0.008° pulses 100 to 10,000
- Error limits: ±0.03°
- Communication interface: Incremental TTL/HTL, 6-channel output
- Supply voltage: 4.75 to 30 V
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, MS, 10-pin, radial
- Shaft diameter: 3/8 inch with flat
- Shaft length: 19 mm
- Materials: Stainless steel shaft, aluminum flange and housing
- Operating temperature range: -30 °C to +85 °C
- Enclosure rating: IP65 shaft side, IP67 housing side
- Start-up torque: 0.5 Ncm
- Operating torque: 0.3 Ncm
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: up to 9,000 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 58mm x 80mm x 58mm
- Weight: 0.4 kg
Key Features
- High resolution with 1,024 pulses per revolution
- Robust mechanical design with solid shaft and square flange
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Reverse polarity and short-circuit protection
- Low start-up torque of 0.5 Ncm and operating torque of 0.3 Ncm
- Operating speed up to 9,000 min⁻¹
- Long bearing lifetime of 3.6 x 10⁹ revolutions
- Programmable and configurable output with 6 signal channels
- Fast initialization time of 40 ms
- Complies with EMC standards EN 61000-6-2 and EN 61000-6-3
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and configuration.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool positioning and feedback
- Safety-related monitoring in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 0.7 W improves energy efficiency
- High reliability reduces downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS25A-A2P2D001024 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
