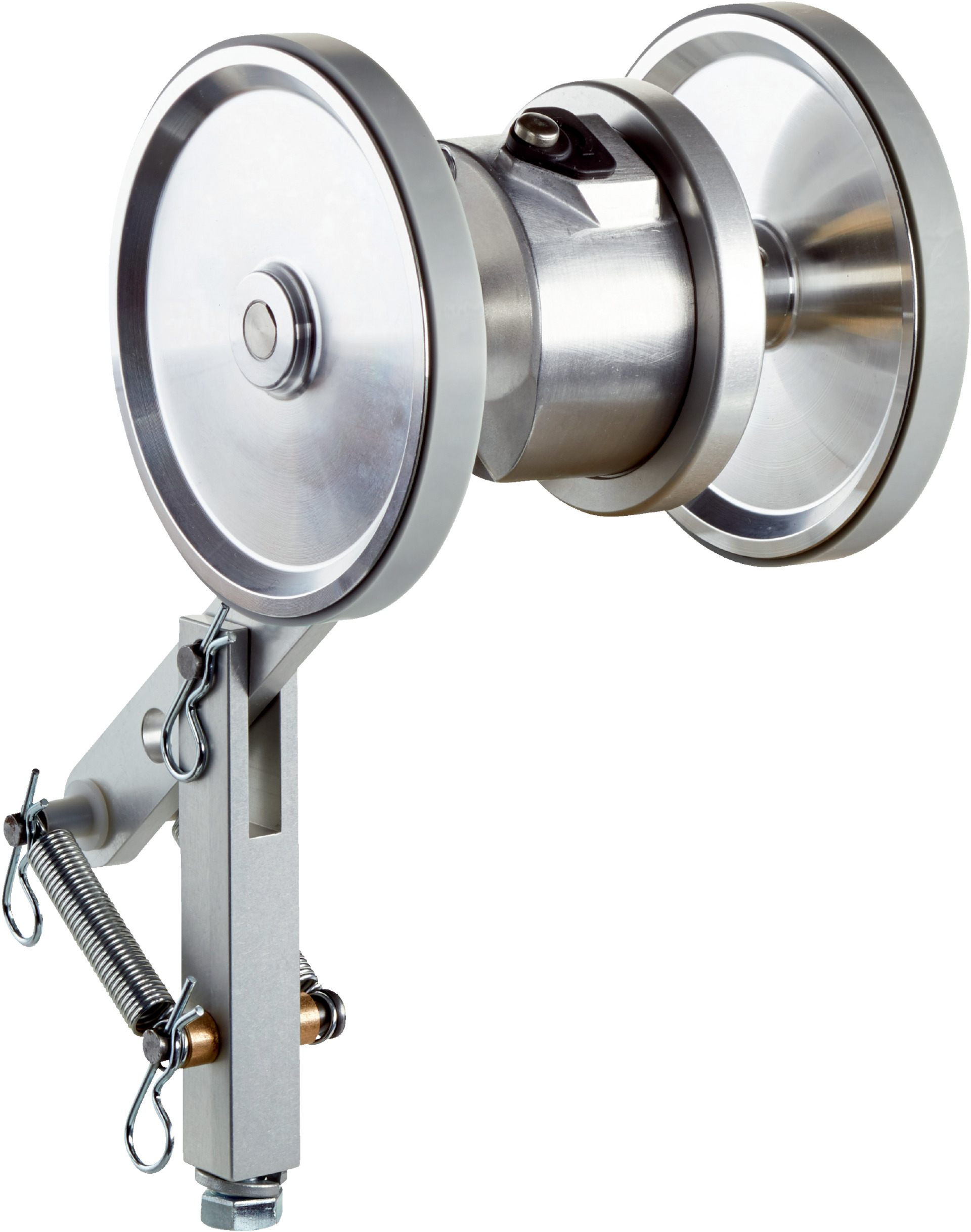

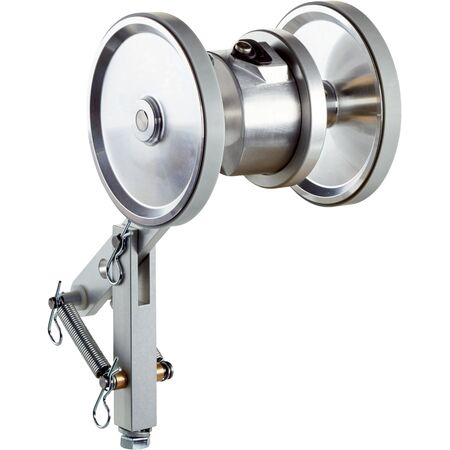

Incremental Rotary Encoder | 12-Inch Measuring Wheel | IP65 Rated | 60 kHz Output Frequency | by SICK
The Incremental Rotary Encoder DUV60E-D4KFGAAA is designed for precise measurement in industrial automation, featuring a 12-inch measuring wheel and adjustable pulses per revolution from 1 to 2400. With an IP65 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for conveyor systems, robotics, and packaging machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1 to 2400 (type-dependent)
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18°
- Duty cycle: 0.5 ± 5%
- Initialization time: < 5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data: DIP switch selectable output
- Operating power consumption (no load): 120 mA
- Supply voltage: 4.75 V to 30 V
- Load current max per channel: ≤ 30 mA
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180° electric, gated with A
- Reverse polarity and short-circuit protection included
- Measuring wheel circumference: 12 inches
- Operating speed: 1500 min⁻¹
- Start up torque: 0.5 Ncm
- Operating torque: 0.4 Ncm
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Maximum travel/deflection of spring arm: 40 mm
- Recommended pretension: 20 mm
- Max permissible working area for spring: ±10 mm
- Enclosure rating: IP65
- Operating temperature range: -30°C to +70°C
- Storage temperature range: -40°C to +75°C
- Resistance to shocks: 100 g
- Resistance to vibration: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 120mm x 150mm x 120mm
- Weight: 0.9 kg
Key Features
- High reliability with mean time to dangerous failure (MTTFD) of 275 years
- Incremental communication interface with TTL/HTL output
- Adjustable pulses per revolution from 1 to 2400
- Measuring wheel circumference of 12 inches with smooth urethane surface
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for dust and water resistance
- Wide operating temperature range from -30°C to +70°C
- Short-circuit and reverse polarity protection
- Low power consumption with max 1.25 W
- High maximum output frequency of 60 kHz
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with incremental encoders and industrial automation equipment to ensure proper connection and calibration.
Applications
- Industrial automation for precise measurement of linear or rotary motion
- Conveyor belt speed and position monitoring
- Material handling systems
- Packaging machinery
- Robotics and assembly lines requiring accurate position feedback
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption minimizes energy usage
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-D4KFGAAA incremental encoder is available for immediate purchase, ideal for industrial automation and material handling applications requiring precise motion measurement.
