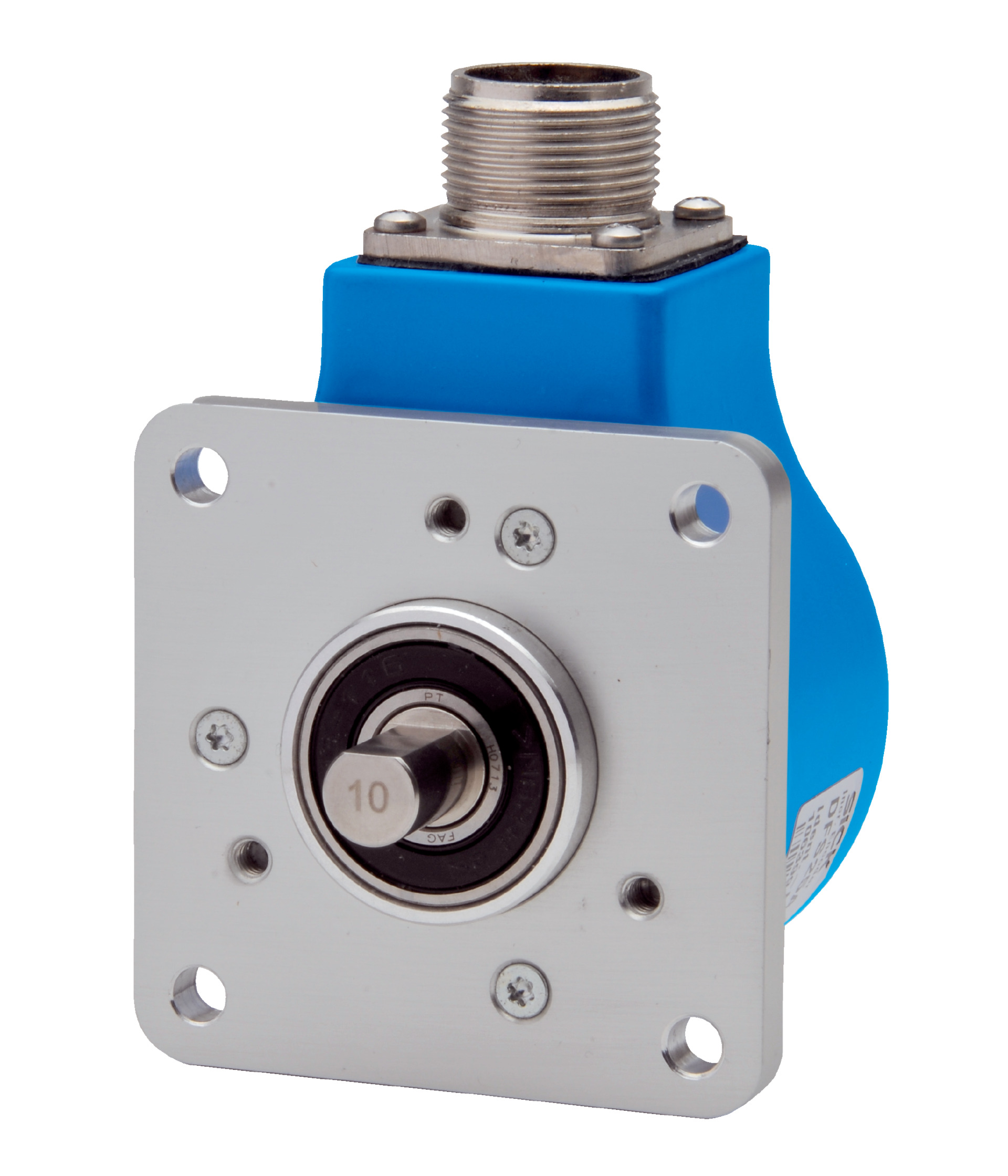

Incremental Rotary Encoder DFS25A-A2D2E001200 | 1200 Pulses/Rev | IP65/IP67 Rated | by SICK
The Incremental Rotary Encoder DFS25A-A2D2E001200 offers high precision with 1,200 pulses per revolution, making it ideal for industrial automation and control systems. Designed for durability, it features a robust stainless steel shaft and aluminum housing, along with IP65/IP67 ratings for dust and water protection. Perfect for applications in robotics, conveyor systems, and machine tool positioning, this encoder ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1,200
- Measuring step deviation: ±0.008° pulses 100 to 10,000
- Error limits: ±0.03°
- Communication interface: Incremental, Open Collector
- Number of signal channels: 6
- Output frequency: 150 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, MS, 7-pin, radial
- Supply voltage: 8 to 30 V
- Shaft diameter: 3/8 inch with flat
- Shaft length: 19 mm
- Operating temperature range: -30°C to +85°C
- Enclosure rating: IP65 shaft side, IP67 housing side
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 90mm x 58mm
- Weight: 0.4 kg
Key Features
- High resolution with 1,200 pulses per revolution
- Robust solid shaft design with stainless steel shaft and aluminum housing
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Reverse polarity and short-circuit protection
- Low power consumption of 0.7 W without load
- Fast initialization time of 40 ms
- High operating speed up to 9,000 min⁻¹
- Durable bearing lifetime of 3.6 x 10⁹ revolutions
- Supports 6-channel incremental communication with open collector interface
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool positioning and feedback
- Safety-related monitoring in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS25A-A2D2E001200 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
