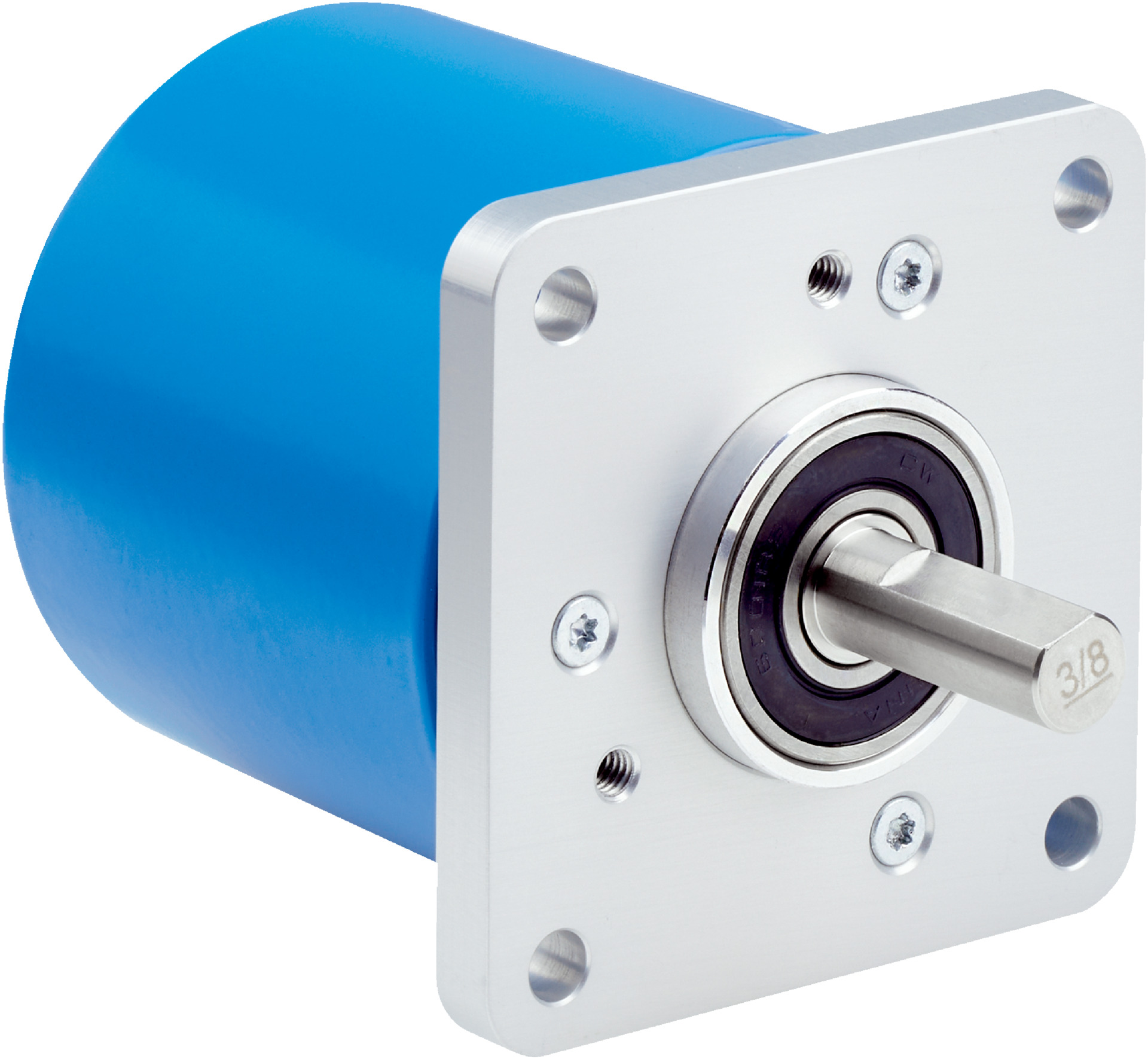

Incremental Rotary Encoder | 1500 Pulses/Rev | IP65/IP67 Rated | by SICK
The Incremental Rotary Encoder offers high precision with 1500 pulses per revolution and a robust design, making it ideal for industrial automation and motion control applications. With an IP65 rated shaft side and IP67 rated housing, it ensures protection against dust and water, while operating efficiently in temperatures ranging from -30°C to +85°C. Perfect for robotics, machine tools, and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1,500
- Measuring step deviation: ±0.008°
- Error limits: ±0.03°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Output frequency: 820 kHz
- Load current: 30 mA
- Operating current: 50 mA (without load)
- Supply voltage: 4.5 to 5.5 V
- Shaft diameter: 3/8 inch with flat
- Shaft length: 19 mm
- Operating speed: up to 9,000 min⁻¹
- Enclosure rating: IP65 (shaft side), IP67 (housing side)
- Operating temperature range: -30°C to +85°C
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.4 kg
Key Features
- High resolution with 1,500 pulses per revolution
- Robust mechanical design with solid shaft and square flange
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Reverse polarity and short-circuit protection
- Operating temperature range from -30°C to +85°C
- Low operating torque of 0.3 Ncm
- High bearing lifetime of 3.6 x 10^9 revolutions
- Fast initialization time of 40 ms
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool feedback
- Conveyor and material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation supports sustainable industrial automation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

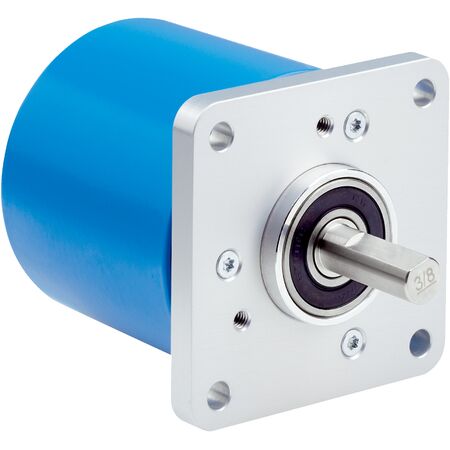

The SICK DFS25A-A2AA7001500 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
