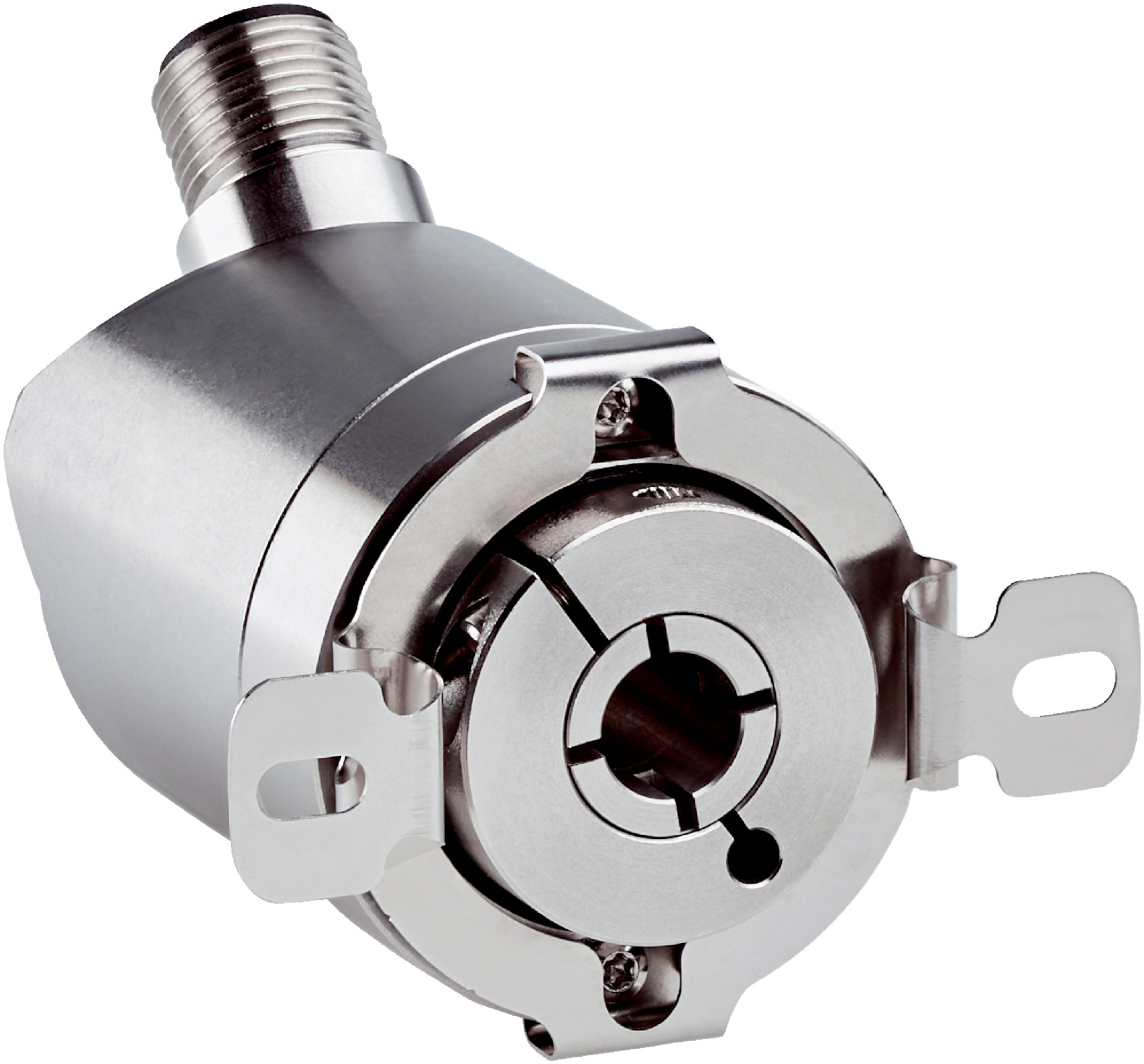

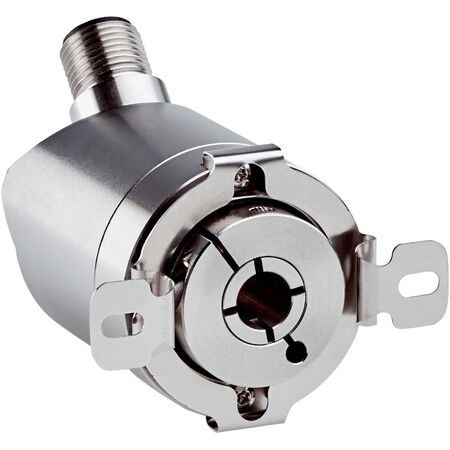

Incremental Rotary Encoder | 16,384 Steps/Rev | IP67 & IP69K Rated | -40°C to +100°C Operating Temp | by SICK
The Incremental Rotary Encoder AHM36I-BBPC014x12 offers high precision with a maximum resolution of 16,384 steps per revolution and a robust design for industrial applications. With an IP67 and IP69K rating, it ensures protection against dust and water, making it ideal for harsh environments. Perfect for robotics, machine tools, and conveyor systems, this encoder operates efficiently across a wide temperature range from -40°C to +100°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 230 years (EN ISO 13849-1)
- Max resolution: 16,384 steps/rev x 4,096 revolutions (14 bit x 12 bit)
- Error limits G: 0.35° at 20°C
- Repeatability standard deviation σr: 0.2° at 20°C
- Communication interface: SSI
- Initialization time: 100 ms
- Position forming time: 125 µs
- Code type: Gray, binary
- Clock frequency: 2 MHz
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector, M12, 8-pin
- Mechanical design: Blind hollow shaft, 8 mm diameter
- Operating speed: ≤ 6,000 min⁻¹
- Operating temperature range: -40°C to +100°C
- Enclosure rating: IP67 and IP69K
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- Robust stainless steel housing and shaft for durability
- IP67 and IP69K rated for protection against dust and water
- Wide operating temperature range from -40°C to +100°C
- Reverse polarity protection and low power consumption (≤ 1.5 W)
- Blind hollow shaft with front clamp for secure mounting
- High mechanical endurance with bearing lifetime of 2.0 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper alignment and connection.
Applications
- Industrial automation for precise position measurement
- Robotics and motion control systems
- Machine tool feedback
- Conveyor and material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AHM36I-BBPC014x12 incremental encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
