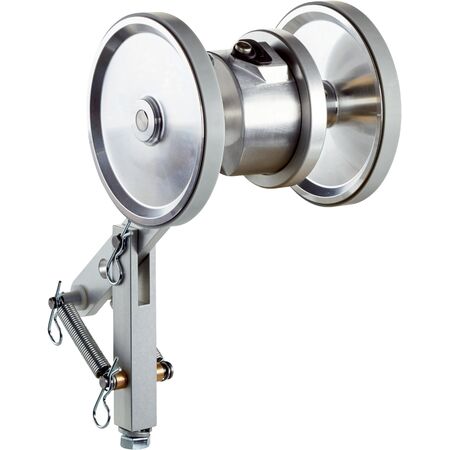

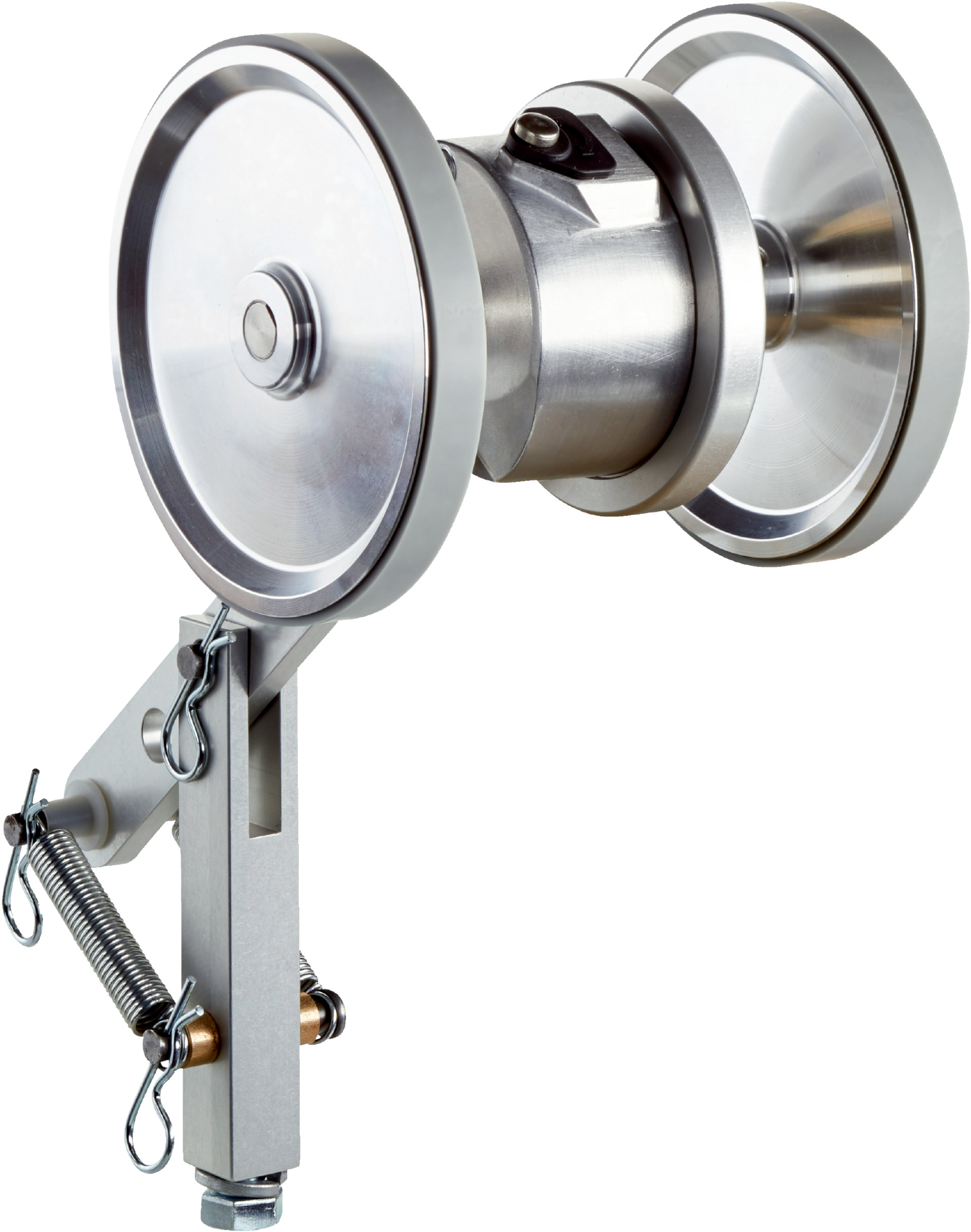

Incremental Rotary Encoder | 1 to 2400 Pulses/Rev | IP65 Enclosure | by SICK
The Incremental Rotary Encoder is designed for precise measurement of rotational position and speed, featuring adjustable pulses per revolution from 1 to 2400. With a robust aluminum housing and an IP65 enclosure rating, it’s perfect for industrial automation, conveyor systems, and robotics. Built to withstand harsh environments, it operates efficiently in temperatures from -30°C to +70°C, ensuring reliability in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1 to 2400 (type-dependent)
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse
- Measuring step: 90° electric/pulses per revolution with ±18° deviation
- Duty cycle: 0.5 ± 5%
- Initialization time: < 5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data via DIP switch
- Operating power consumption (no load): 120 mA
- Supply voltage: 4.75 V to 30 V
- Load current max per channel: ≤ 30 mA
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180° electric, gated with A
- Spring arm max travel: 40 mm
- Operating speed max: 1500 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Enclosure rating: IP65
- Operating temperature: -30°C to +70°C
- Storage temperature: -40°C to +75°C
- Shock resistance: 100 g
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 80mm x 150mm x 120mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Adjustable pulses per revolution from 1 to 2400
- Robust aluminum housing with IP65 enclosure rating
- Spring arm design with under-belt yoke mount for stable measuring wheel contact
- Operating temperature range from -30°C to +70°C
- Reverse polarity and short-circuit protection
- High resistance to shocks (100 g) and vibration (30 g, 10 Hz to 2000 Hz)
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper mounting, electrical connection, and compliance with safety standards.
Applications
- Industrial automation for precise measurement of rotational position and speed
- Conveyor belt systems for length and speed monitoring
- Material handling and packaging machinery
- Robotics and motion control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of ≤1.25 W reduces energy usage
- Durable materials and long bearing lifetime minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-D4KFGCAB incremental encoder is available for immediate purchase, ideal for industrial automation and measurement applications.
