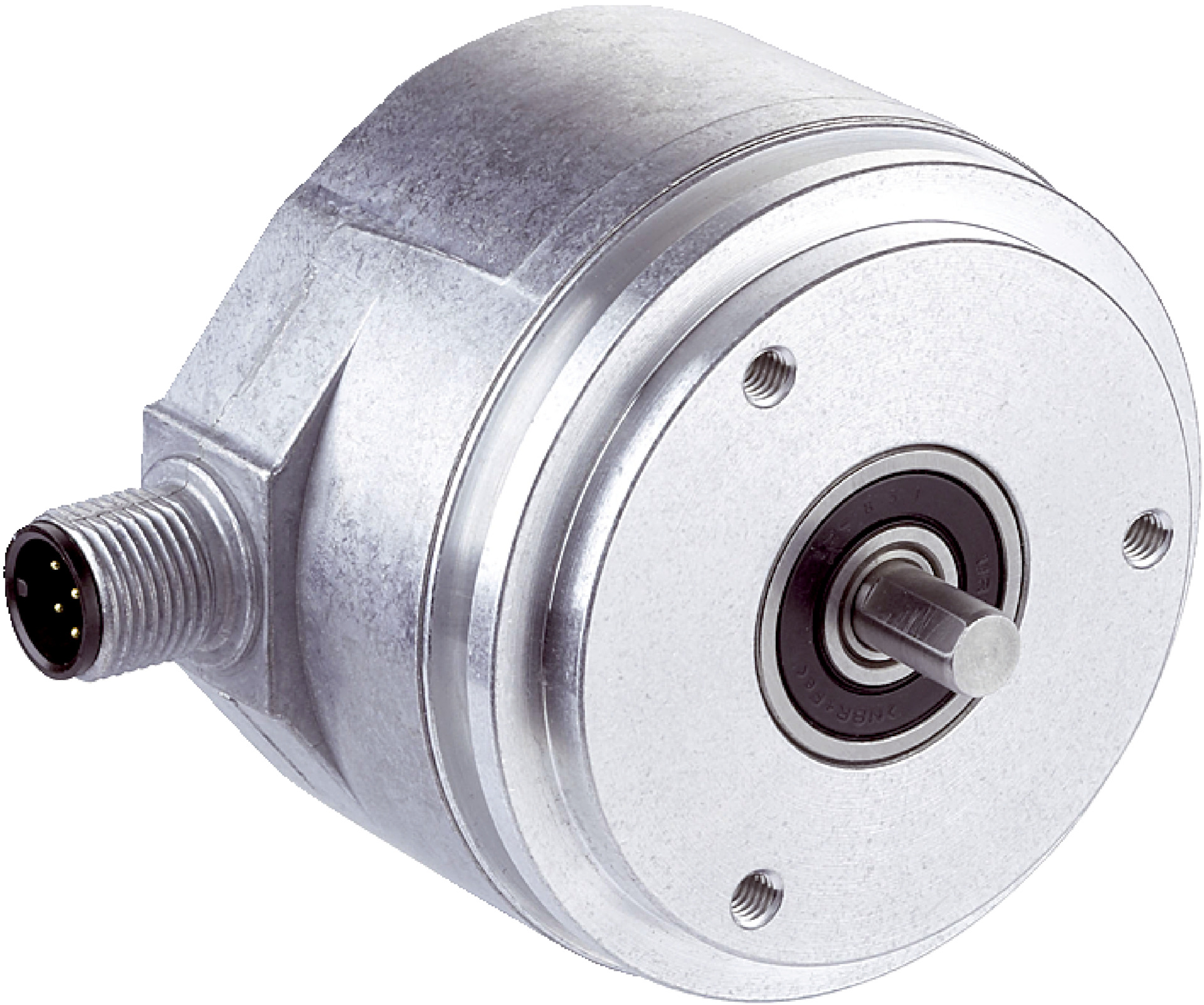

Incremental Rotary Encoder SICK DFS60E-S1EC00200 | 200 Pulses/Rev | IP67 Rated | by SICK
The SICK DFS60E-S1EC00200 incremental rotary encoder delivers precise position and speed measurement with 200 pulses per revolution and a robust IP67-rated housing. Ideal for industrial automation and robotics, it features a solid shaft design and high operating speed of up to 9,000 min⁻¹, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 200
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±0.2°
- Error limits: ±0.3°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 10 to 32 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: 0.5 Ncm at +20 °C
- Operating torque: 0.3 Ncm at +20 °C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: 0 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Resistance to shocks: 50 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- Incremental communication interface with HTL / Push pull
- 6-channel signal output
- High operating speed up to 9,000 min⁻¹
- Solid shaft with 6 mm diameter and flat
- Robust aluminum die cast housing with IP67 rating on housing side
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 0.5 W
- High mechanical durability with bearing lifetime of 3.6 x 10^10 revolutions
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with incremental encoders and industrial electrical standards to ensure proper connection and safety.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Position and speed measurement in manufacturing
- Machine tool and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60E-S1EC00200 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
