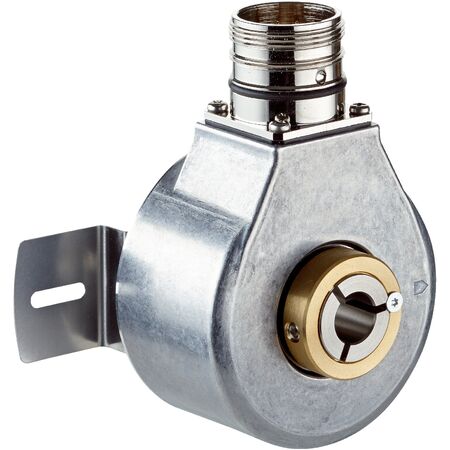

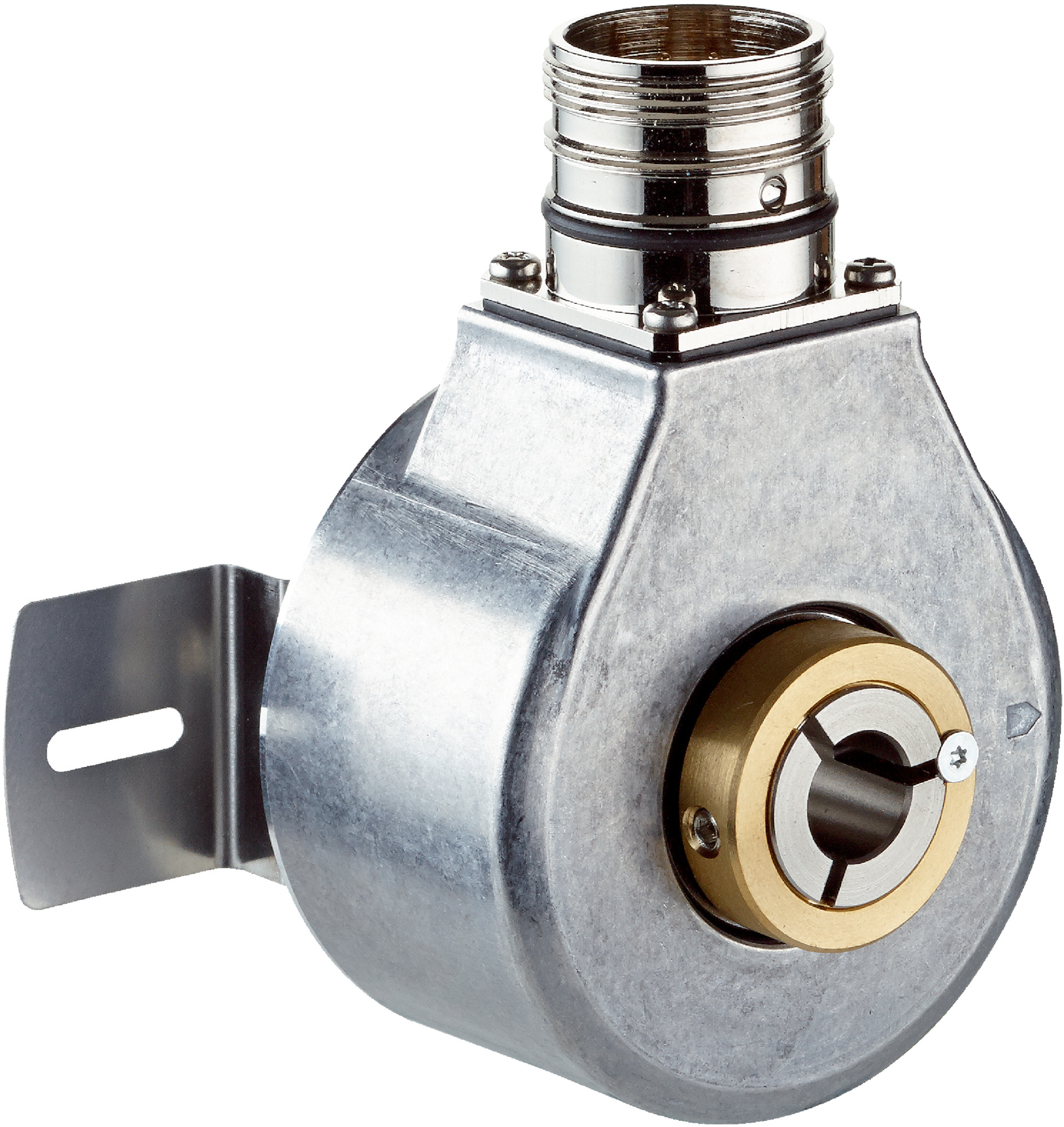

Incremental Rotary Encoder DBS60E-REFA02000 | 2000 Pulses/Rev | IP65 Rated | by SICK
The Incremental Rotary Encoder DBS60E-REFA02000 offers 2000 pulses per revolution and a fast initialization time of under 5 ms, making it ideal for industrial automation and motion control applications. With an IP65 rating for dust and water protection, this encoder is built for reliability and precision in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Mean time to dangerous failure (MTTFD): 500 years (EN ISO 13849-1)
- Pulses per revolution: 2000
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 to 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection and short-circuit protection included
- Mechanical design: Through hollow shaft with 12 mm diameter rear clamping
- Flange type: 2-sided stator coupling, slot, screw hole circle 63–83 mm
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Start up torque: 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6000 min⁻¹
- Maximum operating speed: 9000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -30°C to +100°C (max 3000 pulses per revolution)
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 63mm x 83mm x 63mm
- Weight: 0.25 kg
Key Features
- High reliability with mean time to dangerous failure (MTTFD) of 500 years
- 2000 pulses per revolution for precise measurement
- 6-channel incremental communication interface (TTL/HTL)
- Fast initialization time under 5 ms
- Output frequency greater than 300 kHz
- Low power consumption of 0.5 W without load
- Robust mechanical design with through hollow shaft and stainless steel shaft
- IP65 rated housing and shaft side for dust and water protection
- Wide operating temperature range from -30°C to +100°C
- Resistance to shocks up to 250 g and vibration up to 30 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation for precise rotational position measurement
- Robotics and motion control systems
- Conveyor and material handling equipment
- Machine tool feedback systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK DBS60E-REFA02000 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
