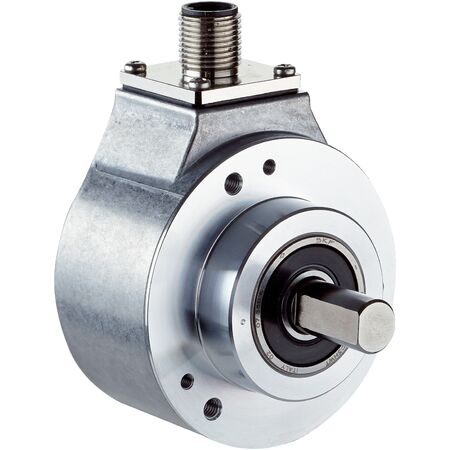

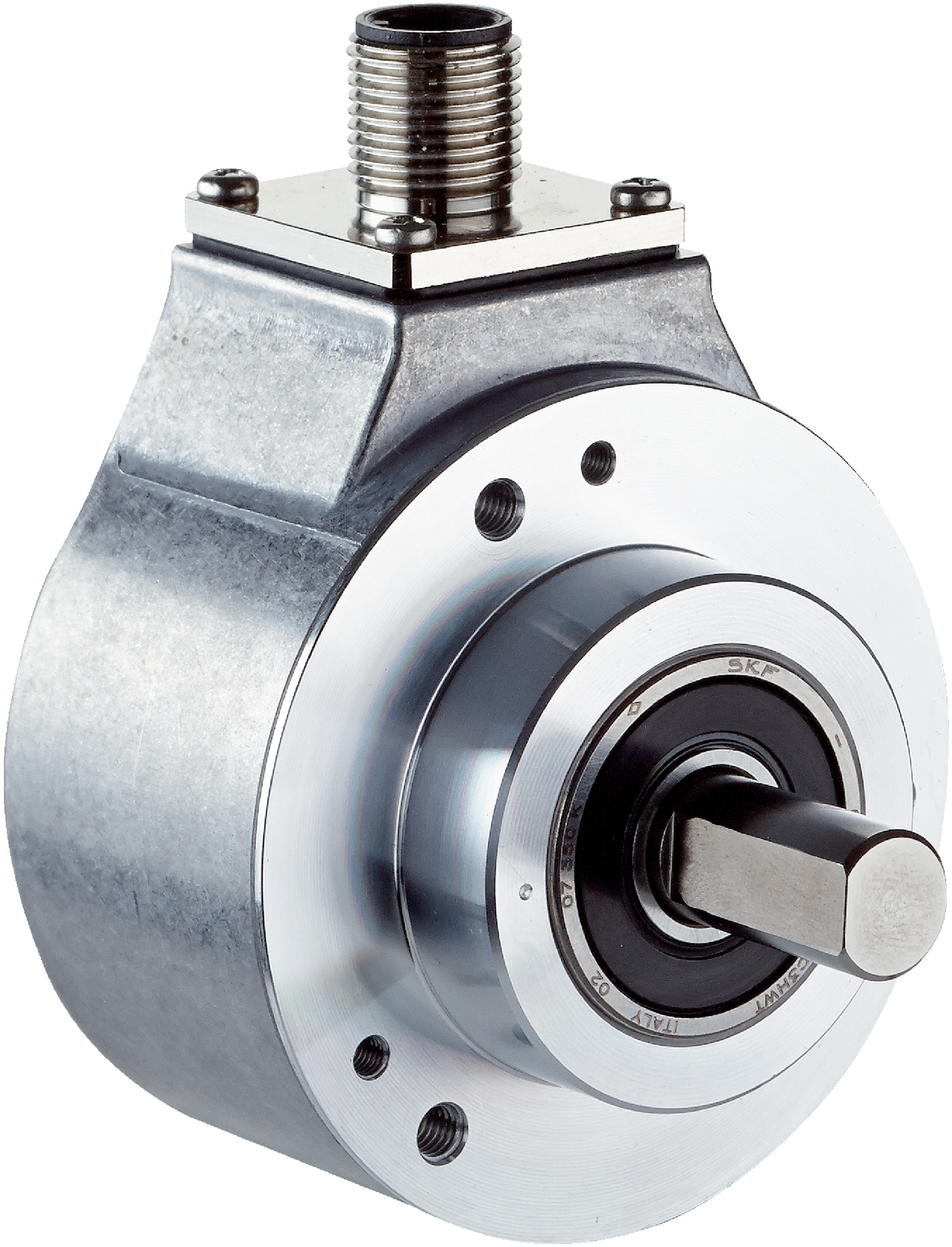

Incremental Rotary Encoder DBS60E-S4CC02000 | 2000 Pulses/Rev | IP67 & IP65 Rated | by SICK
The Incremental Rotary Encoder DBS60E-S4CC02000 offers high precision with 2000 pulses per revolution, making it ideal for industrial automation and robotics. Designed for harsh environments, it features an IP67 rated housing and IP65 shaft side, ensuring durability and reliability. With fast initialization under 5 ms and a robust stainless steel shaft, this encoder is perfect for motion control systems and conveyor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 2,000
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male M12, 8-pin radial connector
- Supply voltage: 10 to 30 V
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Flange type: Flange with 3 x M3 and 3 x M4
- Start up torque: > 1.2 Ncm at 20°C
- Operating torque: 1.1 Ncm at 20°C
- Permissible shaft loading: 100 N radial, 50 N axial
- Operating speed: 6,000 min⁻¹ (max 9,000 min⁻¹)
- Moment of inertia of rotor: 33 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Operating temperature range: -30°C to +100°C
- Storage temperature range: -40°C to +100°C
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Resistance to shocks: 250 g, 3 ms
- Resistance to vibration: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 40mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 2,000 pulses per revolution
- Robust solid shaft design with stainless steel shaft and aluminum housing
- IP67 rated housing side and IP65 shaft side for harsh environments
- Short-circuit and reverse polarity protection
- Fast initialization time under 5 ms
- Supports TTL / RS-422 incremental communication interface
- High operating speed up to 9,000 min⁻¹
- Long bearing lifetime of 3.6 x 10⁹ revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor systems and packaging machinery
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 0.5 W enhances energy efficiency
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK DBS60E-S4CC02000 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
