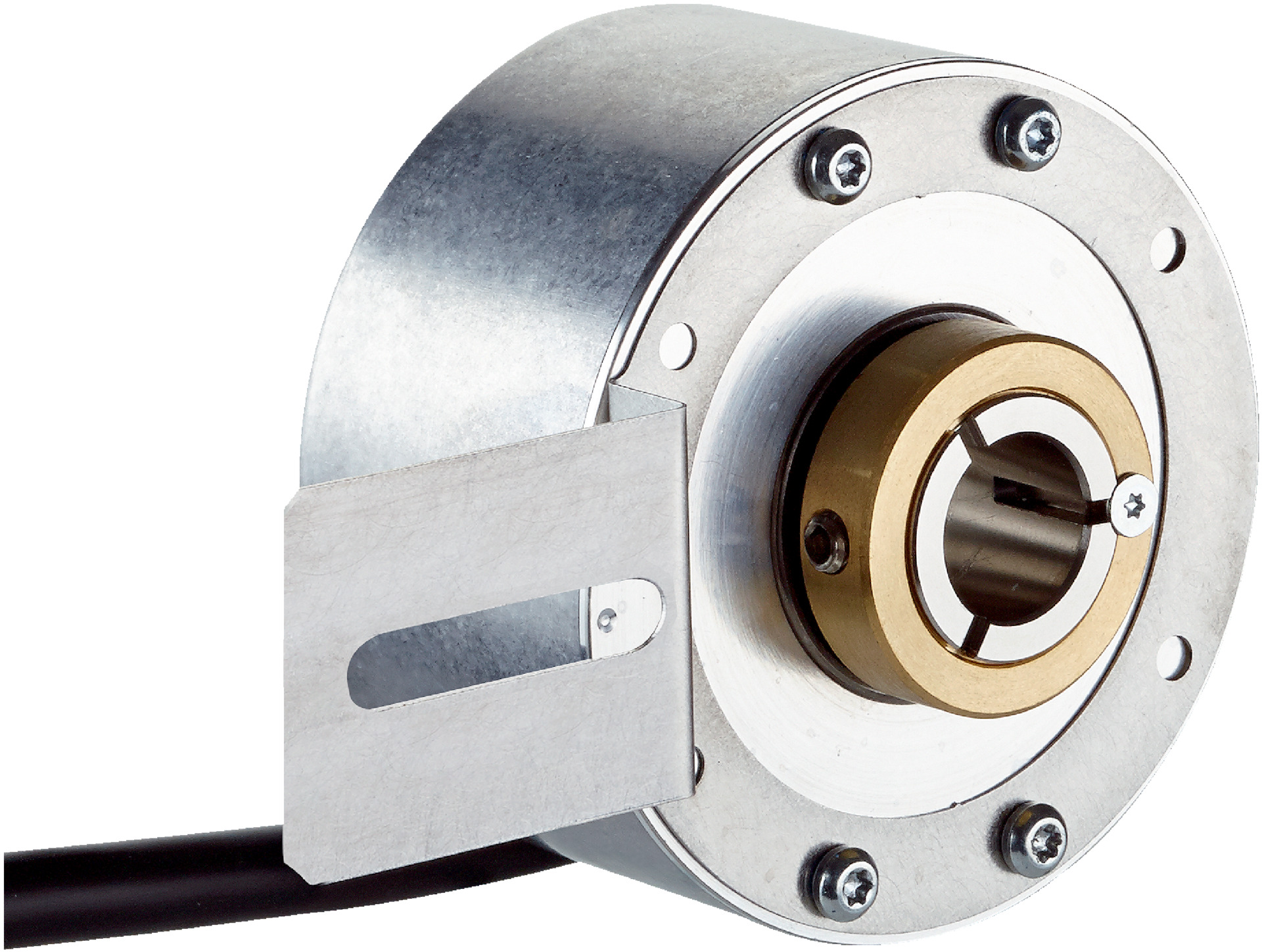

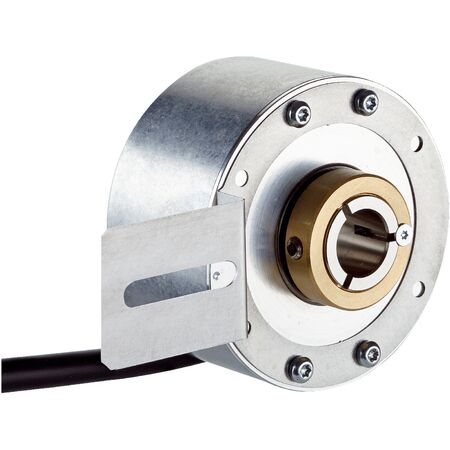

Incremental Rotary Encoder SICK DBS60E-BGAQD2000 | 2000 Pulses/Rev | IP67 Rated | by SICK
The SICK DBS60E-BGAQD2000 incremental rotary encoder delivers high precision with 2000 pulses per revolution, making it ideal for industrial automation and robotics. Its robust blind hollow shaft design and IP67 rated housing ensure durability and protection against dust and water, while the fast initialization time of under 5 ms enhances operational efficiency. Perfect for applications requiring accurate motion control and position feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 2,000
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulse
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 50 mA without load
- Connection type: 8-wire cable with M23 12-pin male connector, 0.5 m length
- Supply voltage: 4.5 to 5.5 V
- Mechanical design: Blind hollow shaft, 14 mm diameter
- Flange type: 1-sided stator coupling with slot, screw hole radius 31.5–48.5 mm
- Materials: Stainless steel shaft, aluminum flange and housing, PVC cable
- Start-up torque: > 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- High resolution with 2,000 pulses per revolution
- Robust blind hollow shaft mechanical design with stainless steel shaft
- IP67 rated housing for protection against dust and water
- Short-circuit and reverse polarity protection
- High operating speed up to 9,000 min⁻¹
- Low start-up and operating torque for minimal mechanical load
- Fast initialization time under 5 ms
- 6-channel incremental TTL/RS-422 communication interface
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation for precise rotational position measurement
- Robotics for accurate motion control
- Conveyor systems for speed and position feedback
- Machine tools requiring high-resolution incremental encoding
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK DBS60E-BGAQD2000 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
