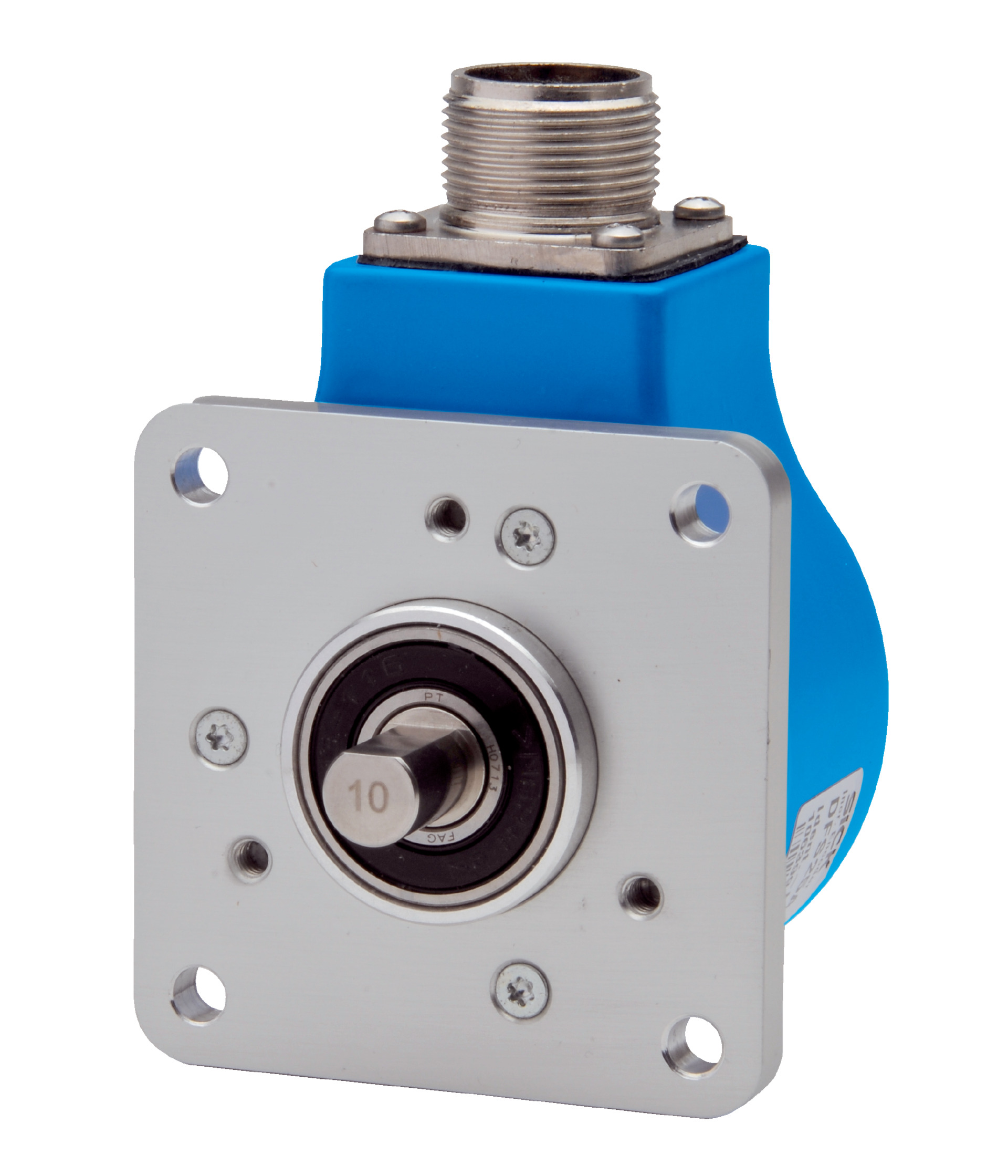

Incremental Rotary Encoder | 2048 PPR | IP65/IP67 Rated | High Speed 9000 RPM | by SICK
The Incremental Rotary Encoder offers a high resolution of 2048 pulses per revolution, making it ideal for industrial automation and precision motion control applications. With an IP65 rating on the shaft side and IP67 on the housing side, it withstands harsh environments while providing reliable performance. Designed for robotics and conveyor systems, this encoder features low power consumption and a long bearing lifetime, ensuring efficiency and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 2,048
- Measuring step deviation: ±0.008° pulses 100 to 10,000
- Error limits: ±0.03°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6-channel
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Supply voltage: 8 to 30 V
- Connection type: Male connector, MS, 10-pin, radial
- Shaft diameter: 3/8 inch with flat
- Shaft length: 19 mm
- Operating torque: 0.3 Ncm at +20°C
- Start up torque: 0.5 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: up to 9,000 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -30°C to +85°C
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 40mm x 80mm x 40mm
- Weight: 0.4 kg
Key Features
- High resolution with 2,048 pulses per revolution
- Robust mechanical design with solid shaft and square flange
- IP65 rated on shaft side and IP67 on housing side for harsh environments
- Reverse polarity and short-circuit protection
- Operating temperature range from -30°C to +85°C
- Low power consumption of 0.7 W without load
- High operating speed up to 9,000 min⁻¹
- Long bearing lifetime of 3.6 x 10⁹ revolutions
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor systems and material handling
- Precision measurement and positioning
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS25A-A2CAD002048 incremental encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
