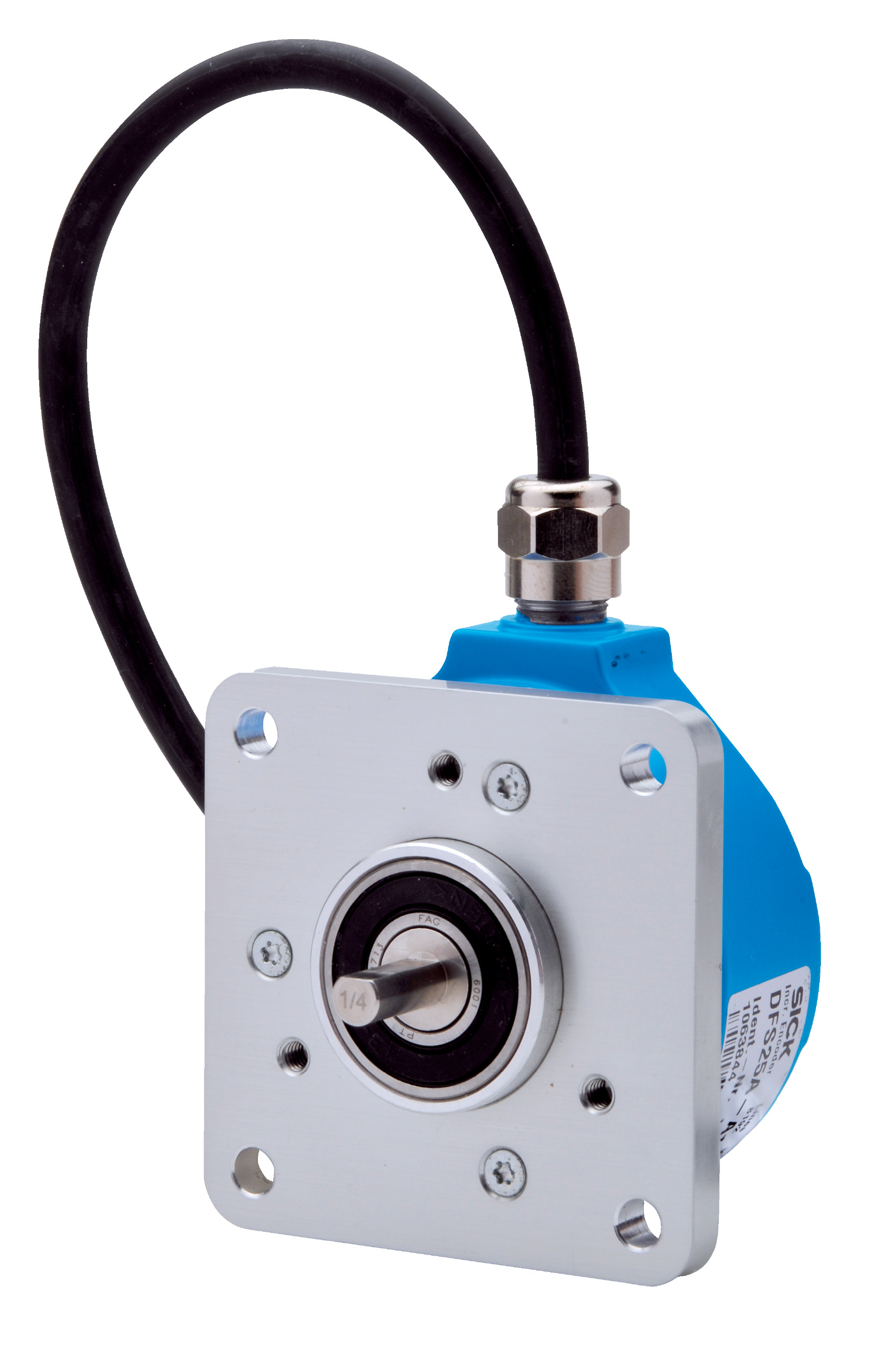

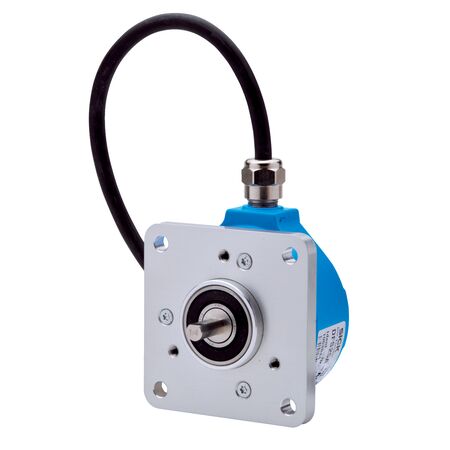

Incremental Rotary Encoder | 2048 PPR | IP65/IP67 Rated | Stainless Steel Shaft | by SICK
The Incremental Rotary Encoder with 2048 pulses per revolution is designed for precision in industrial automation and control systems. Featuring a robust stainless steel shaft and an IP65/IP67 rated enclosure, it ensures reliable performance in harsh environments. Ideal for robotics, conveyor systems, and machine tool positioning, this encoder offers fast initialization and high mechanical durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 2048
- Measuring step: ±90° electric/pulses per revolution
- Measuring step deviation: ±0.008° pulses 100 to 10,000
- Error limits: ±0.03°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- 0-set function: H-active, hardware pin controlled
- Initialization time: 40 ms
- Output frequency: 820 kHz
- Load current: 30 mA
- Operating current: 50 mA (without load)
- Connection type: 9-wire cable, radial, 1.5 m length
- Supply voltage: 4.5 to 5.5 V
- Mechanical design: Solid shaft, square flange
- Shaft diameter: 3/8 inch with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel 1.4305
- Flange and housing material: Aluminum
- Start up torque: 0.5 Ncm at 20°C
- Operating torque: 0.3 Ncm at 20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: up to 9000 min⁻¹
- Moment of inertia of rotor: 15 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: up to 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -30°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 11 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 58mm x 80mm x 58mm
- Weight: 0.4 kg
Key Features
- High resolution with 2048 pulses per revolution
- Robust solid shaft design with stainless steel shaft
- IP65/IP67 rated enclosure for harsh environments
- Reverse polarity and short-circuit protection
- Fast initialization time of 40 ms
- Operating temperature range from -30°C to +85°C
- High mechanical durability with bearing lifetime of 3.6 billion revolutions
- 6-channel incremental TTL/RS-422 communication interface
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting for optimal performance and safety.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool positioning and feedback
- Rotational speed and position measurement
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation minimizes power consumption in control systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS25A-A2ABL002048 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
