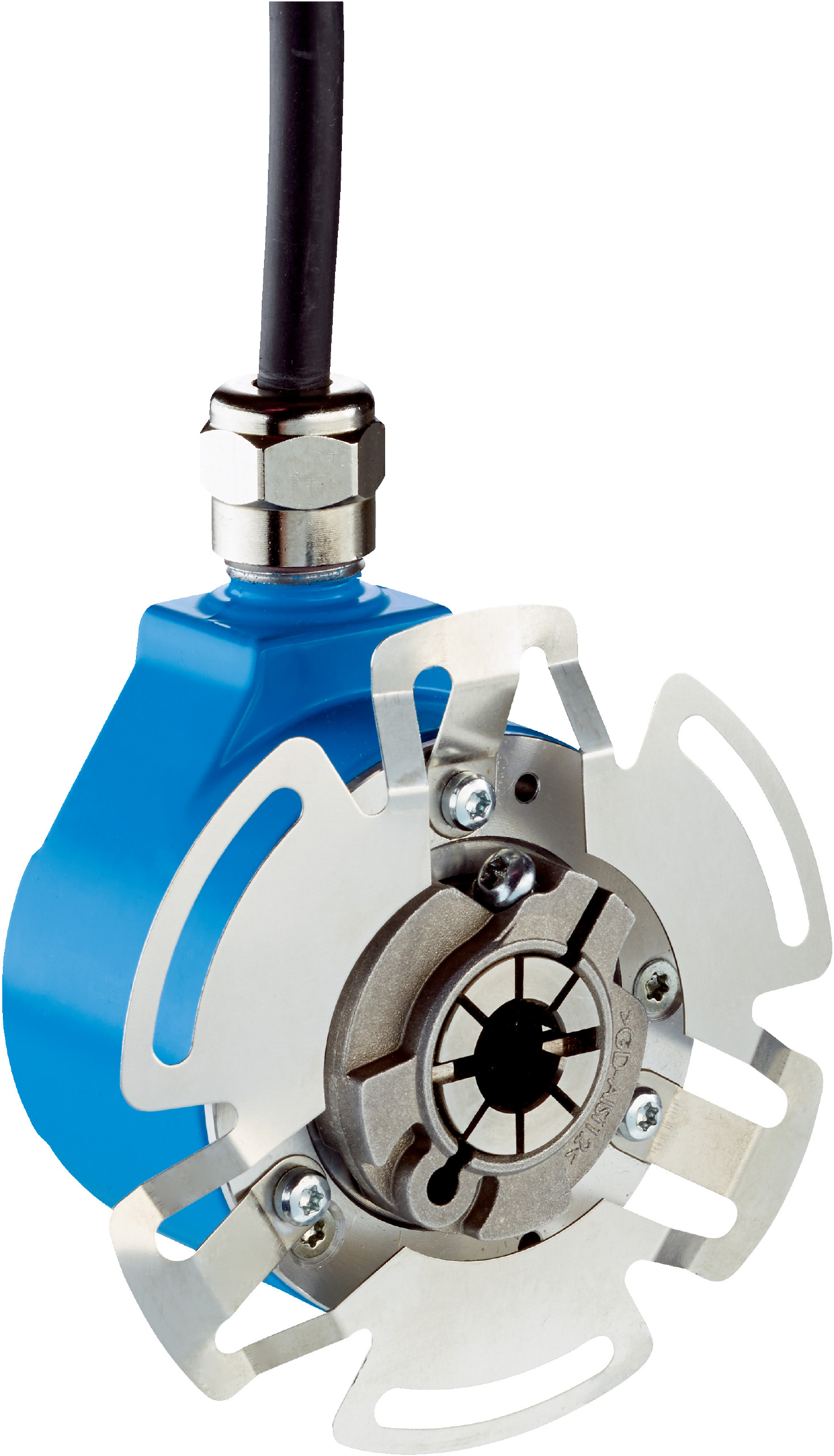

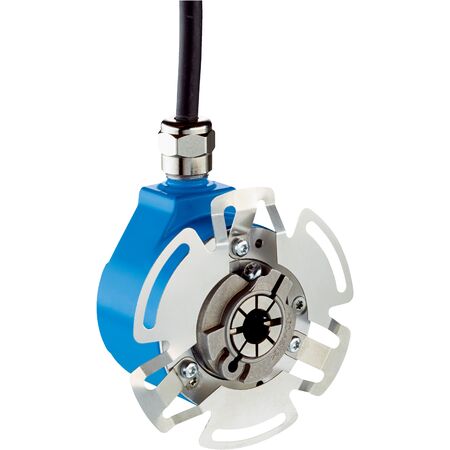

Incremental Rotary Encoder DFS22A-LCA1L002048 | 2048 Pulses/Rev | IP65/IP67 Rated | by SICK
The Incremental Rotary Encoder DFS22A-LCA1L002048 offers high precision with 2048 pulses per revolution, making it ideal for industrial automation and robotics. With a robust blind hollow shaft design and IP65/IP67 ratings for dust and water protection, this encoder ensures reliable performance in challenging environments. Perfect for applications requiring accurate motion control and position feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 2,048
- Measuring step deviation: ±0.008° pulses 100 to 10,000
- Error limits: ±0.03°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6-channel
- Output frequency: 820 kHz
- Load current: 30 mA
- Operating current: 50 mA (without load)
- Supply voltage: 4.5 to 5.5 V
- Connection type: Cable, 9-wire, radial, 1.5 m
- Mechanical design: Blind hollow shaft with 3/8″ front clamp
- Shaft material: Stainless steel 1.4305
- Housing material: Aluminum
- Start up torque: 0.8 Ncm at +20°C
- Operating torque: 0.6 Ncm at +20°C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.1 mm axial
- Operating speed: up to 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -30°C to +85°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.3 kg
Key Features
- High resolution with 2,048 pulses per revolution
- Robust mechanical design with blind hollow shaft and 3-point stator coupling
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Operating temperature range from -30°C to +85°C
- Short-circuit and reverse polarity protection
- Low start-up torque of 0.8 Ncm and operating torque of 0.6 Ncm
- High bearing lifetime of 3.6 x 10^9 revolutions
- Fast initialization time of 40 ms
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with incremental encoders and electrical safety standards.
Applications
- Industrial automation for precise rotational position measurement
- Robotics for accurate motion control
- Conveyor systems for speed and position feedback
- Machine tools requiring high-resolution angle measurement
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low operating current of 50 mA
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS22A-LCA1L002048 incremental encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
