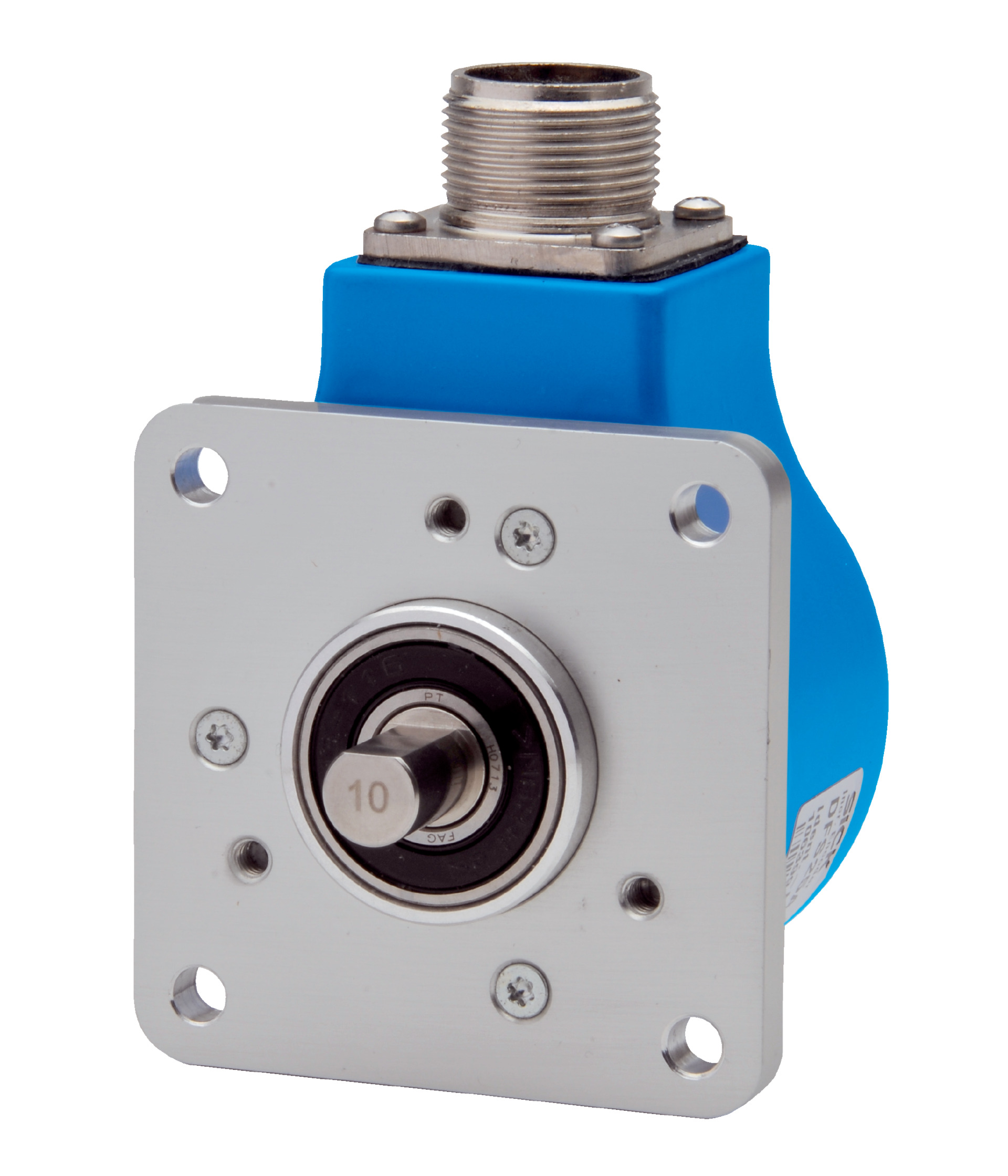

Incremental Rotary Encoder SICK DFS25A-A4D1F002048 | 2048 Pulses/Rev | IP65/IP67 Rated | by SICK
The SICK DFS25A-A4D1F002048 incremental rotary encoder delivers high precision with 2048 pulses per revolution, making it ideal for industrial automation and motion control applications. With a robust aluminum housing and stainless steel shaft, it offers IP65/IP67 protection against dust and water, ensuring durability in challenging environments. Designed for easy integration, this encoder is perfect for robotics, conveyor systems, and machine tool positioning.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 2048
- Measuring step deviation: ±0.008° pulses 100 to 10,000
- Error limits: ±0.03°
- Communication interface: Incremental, 6-channel, open collector
- Output frequency: 150 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, MS, 6-pin, radial
- Supply voltage: 8 to 30 V
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Start up torque: 0.5 Ncm at +20°C
- Operating torque: 0.3 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: up to 9,000 min⁻¹
- Moment of inertia of rotor: 15 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: up to 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -30°C to +85°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.4 kg
Key Features
- High resolution with 2048 pulses per revolution
- Solid shaft with square flange design
- Robust aluminum housing and stainless steel shaft
- IP65 rated on shaft side and IP67 on housing side for dust and water protection
- Operating temperature range from -30°C to +85°C
- Reverse polarity and short-circuit protection
- Low operating torque of 0.3 Ncm
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
- 6-channel incremental communication interface with open collector output
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with incremental encoders and industrial electrical standards to ensure proper connection and safety compliance.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool positioning and feedback
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of 0.7 W enhances energy efficiency
- Robust protection against environmental factors extends product life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS25A-A4D1F002048 incremental encoder is available for immediate purchase, ideal for industrial automation, safety monitoring, and precision motion control applications.
