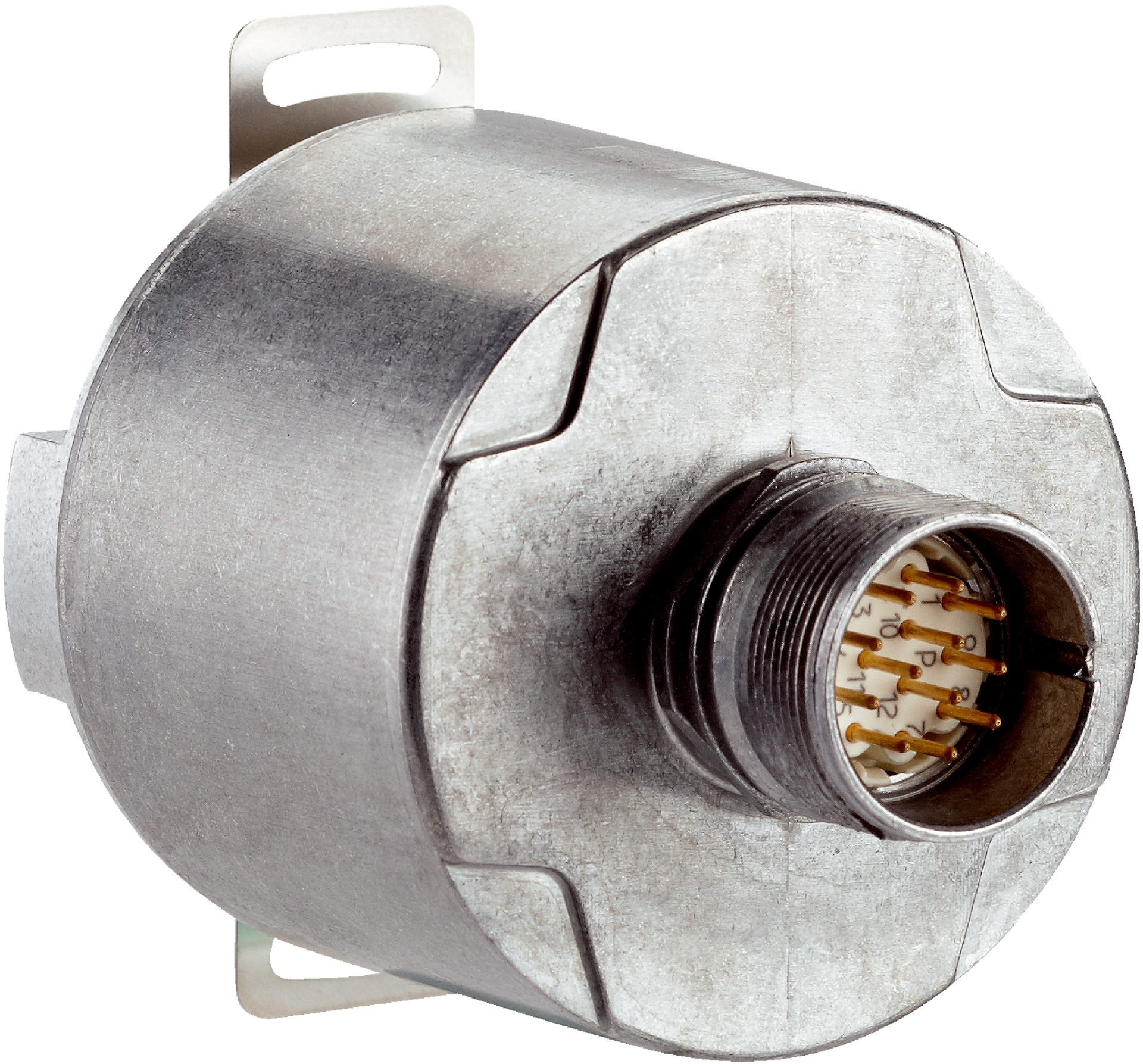

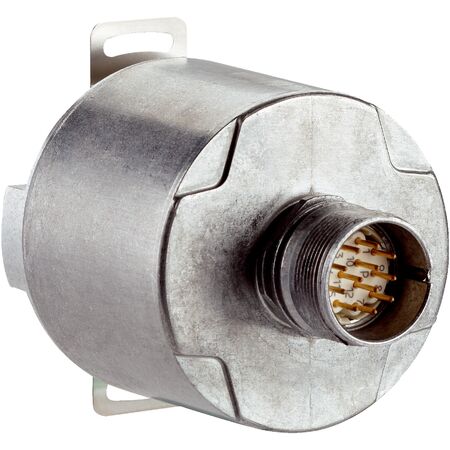

Incremental Rotary Encoder | 2048 Pulses/Rev | IP67 Rated | Blind Hollow Shaft Design | by SICK
The Incremental Rotary Encoder offers high precision with 2048 pulses per revolution, making it ideal for industrial automation and motion control applications. Designed for robustness, it features a blind hollow shaft and an IP67 rated housing, ensuring protection against dust and water. With a wide operating temperature range from -40°C to +100°C, this encoder is perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 2,048
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±0.008°
- Error limits: ±0.05°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Output frequency: ≤ 600 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Connection type: Male connector, M23, 12-pin, axial
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Mechanical design: Blind hollow shaft with 15 mm shaft diameter
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Start-up torque: 0.8 Ncm at +20°C
- Operating torque: 0.6 Ncm at +20°C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: -40°C to +100°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 70 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 30mm x 58mm
- Weight: 0.2 kg
Key Features
- High resolution with 2,048 pulses per revolution
- Robust blind hollow shaft mechanical design
- IP67 rated housing for protection against dust and water
- Operating temperature range from -40°C to +100°C
- Short-circuit and reverse polarity protection
- 6-channel incremental TTL/RS-422 communication interface
- Low start-up torque of 0.8 Ncm and operating torque of 0.6 Ncm
- Long bearing lifetime of 3.6 x 10^10 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Conveyor and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low operating current
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60B-BHUB02048 incremental encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
