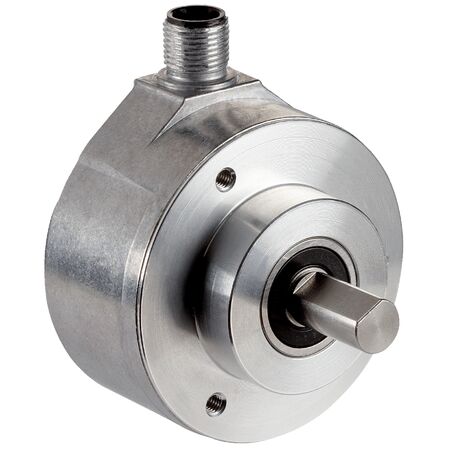

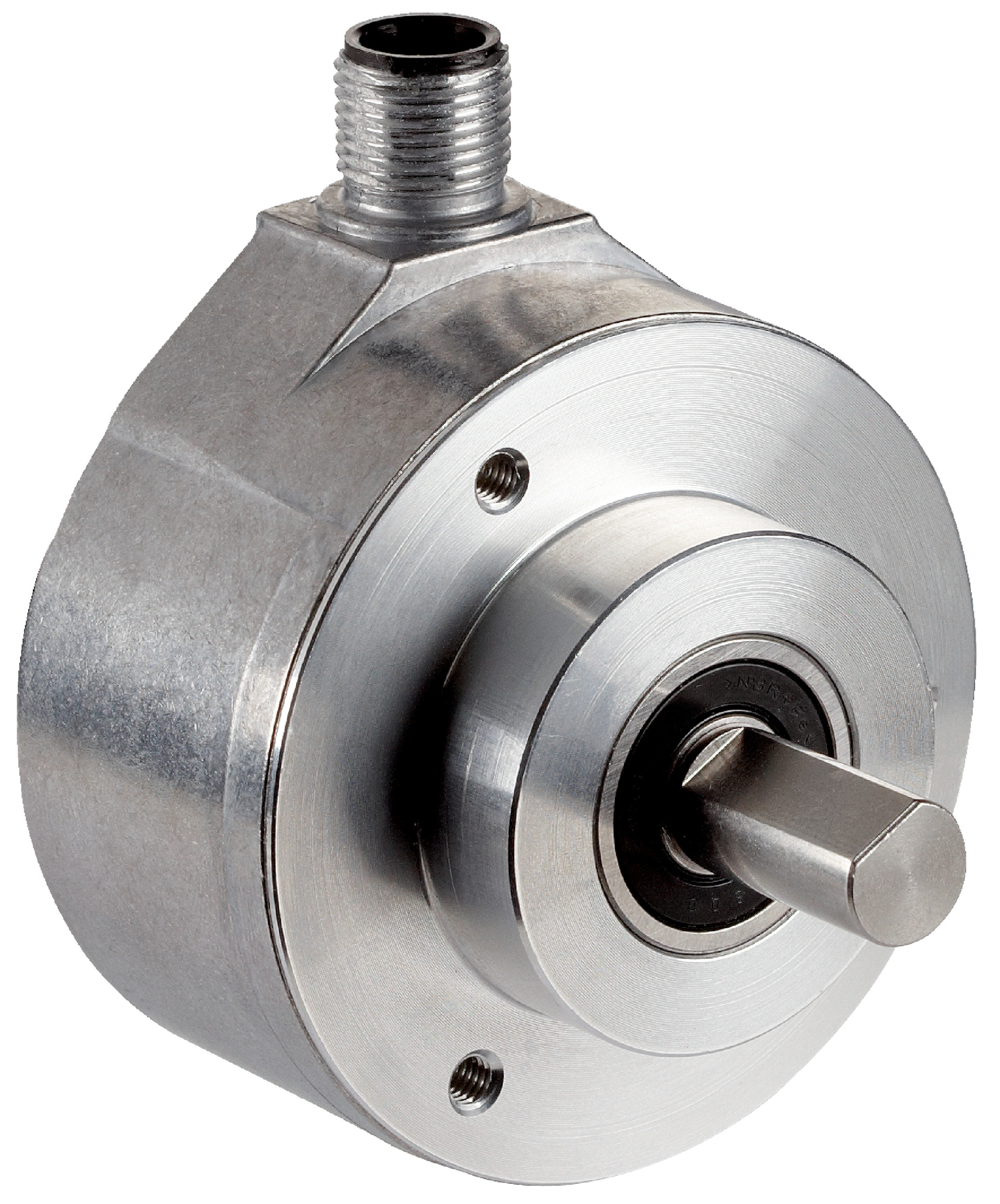

Incremental Rotary Encoder DFS60B-S4AC02048 | 2048 Pulses/Rev | IP67 Rated | Stainless Steel Shaft | by SICK
The Incremental Rotary Encoder DFS60B-S4AC02048 offers high precision with 2048 pulses per revolution, making it ideal for industrial automation and robotics applications. Built with a robust stainless steel shaft and IP67 rated housing, it ensures reliable performance in harsh environments. Perfect for precise position and speed measurement, this encoder is designed for seamless integration into machine tool feedback systems and conveyor monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Rotary Encoder DFS60B-S4AC02048 | 2048 Pulses/Rev | IP67 Rated | Stainless Steel Shaft | by SICK
Brand: SICK
SKU: 1055197
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 2,048
- Measuring step deviation: ±0.008°
- Error limits: ±0.05°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 600 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 to 5.5 V
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: 0.5 Ncm at +20 °C
- Operating torque: 0.3 Ncm at +20 °C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: -40 °C to +100 °C
- Resistance to shocks: 70 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 2,048 pulses per revolution
- Robust solid shaft with stainless steel material
- IP67 rated housing for protection against dust and water
- Low start-up torque of 0.5 Ncm
- High operating speed up to 9,000 min⁻¹
- Short-circuit protected outputs
- 6-channel incremental TTL/RS-422 communication interface
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for precise position and speed measurement
- Robotics for accurate motion control
- Conveyor systems monitoring
- Machine tool feedback systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60B-S4AC02048 Incremental Rotary Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
