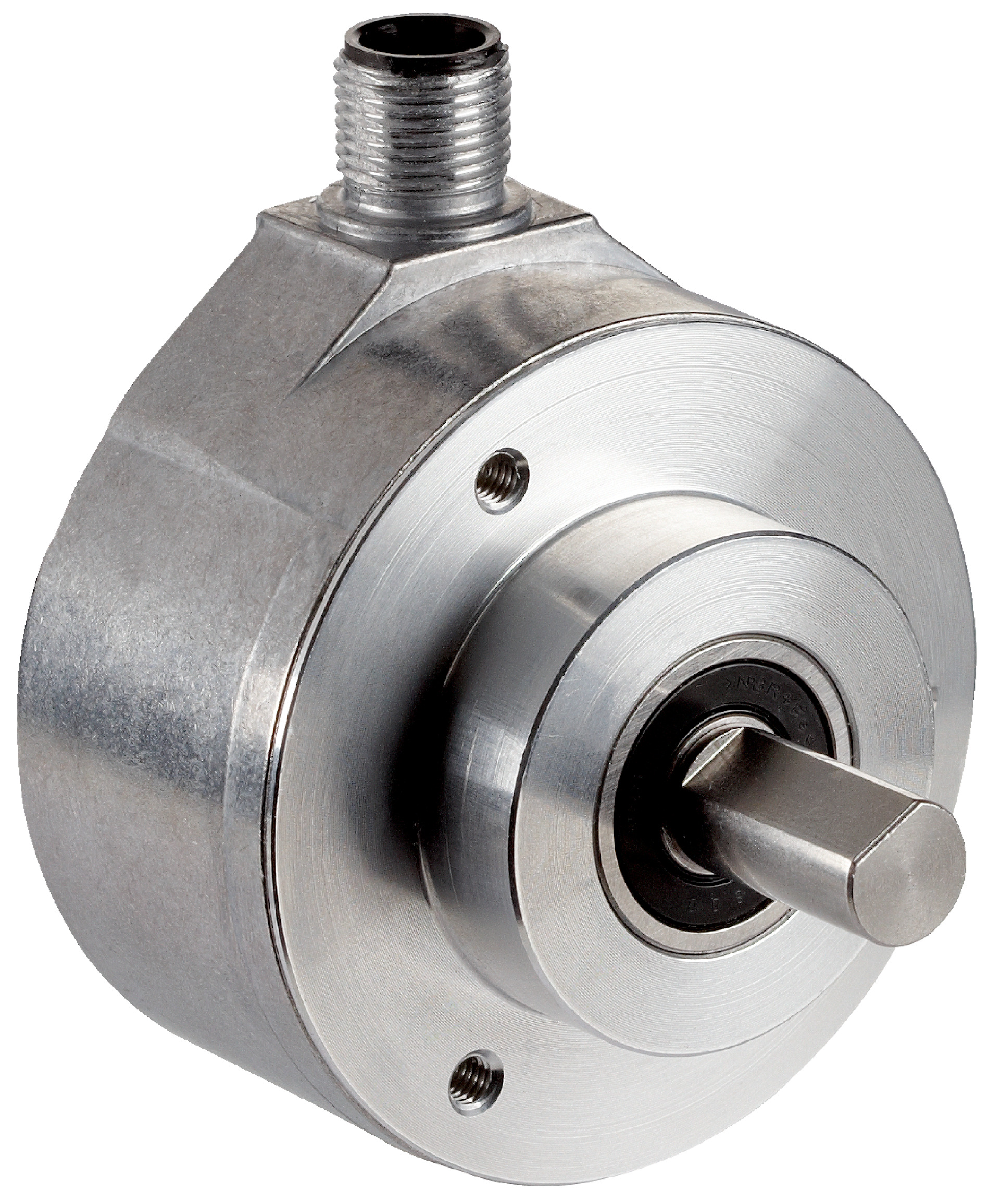

Incremental Rotary Encoder | 2048 PPR | IP67 & IP65 Rated | Solid Shaft Design | by SICK
The Incremental Rotary Encoder offers high precision with 2048 pulses per revolution, making it ideal for industrial automation and control systems. Designed for robust performance, it features a solid shaft with a face mount flange and an IP67 rated housing for dust and water protection. With a wide operating temperature range from 0°C to +85°C and low power consumption, this encoder is perfect for applications in robotics, conveyor systems, and machine tool positioning.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Rotary Encoder | 2048 PPR | IP67 & IP65 Rated | Solid Shaft Design | by SICK
Brand: SICK
SKU: 1051377
Alternatively Known As: Incremental rotary encoder, rotary encoder 2048 PPR, SICK DFS60 encoder, industrial encoder, incremental shaft encoder
Technical Specifications
- Pulses per revolution: 2048
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±0.15°
- Error limits: ±0.3°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 10 to 32 V
- Reference signal: 1, positioned at 90° electric, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: 0.5 Ncm at +20°C
- Operating torque: 0.3 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: 0°C to +85°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 50 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 58mm x 80mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 2048 pulses per revolution
- Solid shaft with face mount flange design
- Robust aluminum die cast housing and flange
- IP67 rated housing side and IP65 shaft side for dust and water protection
- Reverse polarity and short-circuit protection
- Operating temperature range from 0°C to +85°C
- Low power consumption of ≤ 0.5 W
- High operating speed up to 9,000 min⁻¹
- Long bearing lifetime of 3.6 x 10^10 revolutions
- 6-channel incremental HTL / Push pull communication interface
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool positioning and feedback
- Safety-related monitoring in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

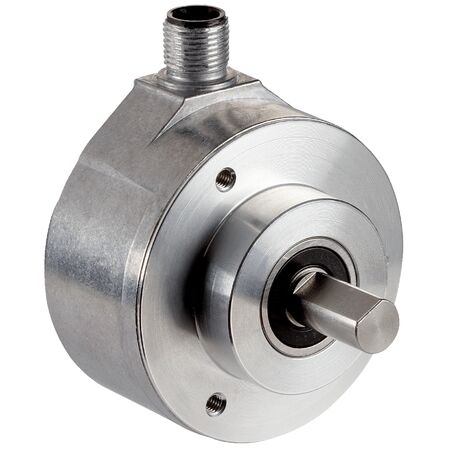

The SICK DFS60E-S4EC02048 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring precise position feedback.
