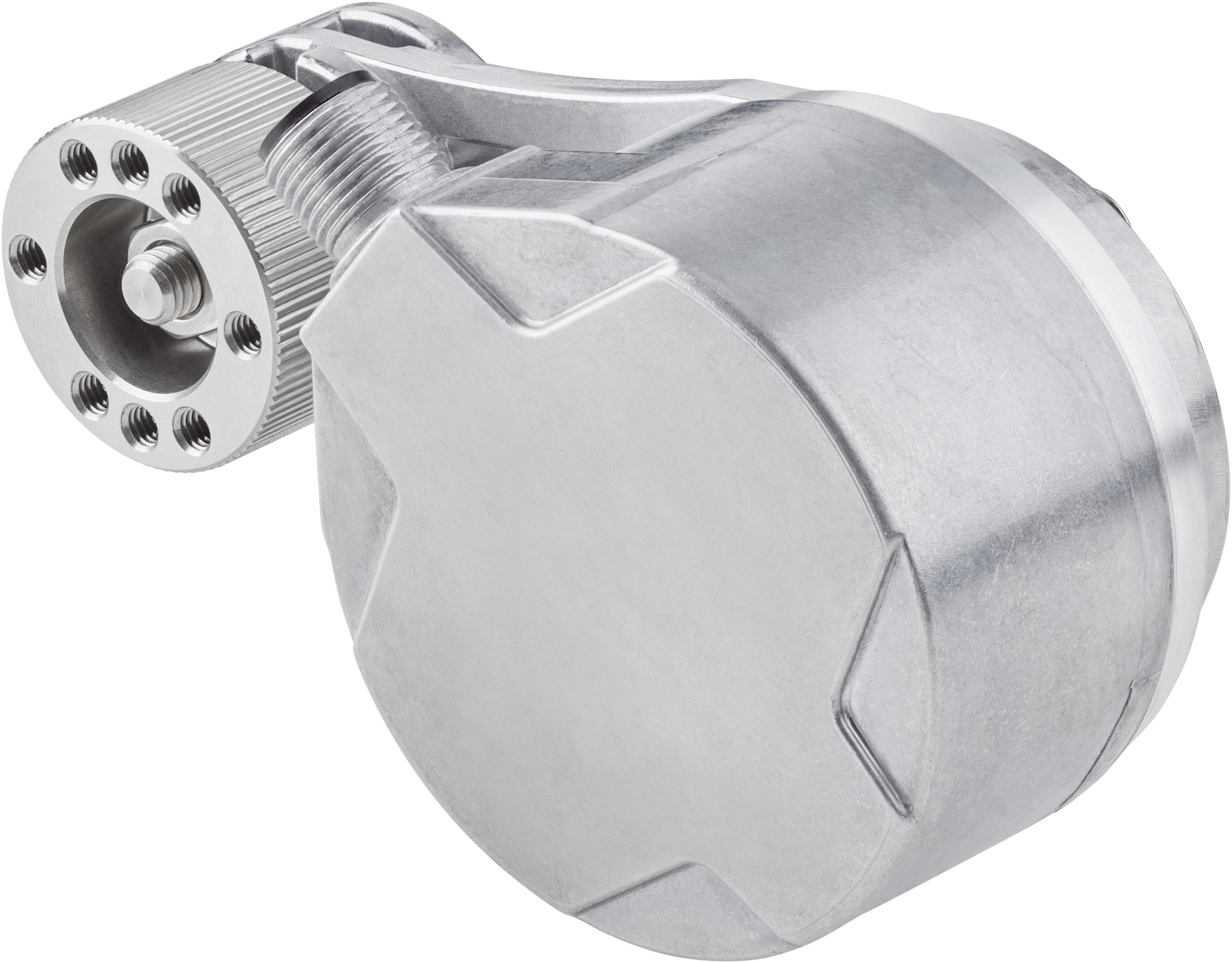

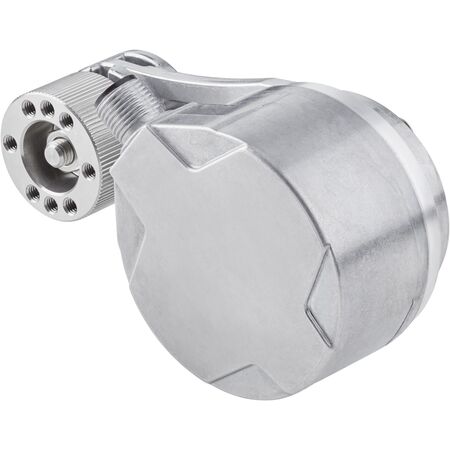

Incremental Rotary Encoder MWS075 | 2400 PPR | IP65 Rated | TTL/HTL Interface | by SICK
The MWS075 incremental rotary encoder delivers high precision with 2,400 pulses per revolution and a robust IP65 enclosure, making it perfect for industrial automation and motion control applications. Designed for reliability, it features a wide operating temperature range of -30°C to +90°C and built-in reverse polarity protection, ensuring optimal performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 2,400
- Measuring increment (resolution): 1 mm/pulse
- Repeatability: < 0.1 mm
- Communication interface: Incremental TTL / HTL
- Connection type: Male connector, M12, 8-pin
- Supply voltage: 4.75 V to 30 V
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Start-up torque: 1.2 Ncm
- Operating torque: 1.1 Ncm
- Operating speed: 1,500 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Spring arm travel: 14 mm at 14 N spring travel
- Recommended pretension: 15 N at 10 mm deflection
- Max working area for spring: ± 3 mm
- Service life of spring element: > 1.4 million cycles
- Mounting position: Preferably from above, from below possible
- Moment of inertia of rotor: 33 gcm²
- Enclosure rating: IP65
- Operating temperature range: -30°C to +90°C
- Storage temperature range: -40°C to +75°C
- Dimensions (H x L x W): 75mm x 50mm x 75mm
- Weight: 0.3 kg
Key Features
- High resolution with 2,400 pulses per revolution
- Incremental communication interface with TTL / HTL signals
- Robust IP65 rated enclosure for harsh environments
- Wide operating temperature range from -30°C to +90°C
- Low start-up torque of 1.2 Ncm and operating torque of 1.1 Ncm
- Reverse polarity and short-circuit protection
- Long bearing lifetime of 3.6 x 10^9 revolutions
- Spring arm with recommended pretension and deflection for precise measurement
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with incremental encoders and industrial automation equipment to ensure proper connection and calibration.
Applications
- Industrial automation for precise rotational measurement
- Machine tool positioning and control
- Conveyor and material handling systems
- Robotics and motion control applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low torque requirements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MWS075-00D142C102400 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
