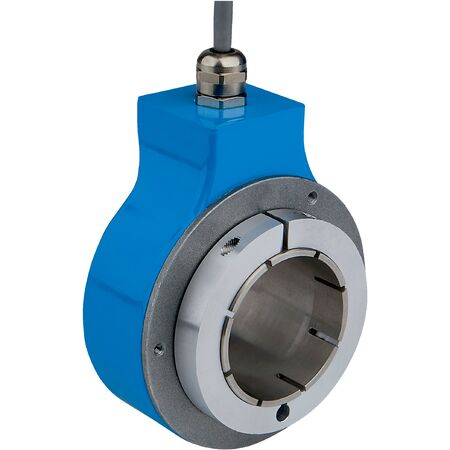

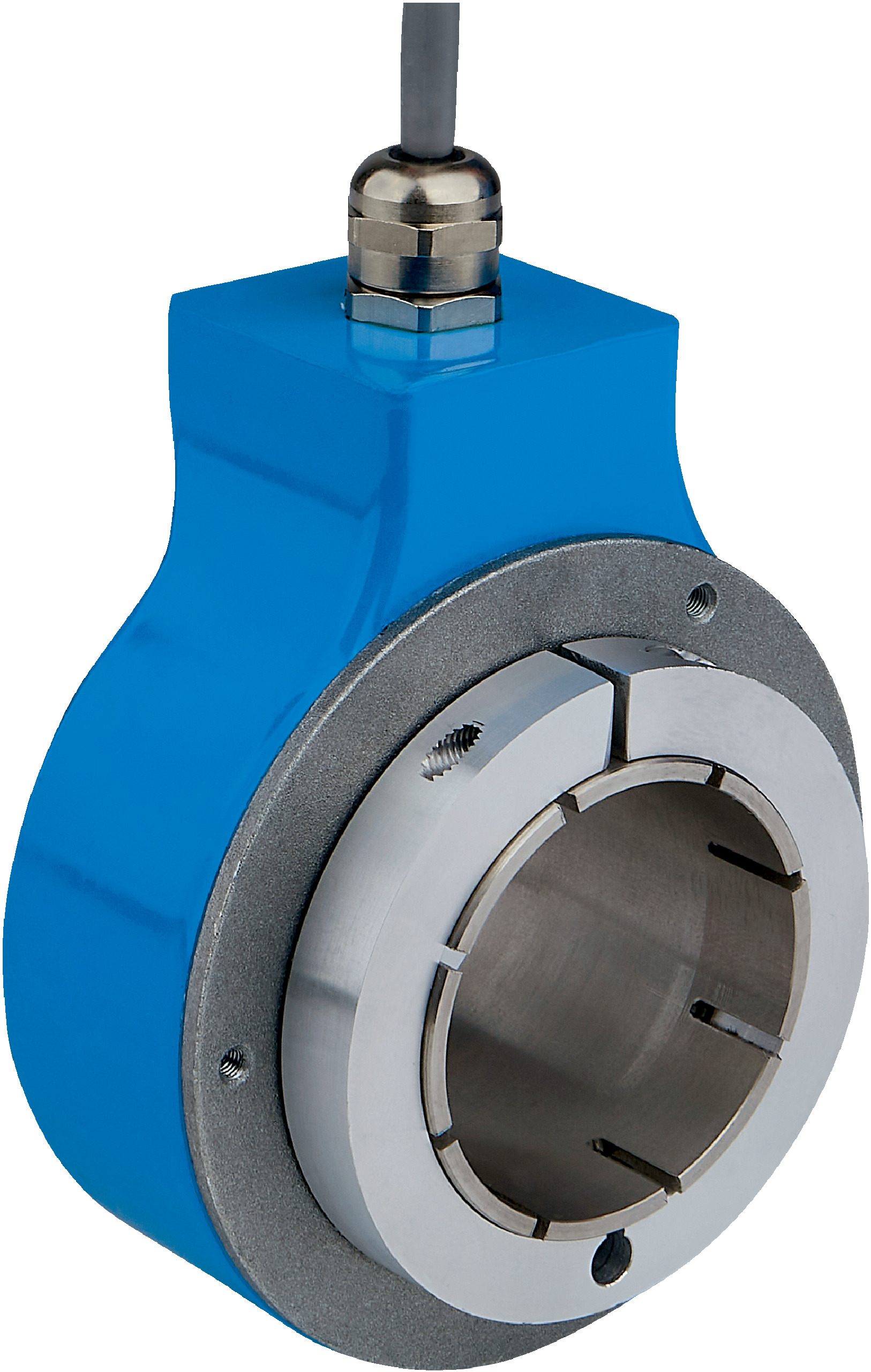

Incremental Rotary Encoder DGS80B-TYLK02500 | 2500 PPR | IP65 Rated | Fast Initialization | by SICK

BRAND: SICK
SKU: 1118752
$1,649.40 List price: $2,073.10
+ −
30 Days Return Delivery Options
The DGS80B-TYLK02500 incremental rotary encoder offers high resolution with 2500 pulses per revolution, making it ideal for precise position and speed measurement in industrial automation. With a robust design featuring an aluminum shaft and IP65 rated enclosure, it ensures reliable performance in harsh environments, while its fast initialization time under 50 ms enhances operational efficiency.
Technical Specifications
  • Pulses per revolution: 2,500
  • Measuring step: 90° electric/pulses per revolution
  • Measuring step deviation: ±15° electrical
  • Duty cycle: ≤ 0.5 ± 15%
  • Communication interface: Incremental HTL / Push pull
  • Number of signal channels: 6
  • Initialization time: < 50 ms
  • Output frequency: ≤ 300 kHz
  • Load current: ≤ 40 mA per channel
  • Operating current: ≤ 50 mA (without load)
  • Power consumption: ≤ 0.85 W
  • Connection type: Cable, 8-wire, radial, 1.5 m
  • Supply voltage: 5 to 30 V
  • Mechanical design: Through hollow shaft
  • Shaft diameter: 42 mm
  • Flange type: 1-sided stator coupling (accessory available)
  • Shaft material: Aluminum
  • Housing material: ZAMAC die cast
  • Shaft sealing ring material: FKM70
  • Start up torque: 6 Ncm (+20 °C)
  • Operating torque: 5 Ncm (+20 °C)
  • Permissible shaft loading: 160 N radial, 100 N axial
  • Operating speed: ≤ 3,600 min⁻¹
  • Moment of inertia of rotor: 877 gcm²
  • Bearing lifetime: 10^9 revolutions
  • EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
  • Enclosure rating: IP65 (IEC 60529)
  • Operating temperature range: -25 °C to +85 °C
  • Storage temperature range: -25 °C to +85 °C
  • Shock resistance: 250 g, 6 ms
  • Vibration resistance: 10 g, 5 Hz to 2,000 Hz
  • Dimensions (H x L x W): 80mm x 80mm x 80mm
  • Weight: 0.65 kg
Key Features
  • High resolution with 2,500 pulses per revolution
  • Incremental HTL / Push pull communication interface
  • 6-channel signal output with fast initialization time under 50 ms
  • Robust mechanical design with through hollow shaft and aluminum shaft
  • IP65 rated enclosure for dust and water resistance
  • Reverse polarity and short-circuit protection
  • Wide operating temperature range from -25°C to +85°C
  • High resistance to shock (250 g) and vibration (10 g)
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
  • Industrial automation and control systems
  • Position and speed measurement in machinery
  • Robotics and conveyor systems
  • Safety-related monitoring in manufacturing processes
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing waste
  • Low power consumption of ≤ 0.85 W supports energy efficiency
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy.

Available Now

The SICK DGS80B-TYLK02500 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
