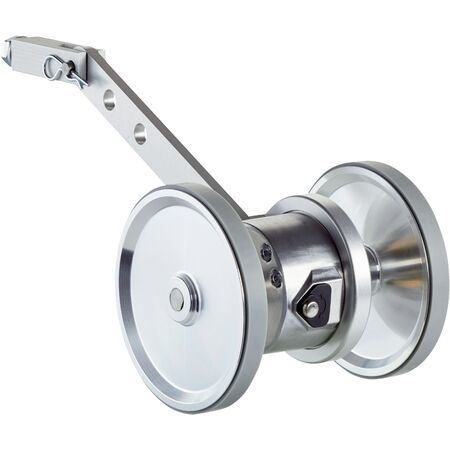

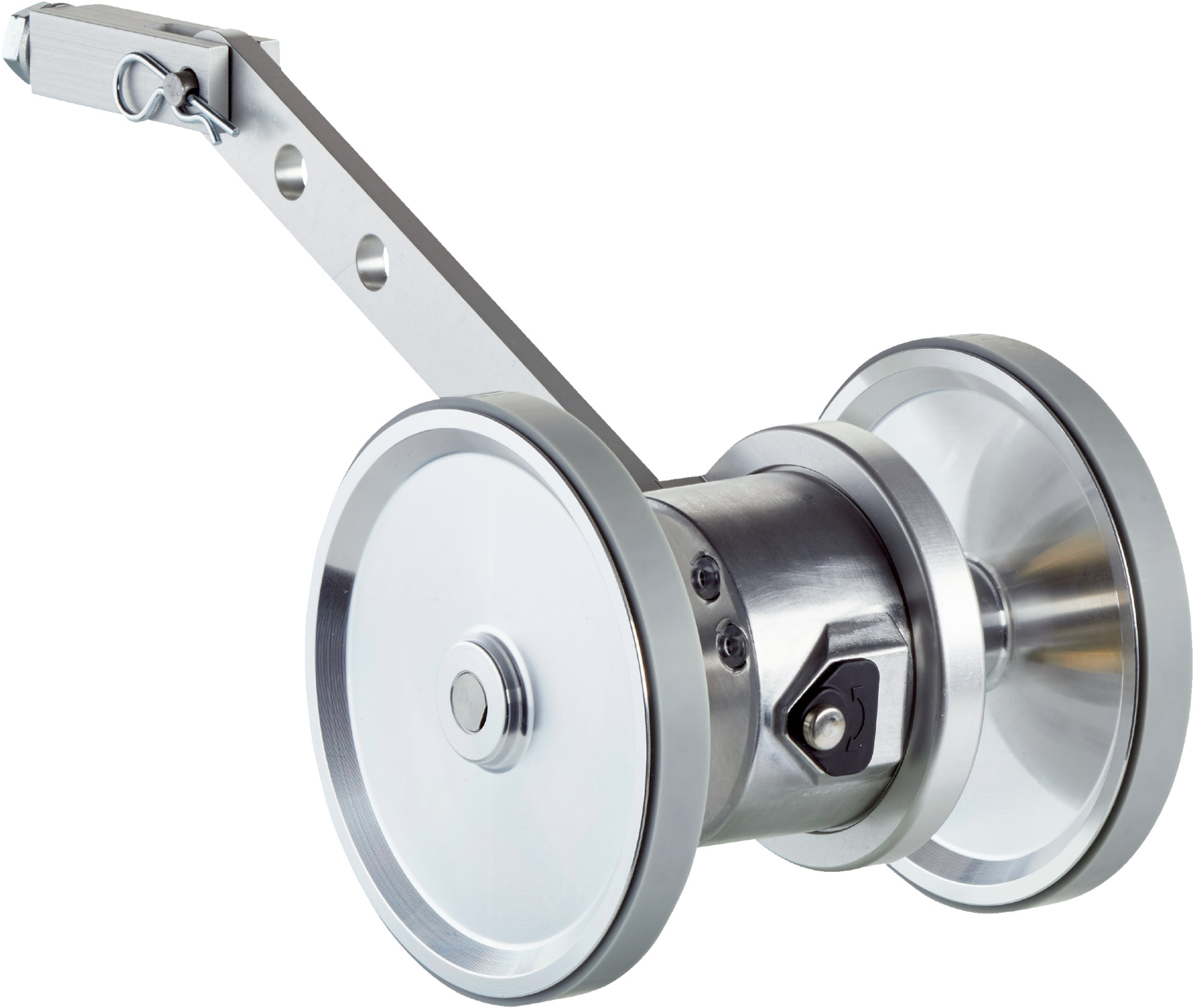

Incremental Rotary Encoder | 275 Years MTTFD | IP65 Rated | 12-Inch Measuring Wheel | by SICK
The Incremental Rotary Encoder is designed for high reliability in industrial automation, boasting an impressive MTTFD of 275 years and an IP65 rated enclosure for dust and water protection. With adjustable pulses per revolution from 1 to 1500, it’s perfect for applications like conveyor belt monitoring and robotics. Built for durability, this encoder ensures long-lasting performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 275 years (EN ISO 13849-1)
- Pulses per revolution: 1 to 1500
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse (type-dependent)
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18°
- Duty cycle: 0.5 ± 5%
- Initialization time: <5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data: DIP switch selectable output
- Operating power consumption (no load): 120 mA
- Connection type: Male M12 4-pin connector
- Output voltage and direction of rotation supported
- Power consumption max without load: ≤1.25 W
- Supply voltage: 4.75 V to 30 V
- Load current max per channel: ≤30 mA
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180° electric, gated with A
- Reverse polarity and short-circuit protection included
- Measuring wheel circumference: 12 inches
- Measuring wheel surface: Smooth plastic (urethane)
- Spring arm design: Over-belt yoke mount
- Start up torque: 0.5 Ncm
- Operating torque: 0.4 Ncm
- Operating speed: 1500 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Maximum travel/deflection of spring arm: 40 mm
- Recommended pretension: 20 mm
- Max permissible working area for spring: ±10 mm
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -30°C to +70°C
- Storage temperature range: -40°C to +75°C
- Shock resistance: 100 g (EN 60068-2-27)
- Vibration resistance: 30 g, 10 Hz to 2000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 80mm x 150mm x 120mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Adjustable pulses per revolution from 1 to 1500
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -30°C to +70°C
- Short-circuit and reverse polarity protection
- Measuring wheel circumference of 12 inches with smooth urethane surface
- Low startup torque of 0.5 Ncm and operating torque of 0.4 Ncm
- High bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with incremental encoders and industrial automation equipment to ensure proper connection and calibration.
Applications
- Industrial automation for position and speed measurement
- Conveyor belt monitoring
- Material handling systems
- Packaging machinery
- Robotics and motion control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1.25 W reduces energy usage
- Robust construction extends product lifecycle
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-D4KFKCDB incremental encoder is available for immediate purchase, ideal for industrial automation and material handling applications.
