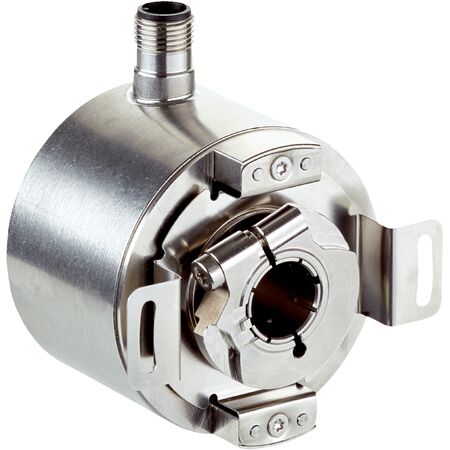

Incremental Rotary Encoder DFS60I-BJWC01000 | 300 Years MTTFD | IP67 Rated | Stainless Steel Housing | by SICK
The Incremental Rotary Encoder DFS60I-BJWC01000 offers high reliability with a mean time to failure of 300 years, making it ideal for industrial automation and control systems. With an IP67 rated enclosure and robust stainless steel construction, it ensures durability in harsh environments. This encoder features a 6-channel output and operates at speeds up to 6000 min⁻¹, providing precise rotational position and speed measurement for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Pulses per revolution: 1,000
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±0.008°
- Error limits: ±0.03°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- 0-set function: H-active, hardware pin controlled
- Initialization time: 30 ms
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Power consumption: ≤ 0.7 W (without load)
- Load resistance: ≥ 120 Ω
- Connection type: Male connector, M12, 12-pin, radial
- Supply voltage: 4.5 to 32 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity and short-circuit protection included
- Mechanical design: Blind hollow shaft with 5/8″ front clamp
- Shaft, flange, and housing material: Stainless steel V2A
- Start-up torque: 1 Ncm at +20°C
- Operating torque: 0.5 Ncm at +20°C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.01 mm axial
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40°C to +100°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 58mm x 100mm x 58mm
- Weight: 0.5 kg
Key Features
- High reliability with MTTFD of 300 years according to EN ISO 13849-1
- Incremental communication interface with HTL / Push pull signals
- 6-channel output with 0-set function via hardware pin
- Robust stainless steel V2A housing, flange, and shaft
- IP67 rated enclosure for protection against dust and water
- Operating temperature range from -40°C to +100°C
- Short-circuit and reverse polarity protection
- High operating speed up to 6000 min⁻¹
- Low start-up and operating torque
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Rotational position and speed measurement
- Machine tool feedback
- Robotics and conveyor systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption of ≤ 0.7 W reduces energy usage
- High reliability minimizes downtime and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DFS60I-BJWC01000 incremental encoder is available for immediate purchase, ideal for industrial automation and precise rotational measurement applications.
