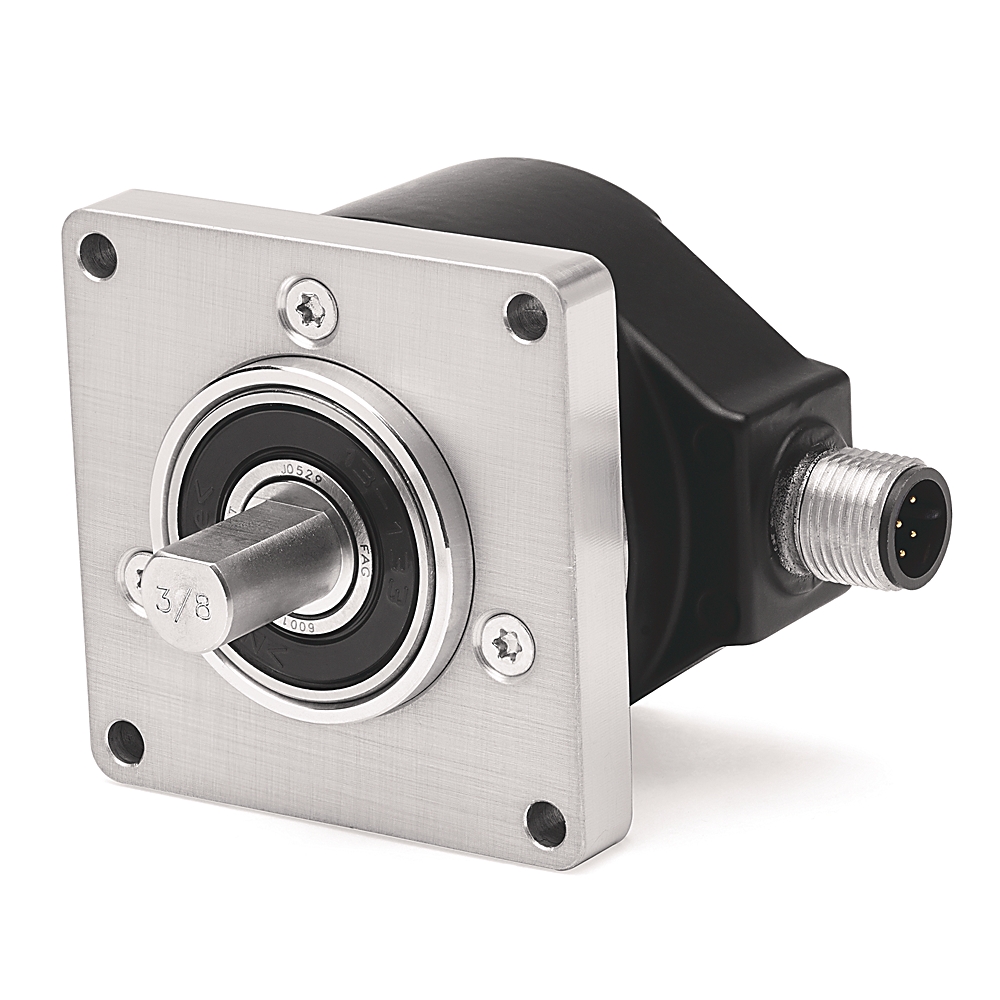

Incremental Rotary Encoder 3000 PPR 7 Pin Allen-Bradley
Allen-Bradley incremental rotary encoder featuring 7 pin, 3000. Ideal for position and speed feedback on rotating machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Incremental Encoder
- Flange: Standard square flange
- Shaft Diameter: 10 mm with flat
- Voltage: 8-30 V line driver
- Output: HTL (B-leads-A, CW, Z gated with BN)
- Connector: MS 7-pin with mating connector
- Resolution: 3000 pulses per revolution
- Dimensions (H x L x W): 50mm x 70mm x 50mm
- Weight: 0.3 kg
Key Features
- Standard square flange design
- 10 mm diameter shaft with flat
- 8-30 Volt line driver
- HTL (High Threshold Logic) output
- CW, Z gated with BN signals
- MS connector with 7-pin and mating connector
- 3000 pulses per revolution for high resolution
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and operation.
Applications
- Industrial automation and control systems
- Robotics and machinery requiring precise position feedback
- Conveyor systems and motor feedback applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Supports efficient motor control reducing energy consumption
- Durable design reduces replacement frequency and waste
Warranty Information
Radwell 2-year warranty included. Factory warranty does not apply.
Available Now
The Allen-Bradley 847TDL2CRE03000 Incremental Encoder is available for immediate purchase, ideal for industrial automation and control applications.
