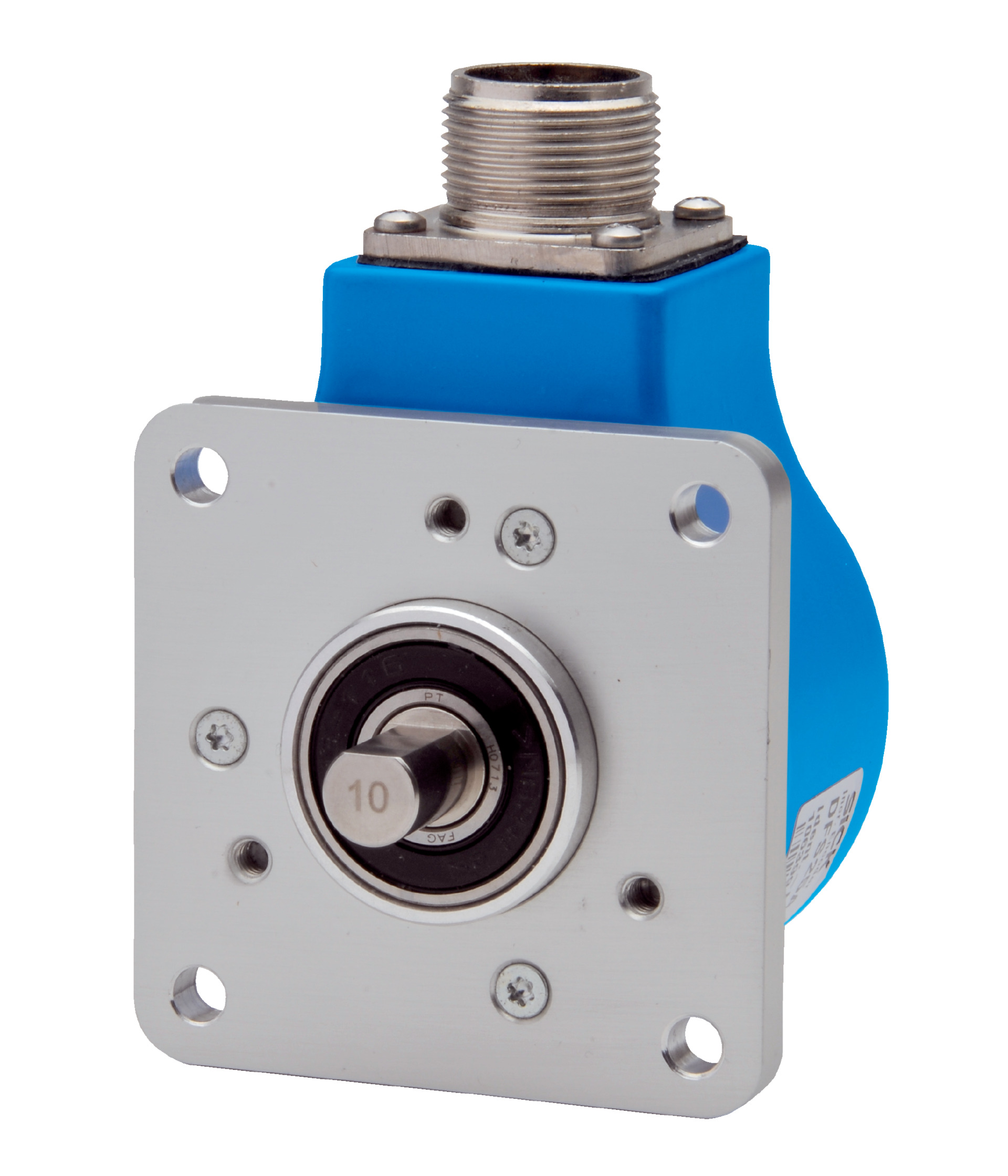

Incremental Rotary Encoder DFS25A-A2DAE003000 | 3000 Pulses/Rev | IP65/IP67 Rated | by SICK
The Incremental Rotary Encoder DFS25A-A2DAE003000 offers high precision with 3000 pulses per revolution, making it ideal for industrial automation and motion control applications. Built with a robust stainless steel shaft and aluminum housing, it features an IP65/IP67 rating for dust and water protection, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 3,000
- Measuring step deviation: ±0.008°
- Error limits: ±0.03°
- Communication interface: Incremental, Open Collector
- Number of signal channels: 6
- Output frequency: 150 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Supply voltage: 8 to 30 V
- Connection type: Male connector, MS, 7-pin, radial
- Shaft diameter: 3/8 inch with flat
- Shaft length: 19 mm
- Materials: Stainless steel shaft, aluminum flange and housing
- Start-up torque: 0.5 Ncm
- Operating torque: 0.3 Ncm
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: up to 9,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature: -30°C to +85°C
- Storage temperature: -40°C to +100°C
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 58mm x 80mm x 58mm
- Weight: 0.4 kg
Key Features
- High resolution with 3,000 pulses per revolution
- Robust solid shaft design with stainless steel shaft and aluminum housing
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Reverse polarity and short-circuit protection
- Operating temperature range from -30°C to +85°C
- Low start-up torque of 0.5 Ncm and operating torque of 0.3 Ncm
- 6-channel incremental communication interface with open collector output
- High mechanical durability with bearing lifetime of 3.6 billion revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor systems
- Machine tool feedback
- Position and speed sensing in manufacturing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of 0.7 W minimizes energy usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS25A-A2DAE003000 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
